Element diggs:PlanarObservationRepresentationType / diggs:layerTopIntersection
Namespace http://diggsml.org/schema-dev
Annotations

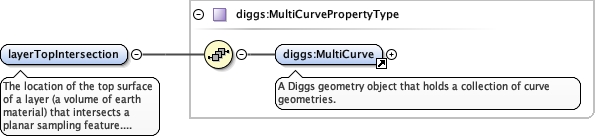

The location of the top surface of a layer (a volume of
earth material) that intersects a planar sampling feature. Depending
on how a planar sampling feature is encoded, there could be multiple
line strings that define this top surface.
Diagram
DiagramKernel_xsd_Element_diggs_MultiCurve.tmp#http___diggsml.org_schema-dev_MultiCurveKernel_xsd_Complex_Type_diggs_MultiCurvePropertyType.tmp#MultiCurvePropertyType
Type diggs:MultiCurvePropertyType
Properties
content complex
Model
Children diggs:MultiCurve
Instance

<diggs:layerTopIntersection xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:MultiCurve axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:MultiCurve>
</diggs:layerTopIntersection>
Source

<element name="layerTopIntersection" type="diggs:MultiCurvePropertyType">
  <annotation>
    <documentation>The location of the top surface of a layer (a volume of earth material) that intersects a planar sampling feature. Depending on how a planar sampling feature is encoded, there could be multiple line strings that define this top surface.</documentation>
  </annotation>
</element>
Element diggs:PlanarObservationRepresentationType / diggs:layerBaseIntersection
Namespace http://diggsml.org/schema-dev
Annotations

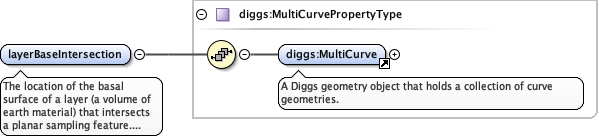

The location of the basal surface of a layer (a volume of
earth material) that intersects a planar sampling feature. Depending
on how a planar sampling feature is encoded, there could be multiple
line strings that define this basal surface.
Diagram
DiagramKernel_xsd_Element_diggs_MultiCurve.tmp#http___diggsml.org_schema-dev_MultiCurveKernel_xsd_Complex_Type_diggs_MultiCurvePropertyType.tmp#MultiCurvePropertyType
Type diggs:MultiCurvePropertyType
Properties
content complex
Model
Children diggs:MultiCurve
Instance

<diggs:layerBaseIntersection xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:MultiCurve axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:MultiCurve>
</diggs:layerBaseIntersection>
Source

<element name="layerBaseIntersection" type="diggs:MultiCurvePropertyType">
  <annotation>
    <documentation>The location of the basal surface of a layer (a volume of earth material) that intersects a planar sampling feature. Depending on how a planar sampling feature is encoded, there could be multiple line strings that define this basal surface.</documentation>
  </annotation>
</element>
Element diggs:PlanarObservationRepresentationType / diggs:representativeSurface
Namespace http://diggsml.org/schema-dev
Annotations

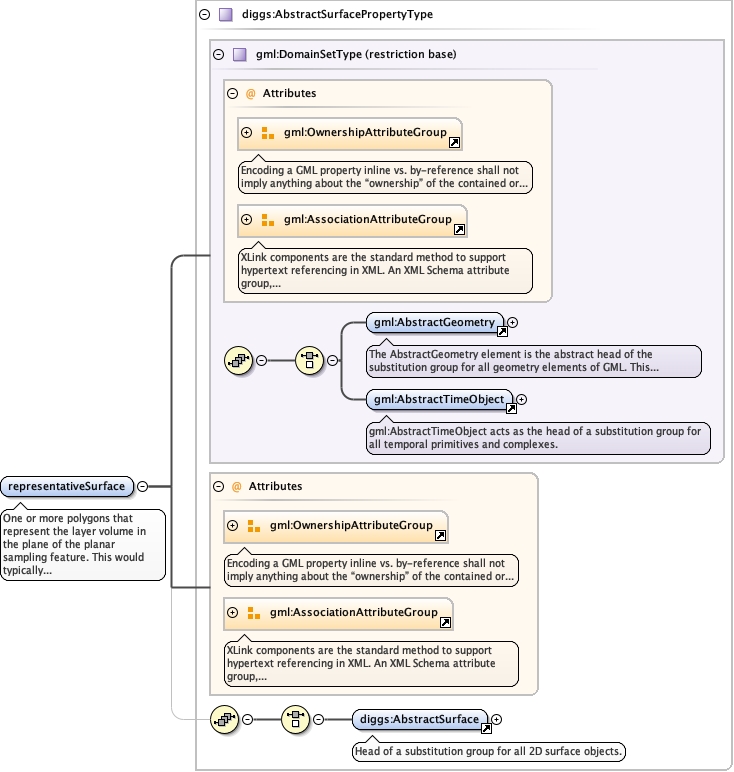

One or more polygons that represent the layer volume in
the plane of the planar sampling feature. This would typically be a
ring polygon with curve members that consist of the layer top
intersection, layer bottom intersection, and two edges that would
normally be at the lateral extent of the planar
feature.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupGeophysics_xsd_Element_diggs_AbstractSurface.tmp#http___diggsml.org_schema-dev_AbstractSurfaceGeophysics_xsd_Complex_Type_diggs_AbstractSurfacePropertyType.tmp#AbstractSurfacePropertyType
Type diggs:AbstractSurfacePropertyType
Type hierarchy
Properties
content complex
maxOccurs unbounded
Model
Children diggs:AbstractSurface
Instance

<diggs:representativeSurface xlink:role="" xlink:actuate="" xlink:show="" xlink:arcrole="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:AbstractSurface axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:AbstractSurface>
</diggs:representativeSurface>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="representativeSurface" type="diggs:AbstractSurfacePropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>One or more polygons that represent the layer volume in the plane of the planar sampling feature. This would typically be a ring polygon with curve members that consist of the layer top intersection, layer bottom intersection, and two edges that would normally be at the lateral extent of the planar feature.</documentation>
  </annotation>
</element>

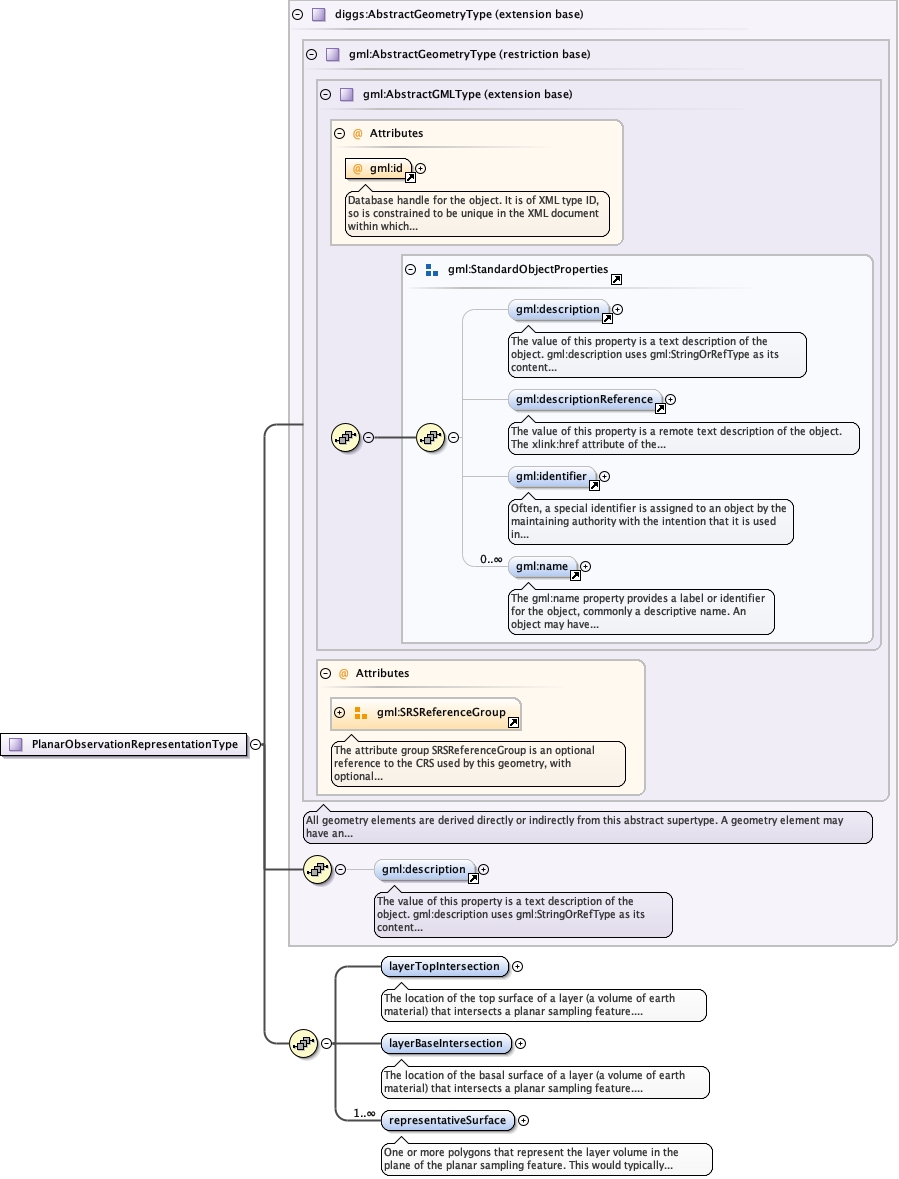

Complex Type diggs:PlanarObservationRepresentationType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometryTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptionKernel_xsd_Complex_Type_diggs_AbstractGeometryType.tmp#AbstractGeometryTypeKernel_xsd_Complex_Type_diggs_PlanarObservationRepresentationType.tmp#PlanarObservationRepresentationType_layerTopIntersectionKernel_xsd_Complex_Type_diggs_PlanarObservationRepresentationType.tmp#PlanarObservationRepresentationType_layerBaseIntersectionKernel_xsd_Complex_Type_diggs_PlanarObservationRepresentationType.tmp#PlanarObservationRepresentationType_representativeSurface
Type extension of diggs:AbstractGeometryType
Type hierarchy
Used by
Model
Children diggs:layerBaseIntersection, diggs:layerTopIntersection, diggs:representativeSurface, gml:description
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<complexType name="PlanarObservationRepresentationType">
  <complexContent>
    <extension base="diggs:AbstractGeometryType">
      <sequence>
        <element name="layerTopIntersection" type="diggs:MultiCurvePropertyType">
          <annotation>
            <documentation>The location of the top surface of a layer (a volume of earth material) that intersects a planar sampling feature. Depending on how a planar sampling feature is encoded, there could be multiple line strings that define this top surface.</documentation>
          </annotation>
        </element>
        <element name="layerBaseIntersection" type="diggs:MultiCurvePropertyType">
          <annotation>
            <documentation>The location of the basal surface of a layer (a volume of earth material) that intersects a planar sampling feature. Depending on how a planar sampling feature is encoded, there could be multiple line strings that define this basal surface.</documentation>
          </annotation>
        </element>
        <element name="representativeSurface" type="diggs:AbstractSurfacePropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>One or more polygons that represent the layer volume in the plane of the planar sampling feature. This would typically be a ring polygon with curve members that consist of the layer top intersection, layer bottom intersection, and two edges that would normally be at the lateral extent of the planar feature.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
