Element diggs:OrientationSystemType / diggs:orientationFeatureType
Namespace http://diggsml.org/schema-dev
Annotations

Selection from an enumerated list defining the type of
planar feature whose orientations are being described in this system
(eg. faults, bedding)
Diagram
DiagramKernel_xsd_Simple_Type_diggs_OrientationObsPropertyEnumType.tmp#OrientationObsPropertyEnumType
Type diggs:OrientationObsPropertyEnumType
Properties
content simple
Source

<element name="orientationFeatureType" type="diggs:OrientationObsPropertyEnumType">
  <annotation>
    <documentation>Selection from an enumerated list defining the type of planar feature whose orientations are being described in this system (eg. faults, bedding)</documentation>
  </annotation>
</element>
Element diggs:OrientationSystemType / diggs:orientationFeatureObservation
Namespace http://diggsml.org/schema-dev

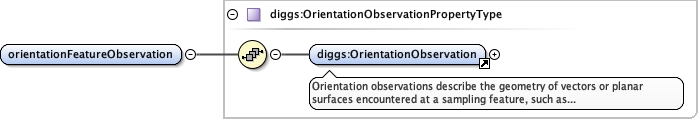

Diagram
DiagramKernel_xsd_Element_diggs_OrientationObservation.tmp#OrientationObservationKernel_xsd_Complex_Type_diggs_OrientationObservationPropertyType.tmp#OrientationObservationPropertyType
Type diggs:OrientationObservationPropertyType
Properties
content complex
maxOccurs unbounded
Model
Children diggs:OrientationObservation
Instance

<diggs:orientationFeatureObservation xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:OrientationObservation howDetermined="" gml:id="" xml:lang="" stratumCode="">{1,1}</diggs:OrientationObservation>
</diggs:orientationFeatureObservation>
Source

<element name="orientationFeatureObservation" type="diggs:OrientationObservationPropertyType" maxOccurs="unbounded"/>
Complex Type diggs:OrientationSystemType
Namespace http://diggsml.org/schema-dev

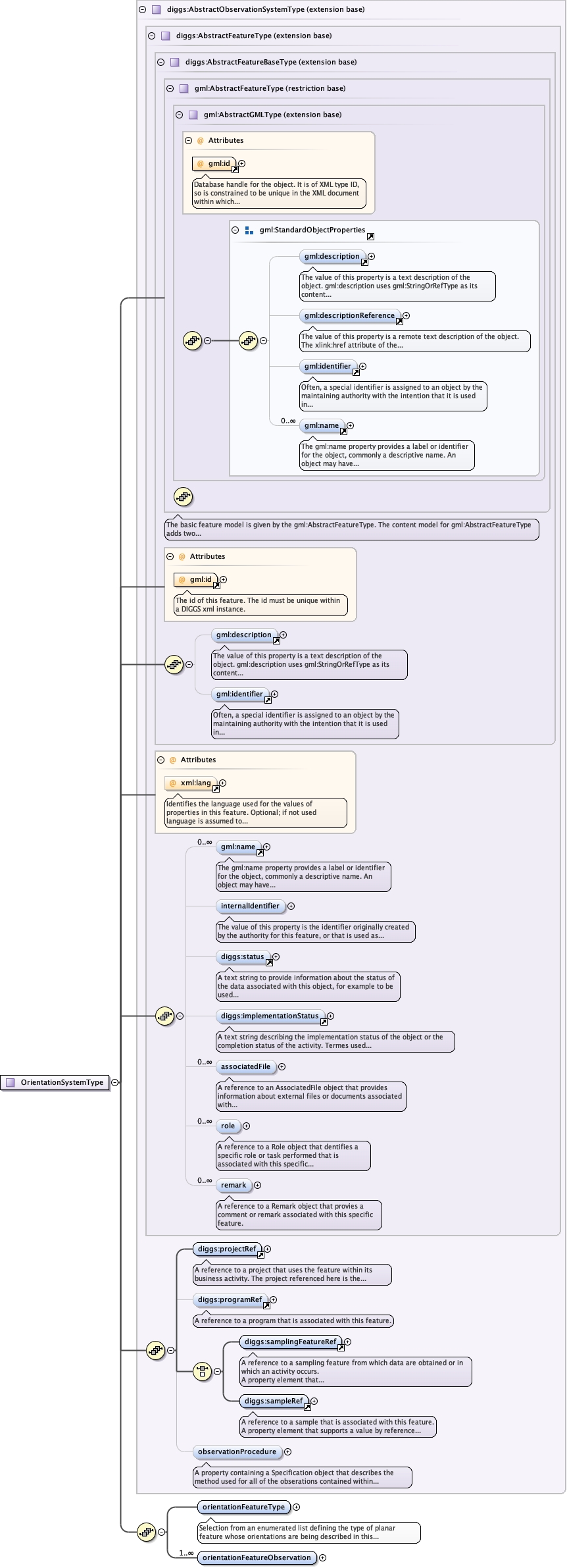

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Element_diggs_projectRef.tmp#projectRefKernel_xsd_Element_diggs_programRef.tmp#programRefKernel_xsd_Element_diggs_samplingFeatureRef.tmp#samplingFeatureRefKernel_xsd_Element_diggs_sampleRef.tmp#sampleRefKernel_xsd_Complex_Type_diggs_AbstractObservationSystemType.tmp#AbstractObservationSystemType_observationProcedureKernel_xsd_Complex_Type_diggs_AbstractObservationSystemType.tmp#AbstractObservationSystemTypeKernel_xsd_Complex_Type_diggs_OrientationSystemType.tmp#OrientationSystemType_orientationFeatureTypeKernel_xsd_Complex_Type_diggs_OrientationSystemType.tmp#OrientationSystemType_orientationFeatureObservation
Type extension of diggs:AbstractObservationSystemType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:observationProcedure, diggs:orientationFeatureObservation, diggs:orientationFeatureType, diggs:programRef, diggs:projectRef, diggs:remark, diggs:role, diggs:sampleRef, diggs:samplingFeatureRef, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="OrientationSystemType">
  <complexContent>
    <extension base="diggs:AbstractObservationSystemType">
      <sequence>
        <element name="orientationFeatureType" type="diggs:OrientationObsPropertyEnumType">
          <annotation>
            <documentation>Selection from an enumerated list defining the type of planar feature whose orientations are being described in this system (eg. faults, bedding)</documentation>
          </annotation>
        </element>
        <element name="orientationFeatureObservation" type="diggs:OrientationObservationPropertyType" maxOccurs="unbounded"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
