Element diggs:DiscontinuityObservationType / diggs:fractureObservation
Namespace http://diggsml.org/schema-dev

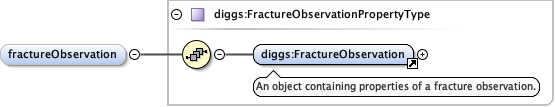

Diagram
DiagramKernel_xsd_Element_diggs_FractureObservation.tmp#FractureObservationKernel_xsd_Complex_Type_diggs_FractureObservationPropertyType.tmp#FractureObservationPropertyType
Type diggs:FractureObservationPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:FractureObservation
Instance

<diggs:fractureObservation xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:FractureObservation howDetermined="" gml:id="" xml:lang="">{1,1}</diggs:FractureObservation>
</diggs:fractureObservation>
Source

<element name="fractureObservation" type="diggs:FractureObservationPropertyType" minOccurs="0"/>
Element diggs:DiscontinuityObservationType / diggs:fractureSpacing
Namespace http://diggsml.org/schema-dev

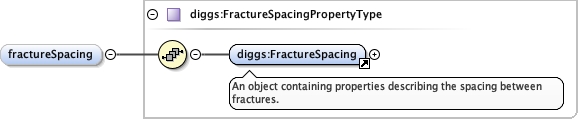

Diagram
DiagramKernel_xsd_Element_diggs_FractureSpacing.tmp#FractureSpacingKernel_xsd_Complex_Type_diggs_FractureSpacingPropertyType.tmp#FractureSpacingPropertyType
Type diggs:FractureSpacingPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:FractureSpacing
Instance

<diggs:fractureSpacing xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:FractureSpacing gml:id="" xml:lang="">{1,1}</diggs:FractureSpacing>
</diggs:fractureSpacing>
Source

<element name="fractureSpacing" minOccurs="0" type="diggs:FractureSpacingPropertyType"/>
Complex Type diggs:DiscontinuityObservationType
Namespace http://diggsml.org/schema-dev
Annotations

A discontinuity or zone of discontinuities

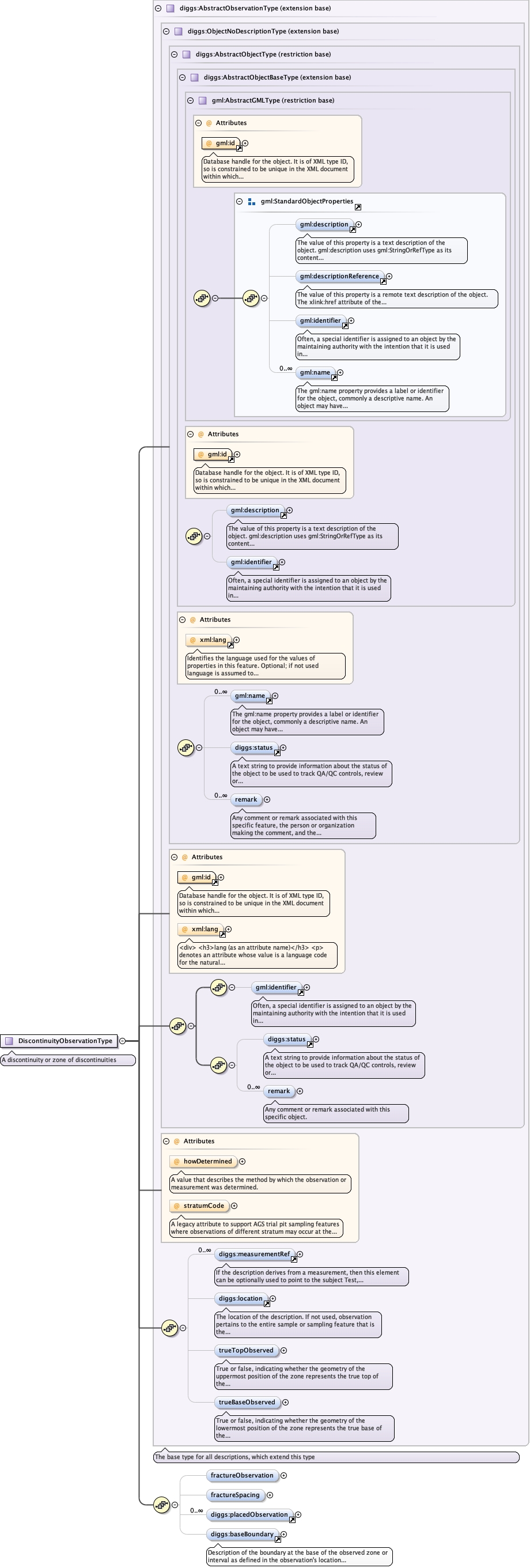

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idxml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_ObjectNoDescriptionType.tmp#ObjectNoDescriptionType_remarkKernel_xsd_Complex_Type_diggs_ObjectNoDescriptionType.tmp#ObjectNoDescriptionTypeKernel_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationType_howDeterminedKernel_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationType_stratumCodeKernel_xsd_Element_diggs_measurementRef.tmp#measurementRefKernel_xsd_Element_diggs_location.tmp#locationKernel_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationType_trueTopObservedKernel_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationType_trueBaseObservedKernel_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationTypeKernel_xsd_Complex_Type_diggs_DiscontinuityObservationType.tmp#DiscontinuityObservationType_fractureObservationKernel_xsd_Complex_Type_diggs_DiscontinuityObservationType.tmp#DiscontinuityObservationType_fractureSpacingKernel_xsd_Element_diggs_placedObservation_1.tmp#http___diggsml.org_schema-dev_placedObservationKernel_xsd_Element_diggs_baseBoundary.tmp#baseBoundary
Type extension of diggs:AbstractObservationType
Type hierarchy
Used by
Model
Children diggs:baseBoundary, diggs:fractureObservation, diggs:fractureSpacing, diggs:location, diggs:measurementRef, diggs:placedObservation, diggs:remark, diggs:status, diggs:trueBaseObserved, diggs:trueTopObserved, gml:identifier
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
howDetermined diggs:DescriptorMethodEnumType optional
A value that describes the method by which the observation or measurement
was determined.
stratumCode string optional
A legacy attribute to support AGS trial pit sampling features
where observations of different stratum may occur at the same depth in a
pit. It is a reference letter or number whose sole purpose is to link
the stratum shown on a face sketch of the trial pit to the specific
observation.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="DiscontinuityObservationType">
  <annotation>
    <documentation>A discontinuity or zone of discontinuities</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObservationType">
      <sequence>
        <element name="fractureObservation" type="diggs:FractureObservationPropertyType" minOccurs="0"/>
        <element name="fractureSpacing" minOccurs="0" type="diggs:FractureSpacingPropertyType"/>
        <element maxOccurs="unbounded" minOccurs="0" ref="diggs:placedObservation"/>
        <element minOccurs="0" ref="diggs:baseBoundary">
          <annotation>
            <documentation>Description of the boundary at the base of the observed zone or interval as defined in the observation's location property</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
