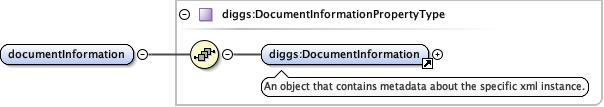

Element diggs:DiggsType / diggs:documentInformation
Namespace http://diggsml.org/schema-dev
Diagram
DiagramKernel_xsd_Element_diggs_DocumentInformation.tmp#DocumentInformationKernel_xsd_Complex_Type_diggs_DocumentInformationPropertyType.tmp#DocumentInformationPropertyType
Type diggs:DocumentInformationPropertyType
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children diggs:DocumentInformation
Instance

<diggs:documentInformation xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:DocumentInformation gml:id="">{1,1}</diggs:DocumentInformation>
</diggs:documentInformation>
Source

<element name="documentInformation" type="diggs:DocumentInformationPropertyType" minOccurs="1" maxOccurs="1"/>
Element diggs:DiggsType / diggs:project
Namespace http://diggsml.org/schema-dev
Diagram
DiagramKernel_xsd_Element_diggs_AbstractProject.tmp#AbstractProjectKernel_xsd_Complex_Type_diggs_ProjectPropertyType.tmp#ProjectPropertyType
Type diggs:ProjectPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AbstractProject
Instance

<diggs:project xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:AbstractProject gml:id="" xml:lang="">{1,1}</diggs:AbstractProject>
</diggs:project>
Source

<element name="project" type="diggs:ProjectPropertyType" minOccurs="0" maxOccurs="unbounded"/>

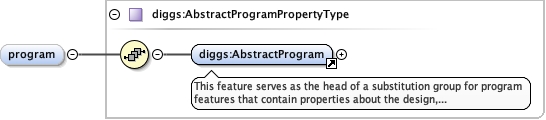

Element diggs:DiggsType / diggs:program
Namespace http://diggsml.org/schema-dev
Diagram
DiagramKernel_xsd_Element_diggs_AbstractProgram.tmp#AbstractProgramKernel_xsd_Complex_Type_diggs_AbstractProgramPropertyType.tmp#AbstractProgramPropertyType
Type diggs:AbstractProgramPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AbstractProgram
Instance

<diggs:program xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:AbstractProgram gml:id="" xml:lang="">{1,1}</diggs:AbstractProgram>
</diggs:program>
Source

<element minOccurs="0" name="program" type="diggs:AbstractProgramPropertyType" maxOccurs="unbounded"/>

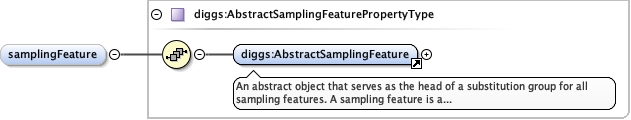

Element diggs:DiggsType / diggs:samplingFeature
Namespace http://diggsml.org/schema-dev
Diagram
DiagramKernel_xsd_Element_diggs_AbstractSamplingFeature.tmp#AbstractSamplingFeatureKernel_xsd_Complex_Type_diggs_AbstractSamplingFeaturePropertyType.tmp#AbstractSamplingFeaturePropertyType
Type diggs:AbstractSamplingFeaturePropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AbstractSamplingFeature
Instance

<diggs:samplingFeature xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:AbstractSamplingFeature gml:id="" xml:lang="">{1,1}</diggs:AbstractSamplingFeature>
</diggs:samplingFeature>
Source

<element minOccurs="0" name="samplingFeature" type="diggs:AbstractSamplingFeaturePropertyType" maxOccurs="unbounded"/>
Element diggs:DiggsType / diggs:samplingActivity
Namespace http://diggsml.org/schema-dev
Diagram
DiagramKernel_xsd_Element_diggs_AbstractSamplingActivity.tmp#AbstractSamplingActivityKernel_xsd_Complex_Type_diggs_SamplingActivityPropertyType.tmp#SamplingActivityPropertyType
Type diggs:SamplingActivityPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AbstractSamplingActivity
Instance

<diggs:samplingActivity xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:AbstractSamplingActivity gml:id="" xml:lang="">{1,1}</diggs:AbstractSamplingActivity>
</diggs:samplingActivity>
Source

<element minOccurs="0" name="samplingActivity" type="diggs:SamplingActivityPropertyType" maxOccurs="unbounded"/>

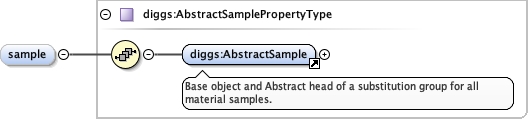

Element diggs:DiggsType / diggs:sample
Namespace http://diggsml.org/schema-dev
Diagram
DiagramKernel_xsd_Element_diggs_AbstractSample.tmp#AbstractSampleKernel_xsd_Complex_Type_diggs_AbstractSamplePropertyType.tmp#AbstractSamplePropertyType
Type diggs:AbstractSamplePropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AbstractSample
Instance

<diggs:sample xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:AbstractSample gml:id="" xml:lang="">{1,1}</diggs:AbstractSample>
</diggs:sample>
Source

<element name="sample" type="diggs:AbstractSamplePropertyType" minOccurs="0" maxOccurs="unbounded"/>

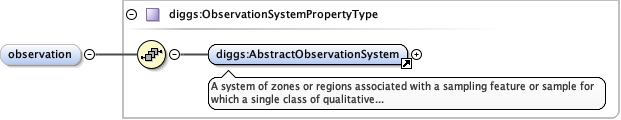

Element diggs:DiggsType / diggs:observation
Namespace http://diggsml.org/schema-dev
Diagram
DiagramKernel_xsd_Element_diggs_AbstractObservationSystem.tmp#AbstractObservationSystemKernel_xsd_Complex_Type_diggs_ObservationSystemPropertyType.tmp#ObservationSystemPropertyType
Type diggs:ObservationSystemPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AbstractObservationSystem
Instance

<diggs:observation xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:AbstractObservationSystem gml:id="" xml:lang="">{1,1}</diggs:AbstractObservationSystem>
</diggs:observation>
Source

<element minOccurs="0" name="observation" type="diggs:ObservationSystemPropertyType" maxOccurs="unbounded"/>

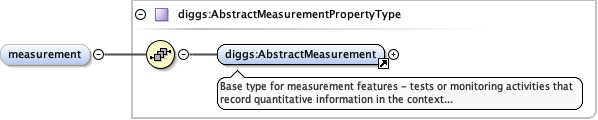

Element diggs:DiggsType / diggs:measurement
Namespace http://diggsml.org/schema-dev
Diagram
DiagramKernel_xsd_Element_diggs_AbstractMeasurement.tmp#AbstractMeasurementKernel_xsd_Complex_Type_diggs_AbstractMeasurementPropertyType.tmp#AbstractMeasurementPropertyType
Type diggs:AbstractMeasurementPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AbstractMeasurement
Instance

<diggs:measurement xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:AbstractMeasurement gml:id="" xml:lang="">{1,1}</diggs:AbstractMeasurement>
</diggs:measurement>
Source

<element minOccurs="0" name="measurement" type="diggs:AbstractMeasurementPropertyType" maxOccurs="unbounded"/>

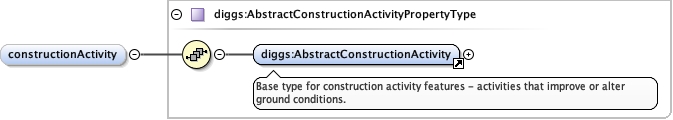

Element diggs:DiggsType / diggs:constructionActivity
Namespace http://diggsml.org/schema-dev
Diagram
DiagramKernel_xsd_Element_diggs_AbstractConstructionActivity.tmp#AbstractConstructionActivityKernel_xsd_Complex_Type_diggs_AbstractConstructionActivityPropertyType.tmp#AbstractConstructionActivityPropertyType
Type diggs:AbstractConstructionActivityPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AbstractConstructionActivity
Instance

<diggs:constructionActivity xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:AbstractConstructionActivity gml:id="" xml:lang="">{1,1}</diggs:AbstractConstructionActivity>
</diggs:constructionActivity>
Source

<element minOccurs="0" name="constructionActivity" type="diggs:AbstractConstructionActivityPropertyType" maxOccurs="unbounded"/>

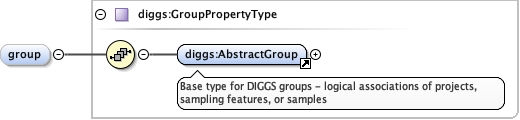

Element diggs:DiggsType / diggs:group
Namespace http://diggsml.org/schema-dev
Diagram
DiagramKernel_xsd_Element_diggs_AbstractGroup.tmp#AbstractGroupKernel_xsd_Complex_Type_diggs_GroupPropertyType.tmp#GroupPropertyType
Type diggs:GroupPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AbstractGroup
Instance

<diggs:group xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:AbstractGroup gml:id="" xml:lang="">{1,1}</diggs:AbstractGroup>
</diggs:group>
Source

<element name="group" type="diggs:GroupPropertyType" minOccurs="0" maxOccurs="unbounded"/>

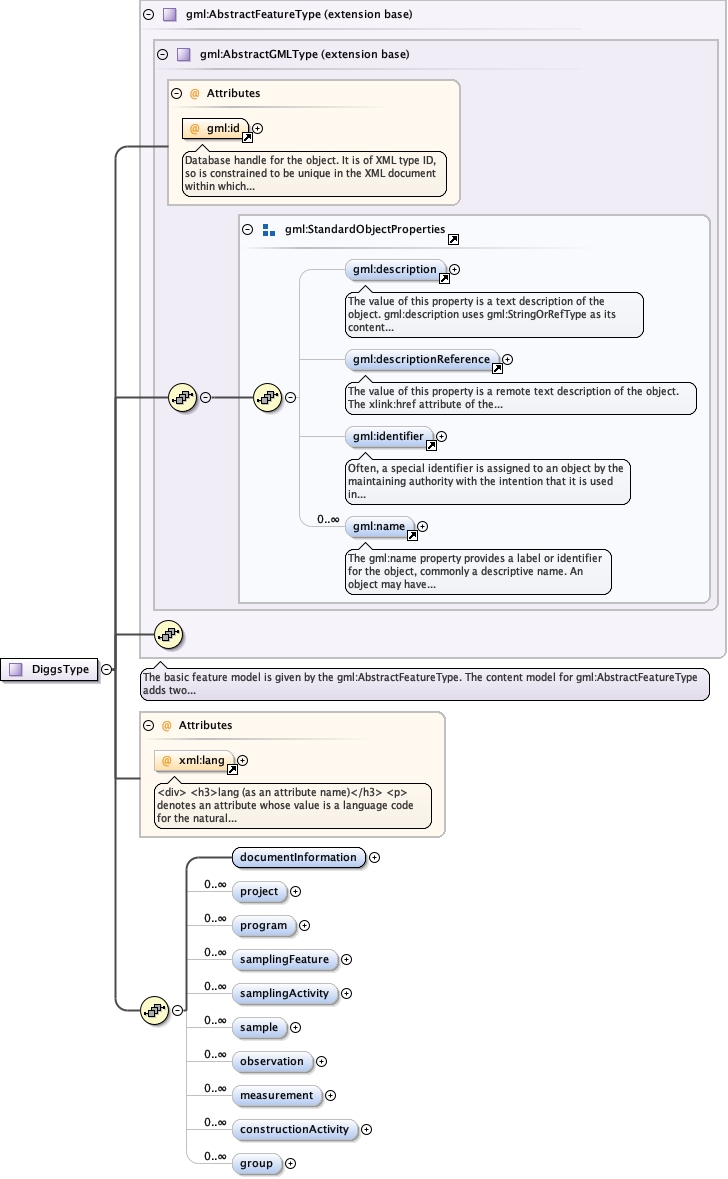

Complex Type diggs:DiggsType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypexml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsType.tmp#DiggsType_documentInformationKernel_xsd_Complex_Type_diggs_DiggsType.tmp#DiggsType_projectKernel_xsd_Complex_Type_diggs_DiggsType.tmp#DiggsType_programKernel_xsd_Complex_Type_diggs_DiggsType.tmp#DiggsType_samplingFeatureKernel_xsd_Complex_Type_diggs_DiggsType.tmp#DiggsType_samplingActivityKernel_xsd_Complex_Type_diggs_DiggsType.tmp#DiggsType_sampleKernel_xsd_Complex_Type_diggs_DiggsType.tmp#DiggsType_observationKernel_xsd_Complex_Type_diggs_DiggsType.tmp#DiggsType_measurementKernel_xsd_Complex_Type_diggs_DiggsType.tmp#DiggsType_constructionActivityKernel_xsd_Complex_Type_diggs_DiggsType.tmp#DiggsType_group
Type extension of gml:AbstractFeatureType
Type hierarchy
Used by
Element diggs:Diggs
Model
Children diggs:constructionActivity, diggs:documentInformation, diggs:group, diggs:measurement, diggs:observation, diggs:program, diggs:project, diggs:sample, diggs:samplingActivity, diggs:samplingFeature, gml:description, gml:descriptionReference, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="DiggsType">
  <complexContent>
    <extension base="gml:AbstractFeatureType">
      <sequence>
        <element name="documentInformation" type="diggs:DocumentInformationPropertyType" minOccurs="1" maxOccurs="1"/>
        <element name="project" type="diggs:ProjectPropertyType" minOccurs="0" maxOccurs="unbounded"/>
        <element minOccurs="0" name="program" type="diggs:AbstractProgramPropertyType" maxOccurs="unbounded"/>
        <element minOccurs="0" name="samplingFeature" type="diggs:AbstractSamplingFeaturePropertyType" maxOccurs="unbounded"/>
        <element minOccurs="0" name="samplingActivity" type="diggs:SamplingActivityPropertyType" maxOccurs="unbounded"/>
        <element name="sample" type="diggs:AbstractSamplePropertyType" minOccurs="0" maxOccurs="unbounded"/>
        <element minOccurs="0" name="observation" type="diggs:ObservationSystemPropertyType" maxOccurs="unbounded"/>
        <element minOccurs="0" name="measurement" type="diggs:AbstractMeasurementPropertyType" maxOccurs="unbounded"/>
        <element minOccurs="0" name="constructionActivity" type="diggs:AbstractConstructionActivityPropertyType" maxOccurs="unbounded"/>
        <element name="group" type="diggs:GroupPropertyType" minOccurs="0" maxOccurs="unbounded"/>
      </sequence>
      <attribute ref="xml:lang"/>
    </extension>
  </complexContent>
</complexType>
