Complex Type diggs:AbstractCurveType
Namespace http://diggsml.org/schema-dev
Annotations

diggs:AbstractCurveType is an abstraction of a curve to support the
different levels of complexity. The curve may always be viewed as a geometric
primitive, i.e. is continuous.

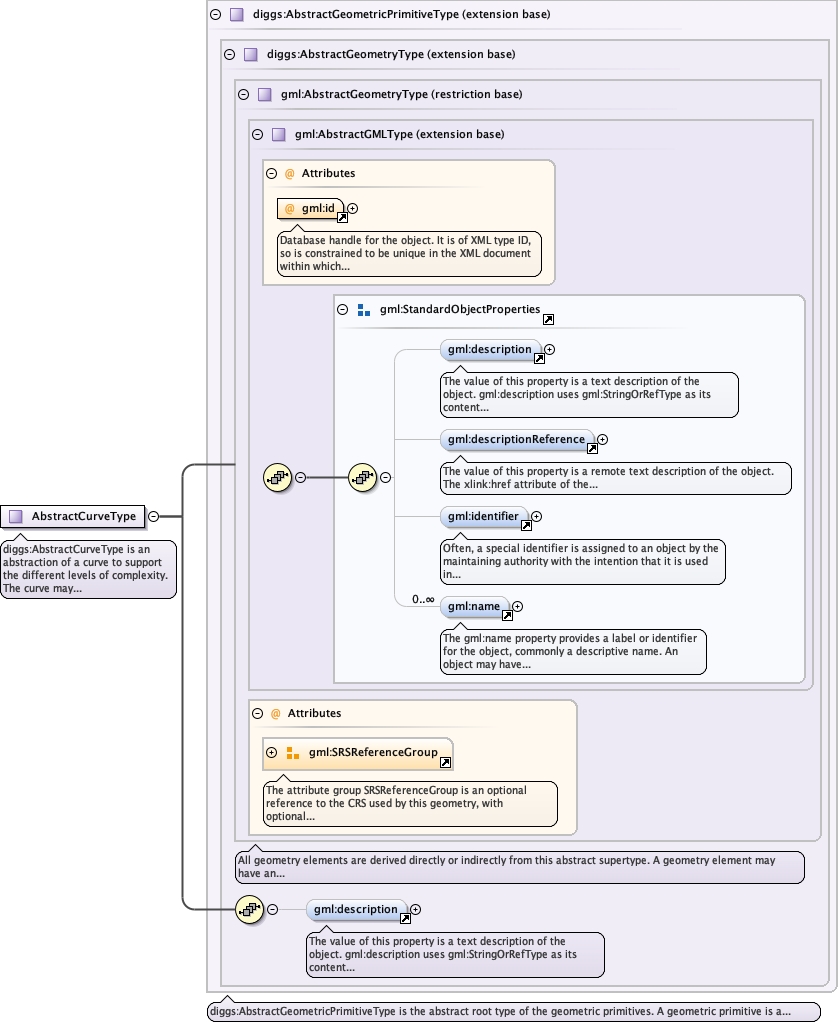

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometryTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptionKernel_xsd_Complex_Type_diggs_AbstractGeometryType.tmp#AbstractGeometryTypeKernel_xsd_Complex_Type_diggs_AbstractGeometricPrimitiveType.tmp#AbstractGeometricPrimitiveType
Type extension of diggs:AbstractGeometricPrimitiveType
Type hierarchy
Properties
abstract true
Used by
Model
Children gml:description
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<complexType abstract="true" name="AbstractCurveType">
  <annotation>
    <documentation>diggs:AbstractCurveType is an abstraction of a curve to support the different levels of complexity. The curve may always be viewed as a geometric primitive, i.e. is continuous.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractGeometricPrimitiveType"/>
  </complexContent>
</complexType>
