Element diggs:RectifiedGridType / diggs:origin
Namespace http://diggsml.org/schema-dev

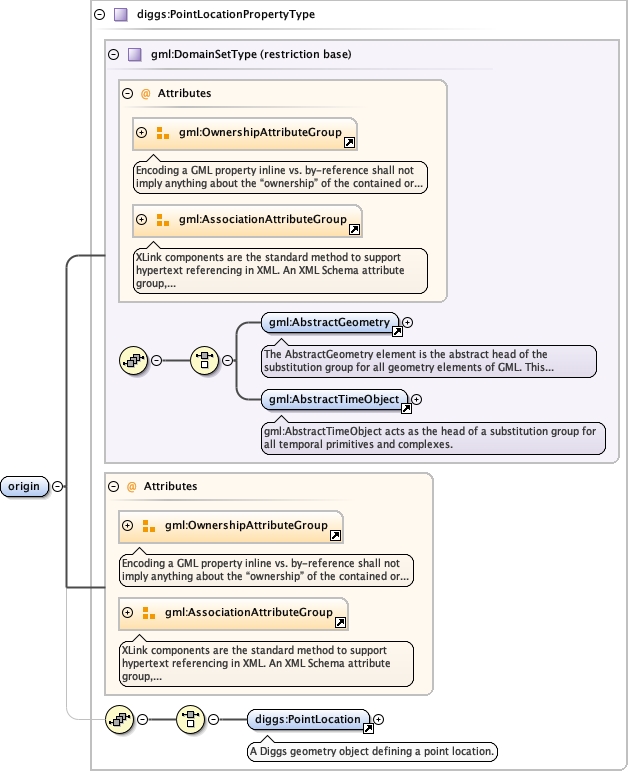

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupKernel_xsd_Element_diggs_PointLocation.tmp#PointLocationKernel_xsd_Complex_Type_diggs_PointLocationPropertyType.tmp#PointLocationPropertyType
Type diggs:PointLocationPropertyType
Type hierarchy
Properties
content complex
Model
(diggs:PointLocation)
Children diggs:PointLocation
Instance

<diggs:origin xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:PointLocation axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PointLocation>
</diggs:origin>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="origin" type="diggs:PointLocationPropertyType"/>
Element diggs:RectifiedGridType / diggs:offsetVector
Namespace http://diggsml.org/schema-dev

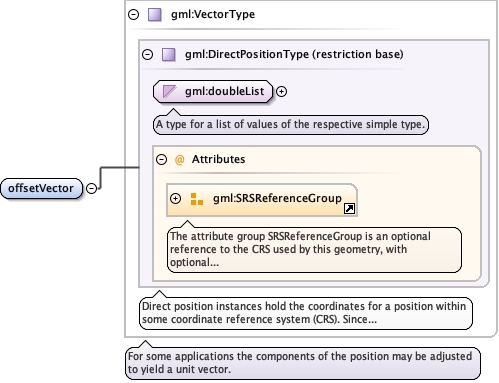

Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_doubleList.tmp#doubleListgml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_DirectPositionType.tmp#DirectPositionTypegml3_2Profile_diggs_xsd_Complex_Type_gml_VectorType.tmp#http___www.opengis.net_gml_3.2_VectorType
Type gml:VectorType
Type hierarchy
Properties
content complex
maxOccurs unbounded
Attributes
QName Type Use
axisLabels gml:NCNameList optional
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<element maxOccurs="unbounded" name="offsetVector" type="gml:VectorType"/>
Element diggs:RectifiedGridType / diggs:uncertainty
Namespace http://diggsml.org/schema-dev

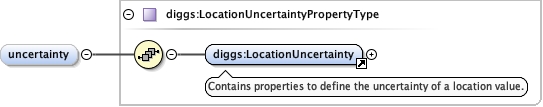

Diagram
DiagramKernel_xsd_Element_diggs_LocationUncertainty.tmp#LocationUncertaintyKernel_xsd_Complex_Type_diggs_LocationUncertaintyPropertyType.tmp#LocationUncertaintyPropertyType
Type diggs:LocationUncertaintyPropertyType
Properties
content complex
minOccurs 0
Model
diggs:LocationUncertainty
Children diggs:LocationUncertainty
Instance

<diggs:uncertainty xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:LocationUncertainty gml:id="" xml:lang="">{1,1}</diggs:LocationUncertainty>
</diggs:uncertainty>
Source

<element minOccurs="0" name="uncertainty" type="diggs:LocationUncertaintyPropertyType"/>
Complex Type diggs:RectifiedGridType
Namespace http://diggsml.org/schema-dev

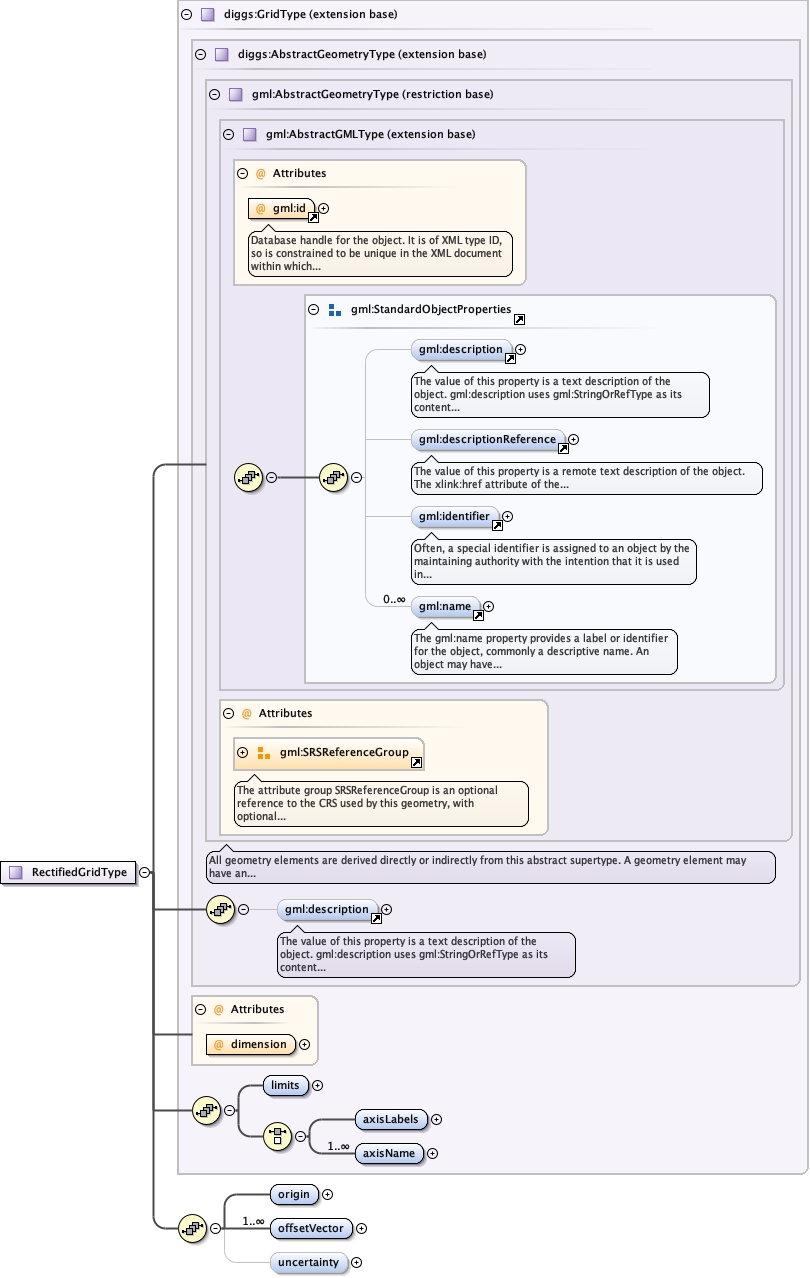

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometryTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptionKernel_xsd_Complex_Type_diggs_AbstractGeometryType.tmp#AbstractGeometryTypeGeophysics_xsd_Complex_Type_diggs_GridType.tmp#http___diggsml.org_schema-dev_GridType_dimensionGeophysics_xsd_Complex_Type_diggs_GridType.tmp#http___diggsml.org_schema-dev_GridType_limitsGeophysics_xsd_Complex_Type_diggs_GridType.tmp#http___diggsml.org_schema-dev_GridType_axisLabelsGeophysics_xsd_Complex_Type_diggs_GridType.tmp#http___diggsml.org_schema-dev_GridType_axisNameGeophysics_xsd_Complex_Type_diggs_GridType.tmp#http___diggsml.org_schema-dev_GridTypeGeophysics_xsd_Complex_Type_diggs_RectifiedGridType.tmp#http___diggsml.org_schema-dev_RectifiedGridType_originGeophysics_xsd_Complex_Type_diggs_RectifiedGridType.tmp#http___diggsml.org_schema-dev_RectifiedGridType_offsetVectorGeophysics_xsd_Complex_Type_diggs_RectifiedGridType.tmp#http___diggsml.org_schema-dev_RectifiedGridType_uncertainty
Type extension of diggs:GridType
Type hierarchy
Used by
Element diggs:RectifiedGrid
Model
gml:description{0,1} , diggs:limits , (diggs:axisLabels | diggs:axisName+) , diggs:origin , diggs:offsetVector+ , diggs:uncertainty{0,1}
Children diggs:axisLabels, diggs:axisName, diggs:limits, diggs:offsetVector, diggs:origin, diggs:uncertainty, gml:description
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
dimension positiveInteger required
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<complexType name="RectifiedGridType">
  <complexContent>
    <extension base="diggs:GridType">
      <sequence>
        <element name="origin" type="diggs:PointLocationPropertyType"/>
        <element maxOccurs="unbounded" name="offsetVector" type="gml:VectorType"/>
        <element minOccurs="0" name="uncertainty" type="diggs:LocationUncertaintyPropertyType"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
