Element diggs:GridType / diggs:limits
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_GridLimitsType.tmp#GridLimitsType_GridEnvelopegml3_2Profile_diggs_xsd_Complex_Type_gml_GridLimitsType.tmp#GridLimitsType
Type gml:GridLimitsType
Properties
content complex
Model
gml:GridEnvelope
Children gml:GridEnvelope
Instance

<diggs:limits xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:GridEnvelope>{1,1}</gml:GridEnvelope>
</diggs:limits>
Source

<element name="limits" type="gml:GridLimitsType"/>
Element diggs:GridType / diggs:axisLabels
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_NCNameList.tmp#NCNameList
Type gml:NCNameList
Properties
content simple
Source

<element name="axisLabels" type="gml:NCNameList"/>
Element diggs:GridType / diggs:axisName
Namespace http://diggsml.org/schema-dev
Diagram
Diagram
Type string
Properties
content simple
maxOccurs unbounded
Source

<element maxOccurs="unbounded" name="axisName" type="string"/>
Complex Type diggs:GridType
Namespace http://diggsml.org/schema-dev

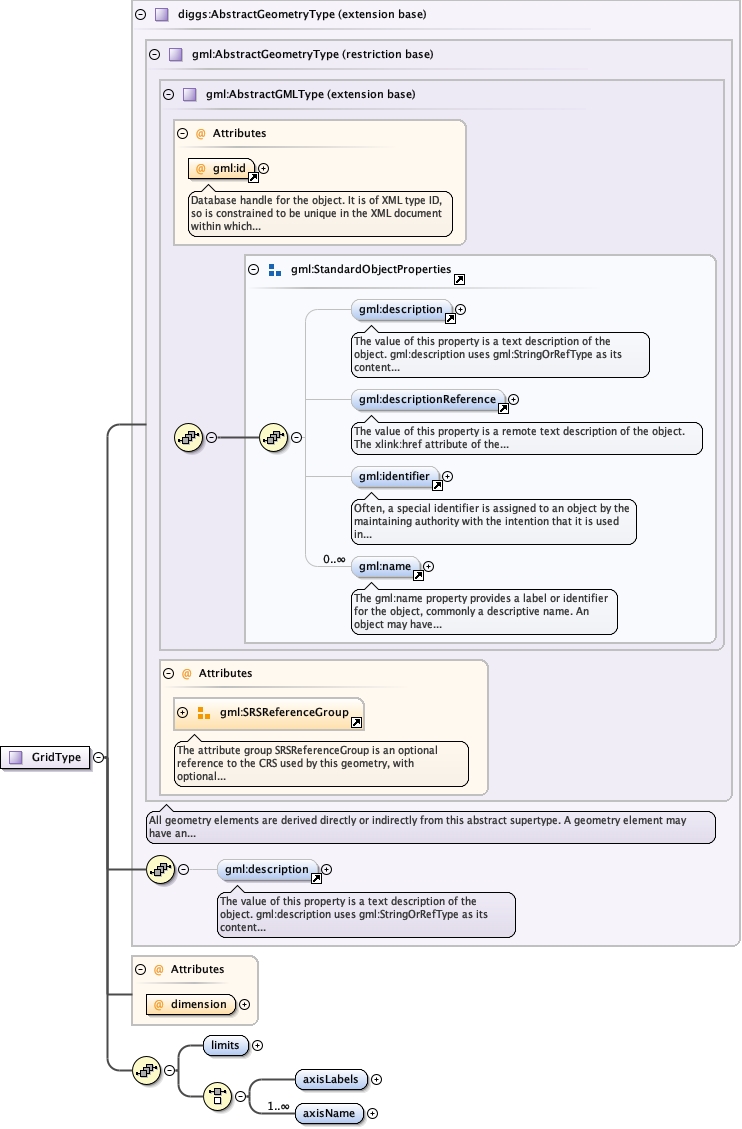

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometryTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptionKernel_xsd_Complex_Type_diggs_AbstractGeometryType.tmp#AbstractGeometryTypeGeophysics_xsd_Complex_Type_diggs_GridType.tmp#http___diggsml.org_schema-dev_GridType_dimensionGeophysics_xsd_Complex_Type_diggs_GridType.tmp#http___diggsml.org_schema-dev_GridType_limitsGeophysics_xsd_Complex_Type_diggs_GridType.tmp#http___diggsml.org_schema-dev_GridType_axisLabelsGeophysics_xsd_Complex_Type_diggs_GridType.tmp#http___diggsml.org_schema-dev_GridType_axisName
Type extension of diggs:AbstractGeometryType
Type hierarchy
Used by
Complex Type diggs:RectifiedGridType
Element diggs:Grid
Model
gml:description{0,1} , diggs:limits , (diggs:axisLabels | diggs:axisName+)
Children diggs:axisLabels, diggs:axisName, diggs:limits, gml:description
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
dimension positiveInteger required
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<complexType name="GridType">
  <complexContent>
    <extension base="diggs:AbstractGeometryType">
      <sequence>
        <element name="limits" type="gml:GridLimitsType"/>
        <choice>
          <element name="axisLabels" type="gml:NCNameList"/>
          <element maxOccurs="unbounded" name="axisName" type="string"/>
        </choice>
      </sequence>
      <attribute name="dimension" type="positiveInteger" use="required"/>
    </extension>
  </complexContent>
</complexType>
Attribute diggs:GridType / @dimension
Namespace No namespace
Type positiveInteger
Properties
use required
Used by
Complex Type diggs:GridType
Source

<attribute name="dimension" type="positiveInteger" use="required"/>
