Element diggs:AbstractVolumeType / diggs:exterior
Namespace http://diggsml.org/schema-dev

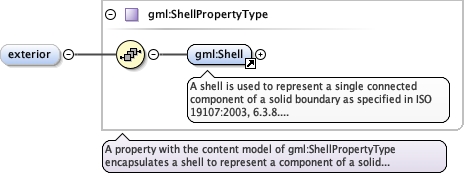

Diagram
Diagramgml3_2Profile_diggs_xsd_Element_gml_Shell.tmp#Shellgml3_2Profile_diggs_xsd_Complex_Type_gml_ShellPropertyType.tmp#ShellPropertyType
Type gml:ShellPropertyType
Properties
content complex
minOccurs 0
Model
Children gml:Shell
Instance

<diggs:exterior xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:Shell aggregationType="" axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:Shell>
</diggs:exterior>
Source

<element minOccurs="0" name="exterior" type="gml:ShellPropertyType"/>
Element diggs:AbstractVolumeType / diggs:interior
Namespace http://diggsml.org/schema-dev

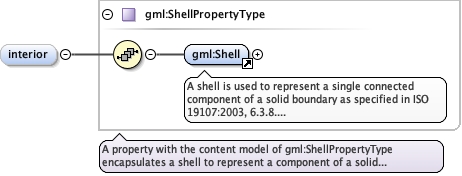

Diagram
Diagramgml3_2Profile_diggs_xsd_Element_gml_Shell.tmp#Shellgml3_2Profile_diggs_xsd_Complex_Type_gml_ShellPropertyType.tmp#ShellPropertyType
Type gml:ShellPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children gml:Shell
Instance

<diggs:interior xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:Shell aggregationType="" axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:Shell>
</diggs:interior>
Source

<element maxOccurs="unbounded" minOccurs="0" name="interior" type="gml:ShellPropertyType"/>
Element diggs:AbstractVolumeType / diggs:uncertainty
Namespace http://diggsml.org/schema-dev

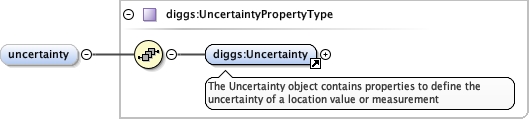

Diagram
DiagramKernel_xsd_Element_diggs_Uncertainty.tmp#UncertaintyKernel_xsd_Complex_Type_diggs_UncertaintyPropertyType.tmp#UncertaintyPropertyType
Type diggs:UncertaintyPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:Uncertainty
Instance

<diggs:uncertainty xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Uncertainty gml:id="" xml:lang="">{1,1}</diggs:Uncertainty>
</diggs:uncertainty>
Source

<element minOccurs="0" name="uncertainty" type="diggs:UncertaintyPropertyType"/>
Complex Type diggs:AbstractVolumeType
Namespace http://diggsml.org/schema-dev
Annotations

diggs:AbstractSolidType is an abstraction of a solid to support the
different levels of complexity. The solid may always be viewed as a geometric
primitive, i.e. is continuous.

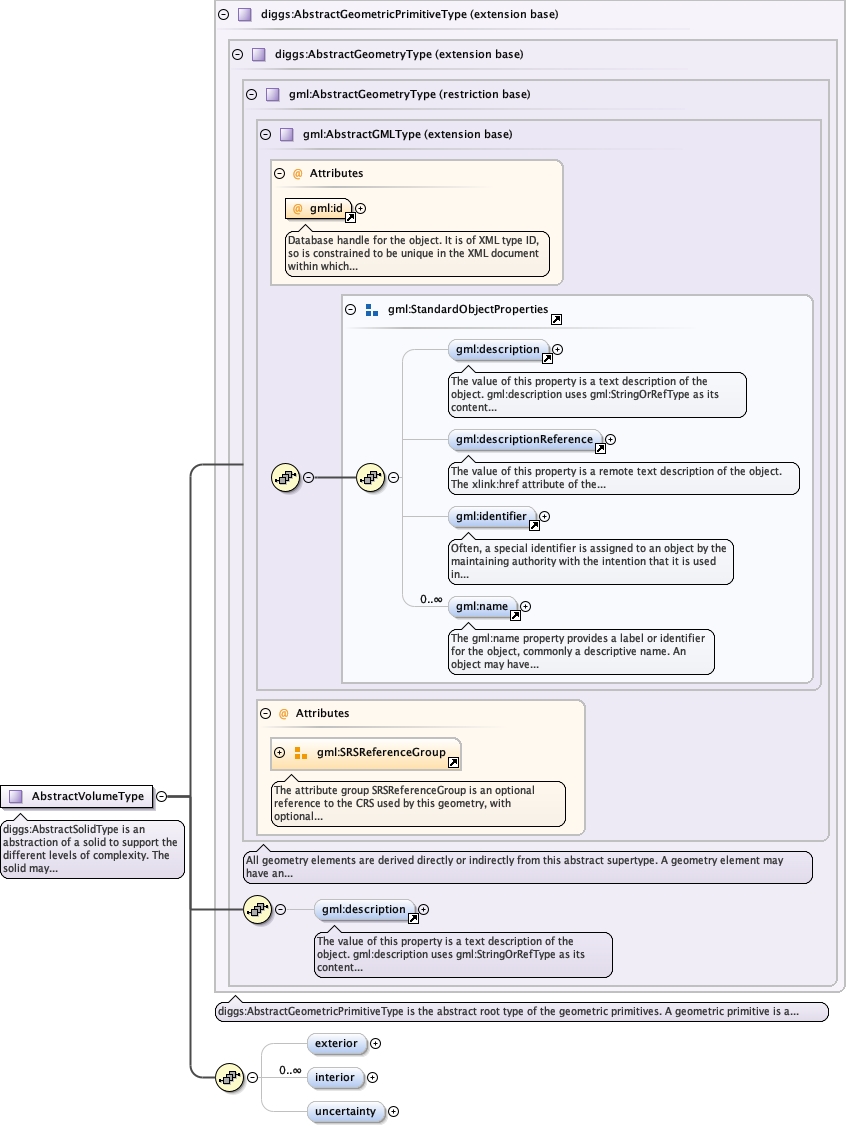

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometryTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptionKernel_xsd_Complex_Type_diggs_AbstractGeometryType.tmp#AbstractGeometryTypeKernel_xsd_Complex_Type_diggs_AbstractGeometricPrimitiveType.tmp#AbstractGeometricPrimitiveTypeGeophysics_xsd_Complex_Type_diggs_AbstractVolumeType.tmp#AbstractVolumeType_exteriorGeophysics_xsd_Complex_Type_diggs_AbstractVolumeType.tmp#AbstractVolumeType_interiorGeophysics_xsd_Complex_Type_diggs_AbstractVolumeType.tmp#AbstractVolumeType_uncertainty
Type extension of diggs:AbstractGeometricPrimitiveType
Type hierarchy
Properties
abstract true
Used by
Element diggs:AbstractVolume
Complex Type diggs:SolidType
Model
Children diggs:exterior, diggs:interior, diggs:uncertainty, gml:description
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<complexType abstract="true" name="AbstractVolumeType">
  <annotation>
    <documentation>diggs:AbstractSolidType is an abstraction of a solid to support the different levels of complexity. The solid may always be viewed as a geometric primitive, i.e. is continuous.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractGeometricPrimitiveType">
      <sequence>
        <element minOccurs="0" name="exterior" type="gml:ShellPropertyType"/>
        <element maxOccurs="unbounded" minOccurs="0" name="interior" type="gml:ShellPropertyType"/>
        <element minOccurs="0" name="uncertainty" type="diggs:UncertaintyPropertyType"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
