Element gml:Shell
Namespace http://www.opengis.net/gml/3.2
Annotations

A shell is used to represent a single connected component of a solid boundary
as specified in ISO 19107:2003, 6.3.8. Every gml:surfaceMember references or contains one
surface, i.e. any element which is substitutable for gml:AbstractSurface. In the context of
a shell, the surfaces describe the boundary of the solid. If provided, the aggregationType
attribute shall have the value "set".

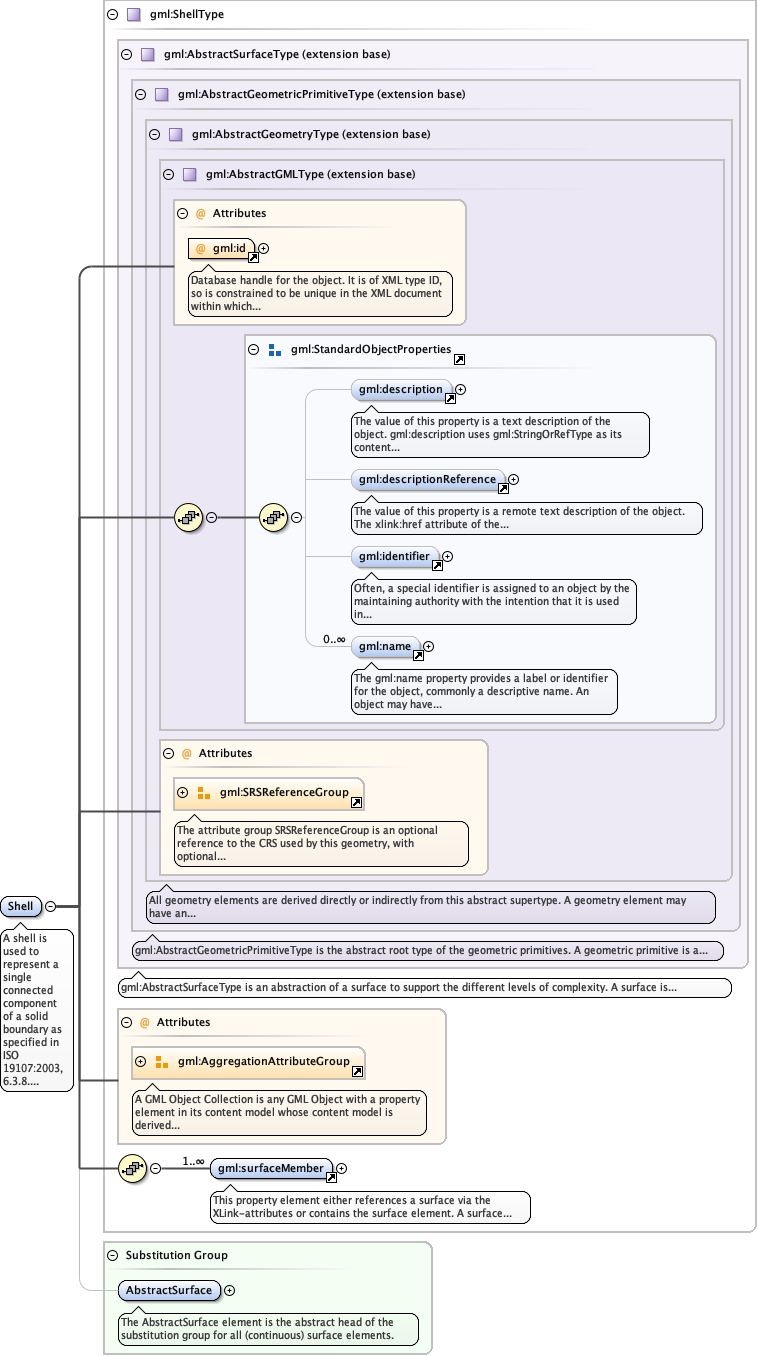

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometryTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometricPrimitiveType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometricPrimitiveTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractSurfaceType.tmp#http___www.opengis.net_gml_3.2_AbstractSurfaceTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_AggregationAttributeGroup.tmp#AggregationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_surfaceMember.tmp#surfaceMembergml3_2Profile_diggs_xsd_Complex_Type_gml_ShellType.tmp#ShellTypegml3_2Profile_diggs_xsd_Element_gml_AbstractSurface.tmp#AbstractSurface
Type gml:ShellType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Complex Type gml:ShellPropertyType
Model
Children gml:description, gml:descriptionReference, gml:identifier, gml:name, gml:surfaceMember
Instance

<gml:Shell aggregationType="" axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:surfaceMember xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,unbounded}</gml:surfaceMember>
</gml:Shell>
Attributes
QName Type Use Annotation
aggregationType gml:AggregationType optional
axisLabels gml:NCNameList optional
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<element name="Shell" type="gml:ShellType" substitutionGroup="gml:AbstractSurface">
  <annotation>
    <documentation>A shell is used to represent a single connected component of a solid boundary as specified in ISO 19107:2003, 6.3.8. Every gml:surfaceMember references or contains one surface, i.e. any element which is substitutable for gml:AbstractSurface. In the context of a shell, the surfaces describe the boundary of the solid. If provided, the aggregationType attribute shall have the value "set".</documentation>
  </annotation>
</element>
