Element diggs:MultiSolid
Namespace http://diggsml.org/schemas/3
Annotations

A collection of volume geometries with no assumed adjacency, contiguity or tiling
between members (ISO 19107 GM_MultiSolid): a disjoint set of bodies, such as a
geologic unit present as several unconnected patches, or a coverage domain needing
one value per volume. Unlike diggs:CompositeSolid, it does not behave as one solid:
it substitutes diggs:AbstractGeometricAggregate, not diggs:AbstractVolume, so it can
be given through diggs:location and any other diggs:AbstractGeometry property, but
not through diggs:featureExtent. Members may overlap; nothing here asserts they do
not. Members may be inline (solidMember or solidMembers) or cited by xlink:href to a
volume defined elsewhere in the document. Contrast diggs:CompositeSolid, whose
members tile one connected body.

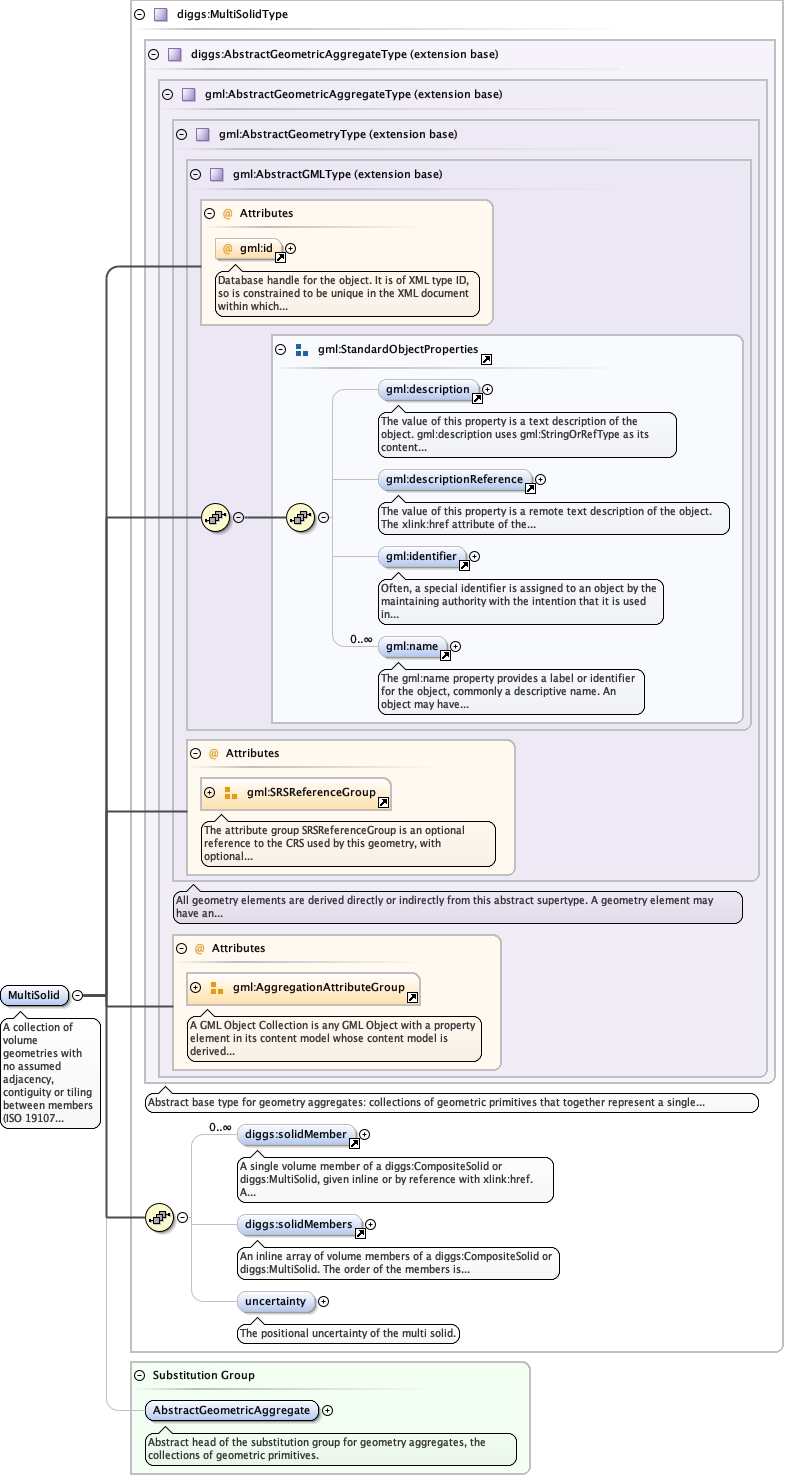

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#AbstractGeometryTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_AggregationAttributeGroup.tmp#AggregationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometricAggregateType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometricAggregateTypeCore_xsd_Complex_Type_diggs_AbstractGeometricAggregateType.tmp#AbstractGeometricAggregateTypeExtSamplingFeatures_xsd_Element_diggs_solidMember.tmp#solidMemberExtSamplingFeatures_xsd_Element_diggs_solidMembers.tmp#solidMembersExtSamplingFeatures_xsd_Complex_Type_diggs_MultiSolidType.tmp#MultiSolidType_uncertaintyExtSamplingFeatures_xsd_Complex_Type_diggs_MultiSolidType.tmp#MultiSolidTypeCore_xsd_Element_diggs_AbstractGeometricAggregate.tmp#http___diggsml.org_schemas_3_AbstractGeometricAggregate
Type diggs:MultiSolidType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children diggs:solidMember, diggs:solidMembers, diggs:uncertainty, gml:description, gml:descriptionReference, gml:identifier, gml:name
Instance

<diggs:MultiSolid aggregationType="" axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:descriptionReference xlink:href="" nilReason="" owns="false">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:solidMember xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:solidMember>
  <diggs:solidMembers>{0,1}</diggs:solidMembers>
  <diggs:uncertainty>{0,1}</diggs:uncertainty>
</diggs:MultiSolid>
Attributes
QName Type Use Annotation
aggregationType gml:AggregationType optional
axisLabels gml:NCNameList optional
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<element name="MultiSolid" substitutionGroup="diggs:AbstractGeometricAggregate" type="diggs:MultiSolidType">
  <annotation>
    <documentation>A collection of volume geometries with no assumed adjacency, contiguity or tiling between members (ISO 19107 GM_MultiSolid): a disjoint set of bodies, such as a geologic unit present as several unconnected patches, or a coverage domain needing one value per volume. Unlike diggs:CompositeSolid, it does not behave as one solid: it substitutes diggs:AbstractGeometricAggregate, not diggs:AbstractVolume, so it can be given through diggs:location and any other diggs:AbstractGeometry property, but not through diggs:featureExtent. Members may overlap; nothing here asserts they do not. Members may be inline (solidMember or solidMembers) or cited by xlink:href to a volume defined elsewhere in the document. Contrast diggs:CompositeSolid, whose members tile one connected body.</documentation>
  </annotation>
</element>
