Element diggs:solidMembers
Namespace http://diggsml.org/schemas/3
Annotations

An inline array of volume members of a diggs:CompositeSolid or diggs:MultiSolid. The
order of the members is significant and shall be preserved when processing the
array. Prefer this form over repeated diggs:solidMember elements when every member
is inline and the element count should stay directly readable (for example a block
model with one value per cell). Referencing members by xlink is not supported here;
use diggs:solidMember for that.

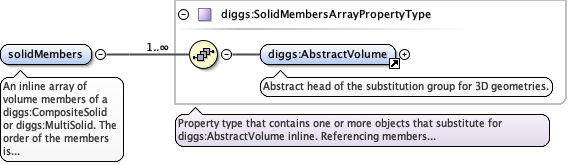

Diagram
DiagramExtSamplingFeatures_xsd_Element_diggs_AbstractVolume.tmp#AbstractVolumeExtSamplingFeatures_xsd_Complex_Type_diggs_SolidMembersArrayPropertyType.tmp#SolidMembersArrayPropertyType
Type diggs:SolidMembersArrayPropertyType
Properties
content complex
Used by
Model
Children diggs:AbstractVolume
Instance

<diggs:solidMembers xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AbstractVolume axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:AbstractVolume>
</diggs:solidMembers>
Source

<element name="solidMembers" type="diggs:SolidMembersArrayPropertyType">
  <annotation>
    <documentation>An inline array of volume members of a diggs:CompositeSolid or diggs:MultiSolid. The order of the members is significant and shall be preserved when processing the array. Prefer this form over repeated diggs:solidMember elements when every member is inline and the element count should stay directly readable (for example a block model with one value per cell). Referencing members by xlink is not supported here; use diggs:solidMember for that.</documentation>
  </annotation>
</element>
