Element diggs:solidMember
Namespace http://diggsml.org/schemas/3
Annotations

A single volume member of a diggs:CompositeSolid or diggs:MultiSolid, given inline
or by reference with xlink:href. A volume here is any element substitutable for
diggs:AbstractVolume: diggs:Solid, diggs:SurfaceBoundedSolid or, though unusual and
worth a second look, a nested diggs:CompositeSolid. It corresponds to
diggs:surfaceMember for volumes.

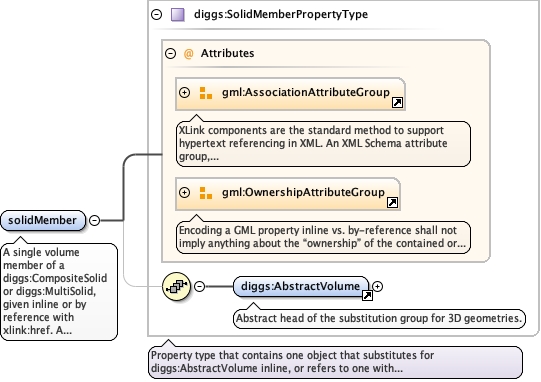

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupExtSamplingFeatures_xsd_Element_diggs_AbstractVolume.tmp#AbstractVolumeExtSamplingFeatures_xsd_Complex_Type_diggs_SolidMemberPropertyType.tmp#SolidMemberPropertyType
Type diggs:SolidMemberPropertyType
Properties
content complex
Used by
Model
Children diggs:AbstractVolume
Instance

<diggs:solidMember xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AbstractVolume axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:AbstractVolume>
</diggs:solidMember>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="solidMember" type="diggs:SolidMemberPropertyType">
  <annotation>
    <documentation>A single volume member of a diggs:CompositeSolid or diggs:MultiSolid, given inline or by reference with xlink:href. A volume here is any element substitutable for diggs:AbstractVolume: diggs:Solid, diggs:SurfaceBoundedSolid or, though unusual and worth a second look, a nested diggs:CompositeSolid. It corresponds to diggs:surfaceMember for volumes.</documentation>
  </annotation>
</element>
