Element diggs:TriangulatedSurfacePatchType / diggs:uncertainty
Namespace http://diggsml.org/schemas/3
Annotations

The positional uncertainty of the triangle patch.

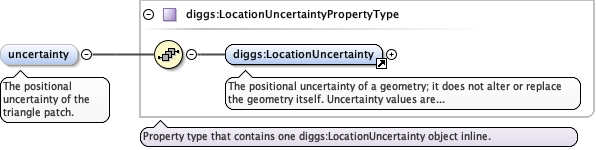

Diagram
DiagramCommon_xsd_Element_diggs_LocationUncertainty.tmp#LocationUncertaintyCommon_xsd_Complex_Type_diggs_LocationUncertaintyPropertyType.tmp#LocationUncertaintyPropertyType
Type diggs:LocationUncertaintyPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:LocationUncertainty
Instance

<diggs:uncertainty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:LocationUncertainty gml:id="">{1,1}</diggs:LocationUncertainty>
</diggs:uncertainty>
Source

<element minOccurs="0" name="uncertainty" type="diggs:LocationUncertaintyPropertyType">
  <annotation>
    <documentation>The positional uncertainty of the triangle patch.</documentation>
  </annotation>
</element>
Complex Type diggs:TriangulatedSurfacePatchType
Namespace http://diggsml.org/schemas/3

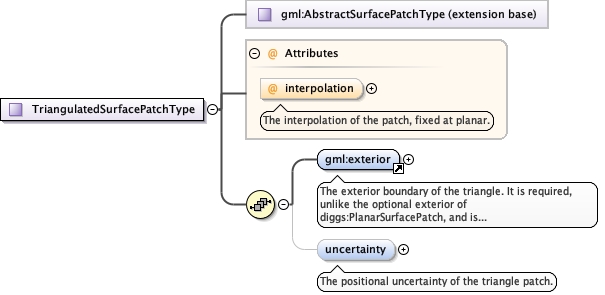

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractSurfacePatchType.tmp#AbstractSurfacePatchTypeExtSamplingFeatures_xsd_Complex_Type_diggs_TriangulatedSurfacePatchType.tmp#TriangulatedSurfacePatchType_interpolationgml3_2Profile_diggs_xsd_Element_gml_exterior.tmp#exteriorExtSamplingFeatures_xsd_Complex_Type_diggs_TriangulatedSurfacePatchType.tmp#TriangulatedSurfacePatchType_uncertainty
Type extension of gml:AbstractSurfacePatchType
Type hierarchy
Used by
Model
Children diggs:uncertainty, gml:exterior
Attributes
QName Type Fixed Use Annotation
interpolation gml:SurfaceInterpolationType planar optional
The interpolation of the patch, fixed at planar.
Source

<complexType name="TriangulatedSurfacePatchType">
  <complexContent>
    <extension base="gml:AbstractSurfacePatchType">
      <sequence>
        <element ref="gml:exterior">
          <annotation>
            <documentation>The exterior boundary of the triangle. It is required, unlike the optional exterior of diggs:PlanarSurfacePatch, and is a 3-sided ring of 4 positions, the first equal to the last.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="uncertainty" type="diggs:LocationUncertaintyPropertyType">
          <annotation>
            <documentation>The positional uncertainty of the triangle patch.</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute fixed="planar" name="interpolation" type="gml:SurfaceInterpolationType">
        <annotation>
          <documentation>The interpolation of the patch, fixed at planar.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Attribute diggs:TriangulatedSurfacePatchType / @interpolation
Namespace No namespace
Annotations

The interpolation of the patch, fixed at planar.
Type gml:SurfaceInterpolationType
Properties
fixed planar
Facets
enumeration none
enumeration planar
enumeration spherical
enumeration elliptical
enumeration conic
enumeration tin
enumeration parametricCurve
enumeration polynomialSpline
enumeration rationalSpline
enumeration triangulatedSpline
Used by
Source

<attribute fixed="planar" name="interpolation" type="gml:SurfaceInterpolationType">
  <annotation>
    <documentation>The interpolation of the patch, fixed at planar.</documentation>
  </annotation>
</attribute>
