Element diggs:TrianglePatch
Namespace http://diggsml.org/schemas/3
Annotations

A single planar triangle that is one patch of a diggs:TriangulatedSurface. It is the
triangle-only counterpart of diggs:PlanarSurfacePatch: exactly one required exterior
boundary (no interior rings, since a triangle has no holes), whose ring shall be a
gml:LinearRing with exactly four positions (three distinct corners, the first and
last coincident), the convention gml:Triangle uses. This is not machine-enforced by
the content model.

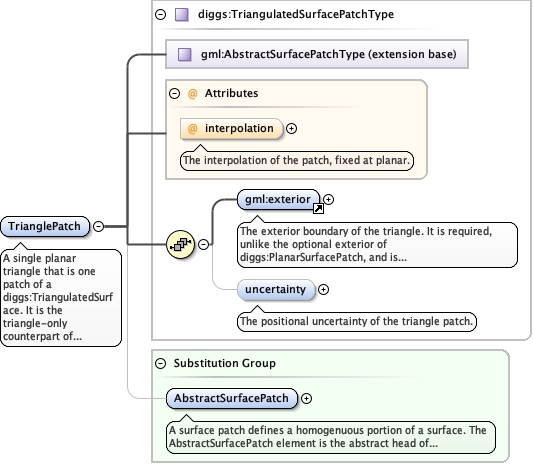

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractSurfacePatchType.tmp#AbstractSurfacePatchTypeExtSamplingFeatures_xsd_Complex_Type_diggs_TriangulatedSurfacePatchType.tmp#TriangulatedSurfacePatchType_interpolationgml3_2Profile_diggs_xsd_Element_gml_exterior.tmp#exteriorExtSamplingFeatures_xsd_Complex_Type_diggs_TriangulatedSurfacePatchType.tmp#TriangulatedSurfacePatchType_uncertaintyExtSamplingFeatures_xsd_Complex_Type_diggs_TriangulatedSurfacePatchType.tmp#TriangulatedSurfacePatchTypegml3_2Profile_diggs_xsd_Element_gml_AbstractSurfacePatch.tmp#AbstractSurfacePatch
Type diggs:TriangulatedSurfacePatchType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children diggs:uncertainty, gml:exterior
Instance

<diggs:TrianglePatch interpolation="planar" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:exterior>{1,1}</gml:exterior>
  <diggs:uncertainty>{0,1}</diggs:uncertainty>
</diggs:TrianglePatch>
Attributes
QName Type Fixed Use Annotation
interpolation gml:SurfaceInterpolationType planar optional
The interpolation of the patch, fixed at planar.
Source

<element name="TrianglePatch" substitutionGroup="gml:AbstractSurfacePatch" type="diggs:TriangulatedSurfacePatchType">
  <annotation>
    <documentation>A single planar triangle that is one patch of a diggs:TriangulatedSurface. It is the triangle-only counterpart of diggs:PlanarSurfacePatch: exactly one required exterior boundary (no interior rings, since a triangle has no holes), whose ring shall be a gml:LinearRing with exactly four positions (three distinct corners, the first and last coincident), the convention gml:Triangle uses. This is not machine-enforced by the content model.</documentation>
  </annotation>
</element>
