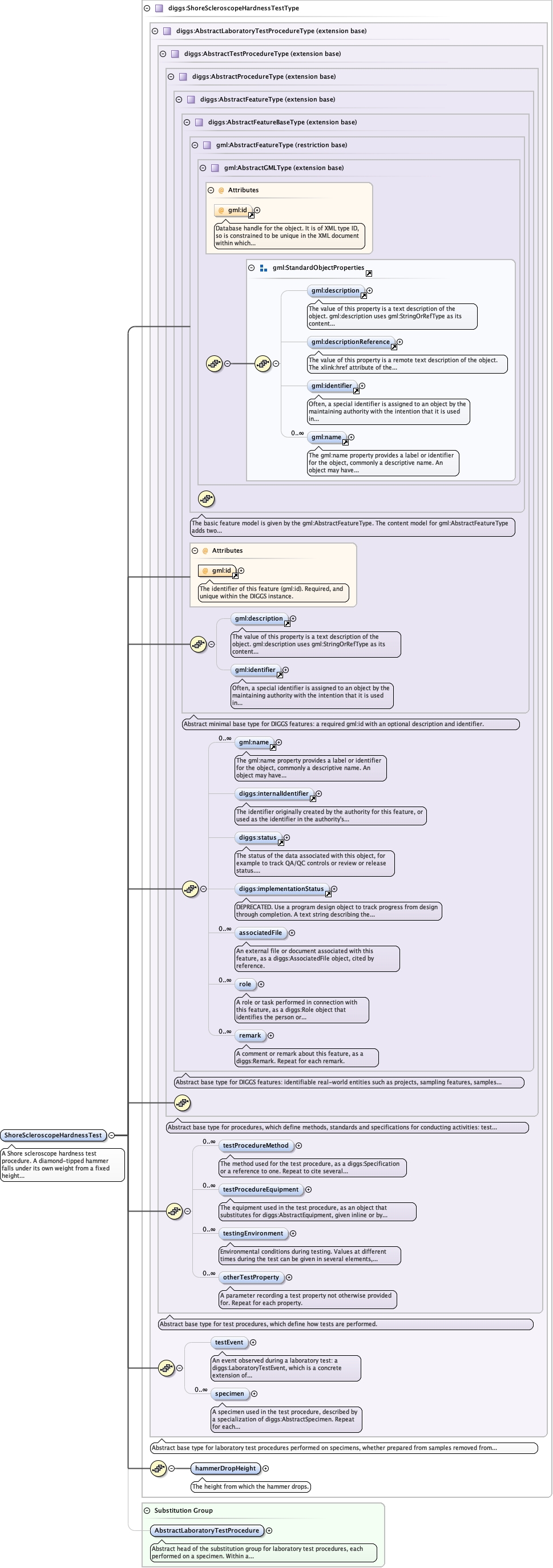

Schema documentation for component diggs:ShoreScleroscopeHardnessTest

A Shore scleroscope hardness test procedure. A diamond-tipped hammer falls under its own weight from a fixed height inside a glass tube onto the test specimen, and the height of its rebound is read on a graduated scale of Shore units. The scale is divided into 100 parts, which represent the average rebound from pure hardened high-carbon steel, and continues above 100 for harder metals.

<diggs:ShoreScleroscopeHardnessTest gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,1}</diggs:testEvent>
  <diggs:specimen xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:specimen>
  <diggs:hammerDropHeight howDetermined="" qualifier="" uom="">{1,1}</diggs:hammerDropHeight>
</diggs:ShoreScleroscopeHardnessTest>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="ShoreScleroscopeHardnessTest" type="diggs:ShoreScleroscopeHardnessTestType" abstract="false" substitutionGroup="diggs:AbstractLaboratoryTestProcedure"> <annotation> <documentation>A Shore scleroscope hardness test procedure. A diamond-tipped hammer falls under its own weight from a fixed height inside a glass tube onto the test specimen, and the height of its rebound is read on a graduated scale of Shore units. The scale is divided into 100 parts, which represent the average rebound from pure hardened high-carbon steel, and continues above 100 for harder metals.</documentation> </annotation> </element>
