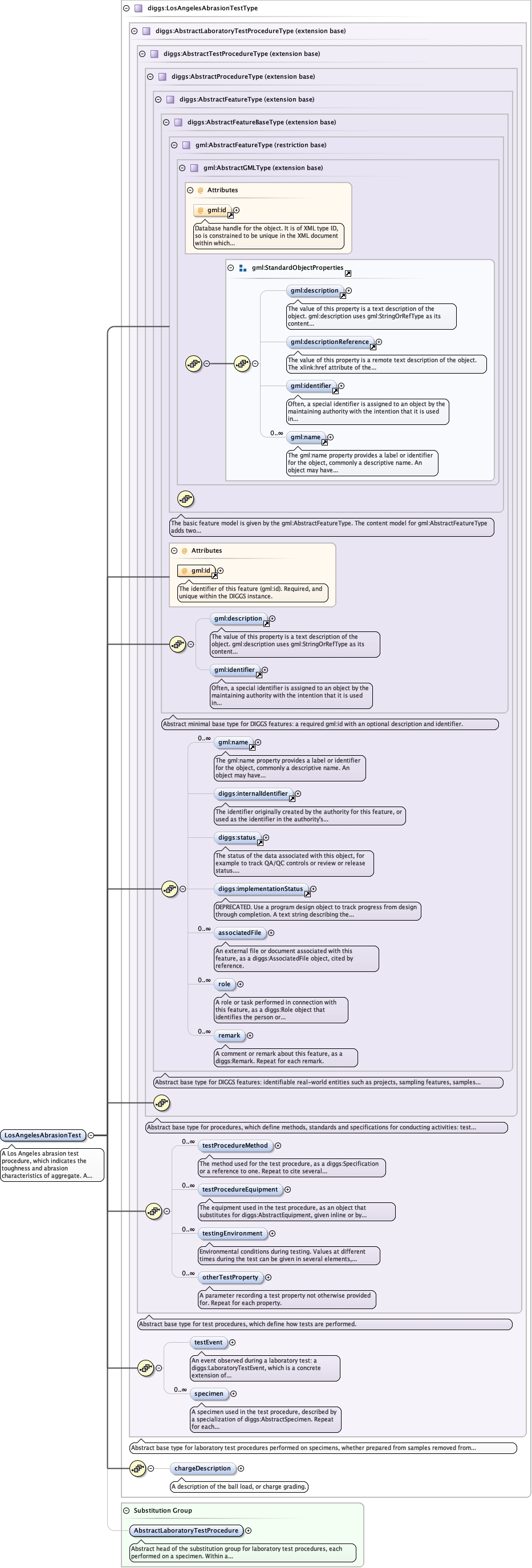

Schema documentation for component diggs:LosAngelesAbrasionTest

A Los Angeles abrasion test procedure, which indicates the toughness and abrasion characteristics of aggregate. A coarse aggregate sample is subjected to abrasion, impact and grinding in a rotating steel drum containing a specified number of steel spheres. The mass retained on a specified sieve is subtracted from the original mass to give the percentage of the total that has broken down and passed through; an L.A. abrasion loss of 40 means that 40 % of the original sample passed.

<diggs:LosAngelesAbrasionTest gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,1}</diggs:testEvent>
  <diggs:specimen xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:specimen>
  <diggs:chargeDescription>{0,1}</diggs:chargeDescription>
</diggs:LosAngelesAbrasionTest>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="LosAngelesAbrasionTest" type="diggs:LosAngelesAbrasionTestType" abstract="false" substitutionGroup="diggs:AbstractLaboratoryTestProcedure"> <annotation> <documentation>A Los Angeles abrasion test procedure, which indicates the toughness and abrasion characteristics of aggregate. A coarse aggregate sample is subjected to abrasion, impact and grinding in a rotating steel drum containing a specified number of steel spheres. The mass retained on a specified sieve is subtracted from the original mass to give the percentage of the total that has broken down and passed through; an L.A. abrasion loss of 40 means that 40 % of the original sample passed.</documentation> </annotation> </element>

Showing:
