Element diggs:AggregatePolishedStoneValueTest
Namespace http://diggsml.org/schemas/3
Annotations

A polished stone value test procedure, a measure of the resistance of an aggregate
to polishing. The aggregate is subjected to a standard polishing process and then
tested with the Portable Skid Resistance Tester.

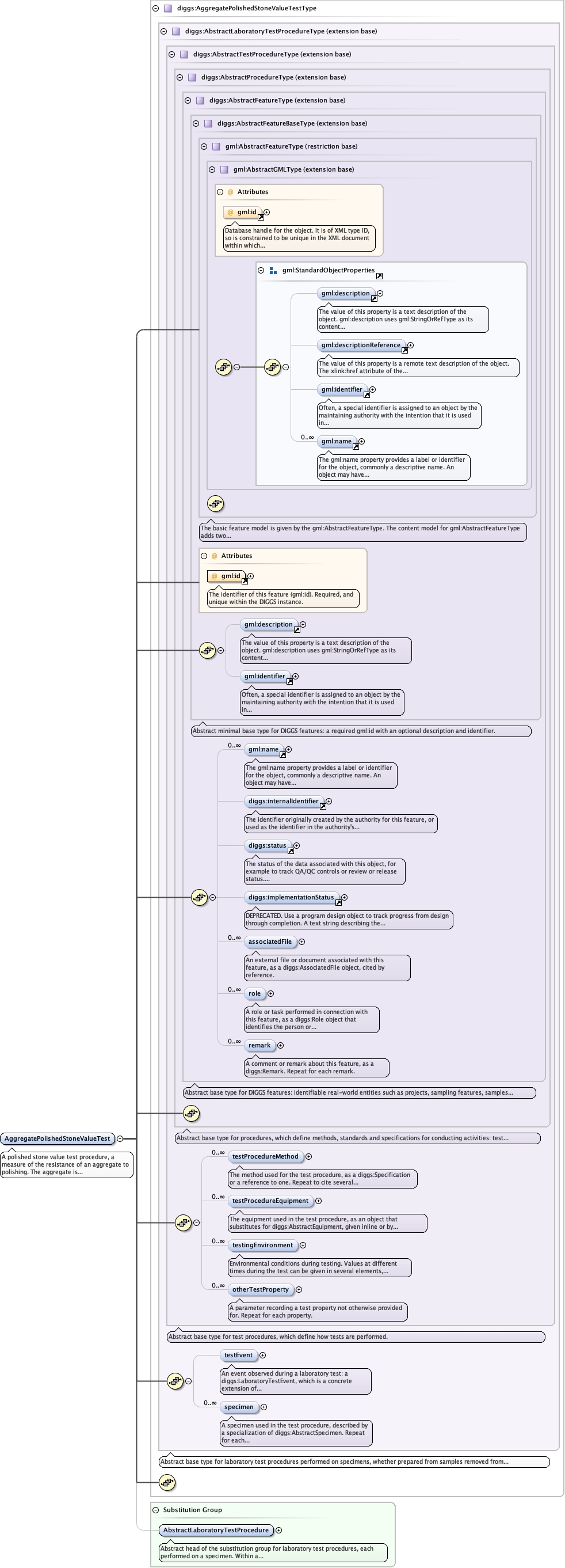

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureType_testEventAbstractTypes_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureType_specimenAbstractTypes_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureTypeExtProcedures_xsd_Complex_Type_diggs_AggregatePolishedStoneValueTestType.tmp#AggregatePolishedStoneValueTestTypeAbstractTypes_xsd_Element_diggs_AbstractLaboratoryTestProcedure.tmp#AbstractLaboratoryTestProcedure
Type diggs:AggregatePolishedStoneValueTestType
Type hierarchy
Properties
content complex
abstract false
Substitution Group Affiliation
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:remark, diggs:role, diggs:specimen, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, gml:description, gml:identifier, gml:name
Instance

<diggs:AggregatePolishedStoneValueTest gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,1}</diggs:testEvent>
  <diggs:specimen xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:specimen>
</diggs:AggregatePolishedStoneValueTest>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="AggregatePolishedStoneValueTest" type="diggs:AggregatePolishedStoneValueTestType" abstract="false" substitutionGroup="diggs:AbstractLaboratoryTestProcedure">
  <annotation>
    <documentation>A polished stone value test procedure, a measure of the resistance of an aggregate to polishing. The aggregate is subjected to a standard polishing process and then tested with the Portable Skid Resistance Tester.</documentation>
  </annotation>
</element>
