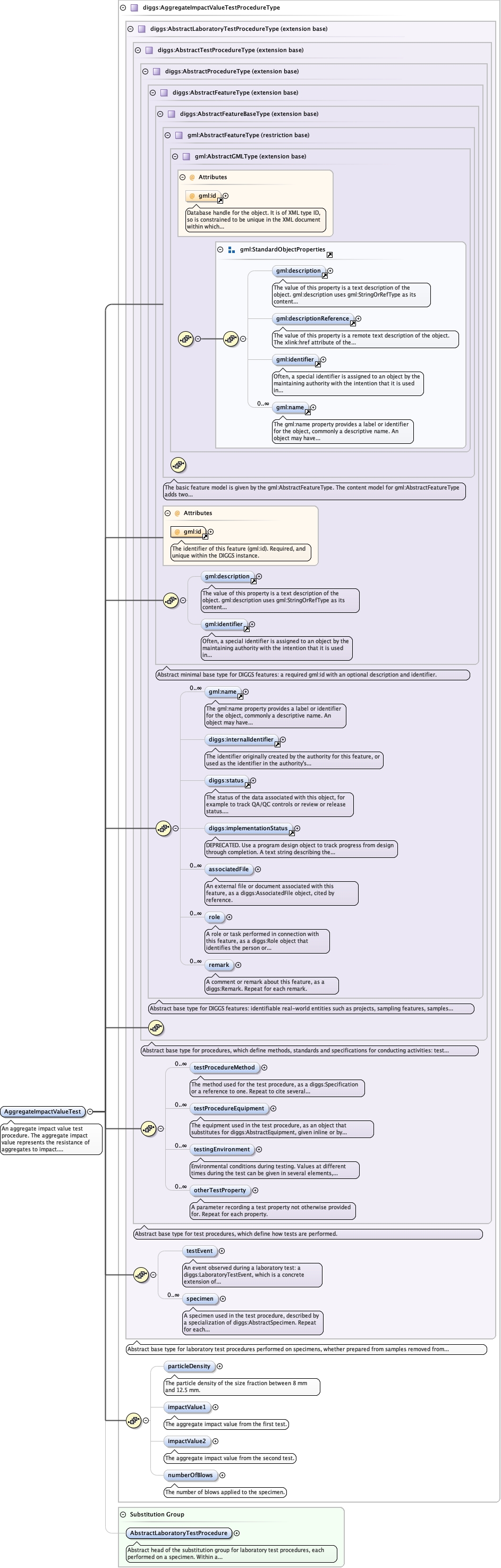

Schema documentation for component diggs:AggregateImpactValueTest

An aggregate impact value test procedure. The aggregate impact value represents the resistance of aggregates to impact. Aggregate passing the 12.5 mm sieve and retained on the 10 mm sieve is placed in three layers in a steel cup on the base of the impact testing machine, each layer tamped with 25 blows. A metal hammer of 13.5 to 14 kg falls freely 380 mm onto the specimen for 15 blows, the crushed aggregate is passed through the 2.36 mm sieve, and the impact value is the percentage of the sample mass that passes.

<diggs:AggregateImpactValueTest gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,1}</diggs:testEvent>
  <diggs:specimen xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:specimen>
  <diggs:particleDensity howDetermined="" qualifier="" uom="">{0,1}</diggs:particleDensity>
  <diggs:impactValue1 howDetermined="" qualifier="" uom="">{0,1}</diggs:impactValue1>
  <diggs:impactValue2 howDetermined="" qualifier="" uom="">{0,1}</diggs:impactValue2>
  <diggs:numberOfBlows>{0,1}</diggs:numberOfBlows>
</diggs:AggregateImpactValueTest>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="AggregateImpactValueTest" type="diggs:AggregateImpactValueTestProcedureType" abstract="false" substitutionGroup="diggs:AbstractLaboratoryTestProcedure"> <annotation> <documentation>An aggregate impact value test procedure. The aggregate impact value represents the resistance of aggregates to impact. Aggregate passing the 12.5 mm sieve and retained on the 10 mm sieve is placed in three layers in a steel cup on the base of the impact testing machine, each layer tamped with 25 blows. A metal hammer of 13.5 to 14 kg falls freely 380 mm onto the specimen for 15 blows, the crushed aggregate is passed through the 2.36 mm sieve, and the impact value is the percentage of the sample mass that passes.</documentation> </annotation> </element>
