Element diggs_geo:UnconfinedCompressiveStrengthTest
Namespace http://diggsml.org/schemas/3/geotechnical
Annotations

An object that describes an unconfined compressive strength test procedure. The Compressive strength of a material is that value of uniaxial
compressive stress reached when the material fails

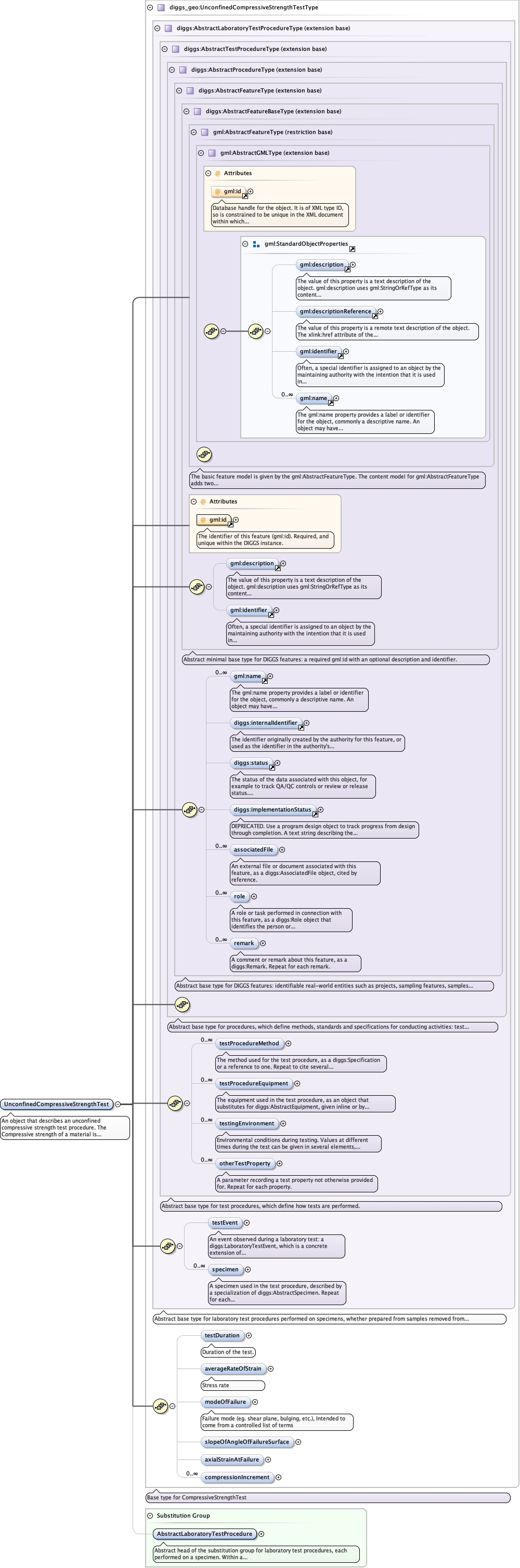

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureType_testEventAbstractTypes_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureType_specimenAbstractTypes_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureTypeDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_UnconfinedCompressiveStrengthTestType.tmp#http___diggsml.org_schemas_3_geotechnical_UnconfinedCompressiveStrengthTestType_testDurationDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_UnconfinedCompressiveStrengthTestType.tmp#http___diggsml.org_schemas_3_geotechnical_UnconfinedCompressiveStrengthTestType_averageRateOfStrainDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_UnconfinedCompressiveStrengthTestType.tmp#http___diggsml.org_schemas_3_geotechnical_UnconfinedCompressiveStrengthTestType_modeOfFailureDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_UnconfinedCompressiveStrengthTestType.tmp#http___diggsml.org_schemas_3_geotechnical_UnconfinedCompressiveStrengthTestType_slopeOfAngleOfFailureSurfaceDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_UnconfinedCompressiveStrengthTestType.tmp#http___diggsml.org_schemas_3_geotechnical_UnconfinedCompressiveStrengthTestType_axialStrainAtFailureDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_UnconfinedCompressiveStrengthTestType.tmp#http___diggsml.org_schemas_3_geotechnical_UnconfinedCompressiveStrengthTestType_compressionIncrementDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_UnconfinedCompressiveStrengthTestType.tmp#http___diggsml.org_schemas_3_geotechnical_UnconfinedCompressiveStrengthTestTypeAbstractTypes_xsd_Element_diggs_AbstractLaboratoryTestProcedure.tmp#AbstractLaboratoryTestProcedure
Type diggs_geo:UnconfinedCompressiveStrengthTestType
Type hierarchy
Properties
content complex
abstract false
Substitution Group Affiliation
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:remark, diggs:role, diggs:specimen, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, diggs_geo:averageRateOfStrain, diggs_geo:axialStrainAtFailure, diggs_geo:compressionIncrement, diggs_geo:modeOfFailure, diggs_geo:slopeOfAngleOfFailureSurface, diggs_geo:testDuration, gml:description, gml:identifier, gml:name
Instance

<diggs_geo:UnconfinedCompressiveStrengthTest gml:id="" xmlns:diggs_geo="http://diggsml.org/schemas/3/geotechnical" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:diggs="http://diggsml.org/schemas/3">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,1}</diggs:testEvent>
  <diggs:specimen xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:specimen>
  <diggs_geo:testDuration howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:testDuration>
  <diggs_geo:averageRateOfStrain howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:averageRateOfStrain>
  <diggs_geo:modeOfFailure codeSpace="">{0,1}</diggs_geo:modeOfFailure>
  <diggs_geo:slopeOfAngleOfFailureSurface howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:slopeOfAngleOfFailureSurface>
  <diggs_geo:axialStrainAtFailure howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:axialStrainAtFailure>
  <diggs_geo:compressionIncrement>{0,unbounded}</diggs_geo:compressionIncrement>
</diggs_geo:UnconfinedCompressiveStrengthTest>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element abstract="false" name="UnconfinedCompressiveStrengthTest" substitutionGroup="diggs:AbstractLaboratoryTestProcedure" type="diggs_geo:UnconfinedCompressiveStrengthTestType">
  <annotation>
    <appinfo>DEPRECATED 1/26. Please use equivalent element in the diggs: namespace</appinfo>
    <documentation>An object that describes an unconfined compressive strength test procedure. The Compressive strength of a material is that value of uniaxial compressive stress reached when the material fails</documentation>
  </annotation>
</element>
