Schema documentation for component diggs

An object describing the properties of a laboratory permeability test procedure. The objective of the permeability test is to determine the coefficient of permeability of the soil. Several different laboratory testing methods can be performed to more accurately determine permeability, including constant-head and falling-head types.

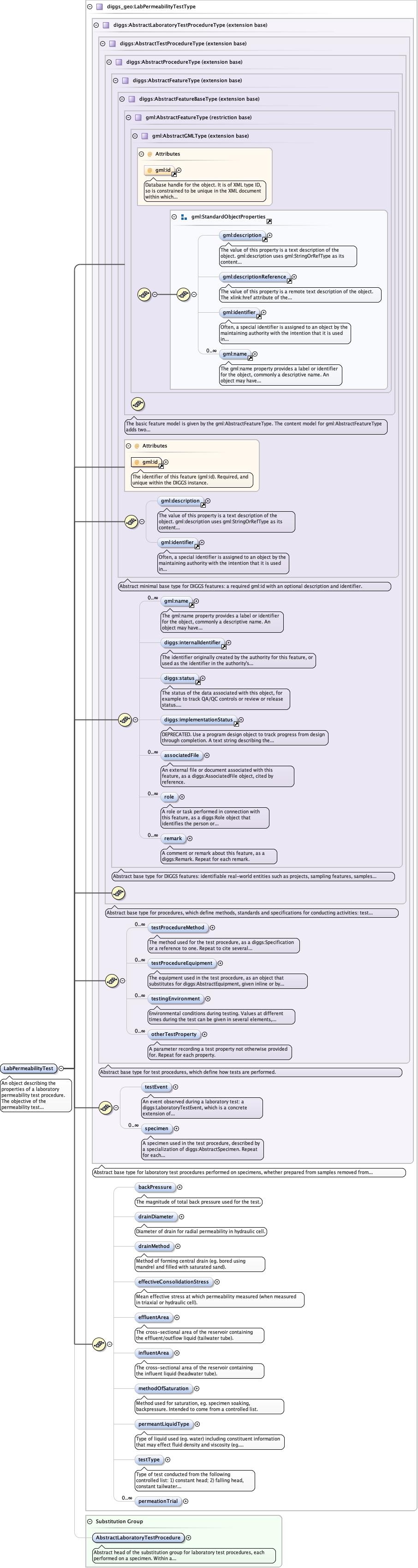

<diggs_geo:LabPermeabilityTest gml:id="" xmlns:diggs_geo="http://diggsml.org/schemas/3/geotechnical" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:diggs="http://diggsml.org/schemas/3">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,1}</diggs:testEvent>
  <diggs:specimen xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:specimen>
  <diggs_geo:backPressure howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:backPressure>
  <diggs_geo:drainDiameter howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:drainDiameter>
  <diggs_geo:drainMethod codeSpace="">{0,1}</diggs_geo:drainMethod>
  <diggs_geo:effectiveConsolidationStress howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:effectiveConsolidationStress>
  <diggs_geo:effluentArea howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:effluentArea>
  <diggs_geo:influentArea howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:influentArea>
  <diggs_geo:methodOfSaturation codeSpace="">{0,1}</diggs_geo:methodOfSaturation>
  <diggs_geo:permeantLiquidType codeSpace="">{0,1}</diggs_geo:permeantLiquidType>
  <diggs_geo:testType>{0,1}</diggs_geo:testType>
  <diggs_geo:permeationTrial>{0,unbounded}</diggs_geo:permeationTrial>
</diggs_geo:LabPermeabilityTest>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element abstract="false" name="LabPermeabilityTest" substitutionGroup="diggs:AbstractLaboratoryTestProcedure" type="diggs_geo:LabPermeabilityTestType"> <annotation> <appinfo>DEPRECATED 1/26. Please use equivalent element in the diggs: namespace</appinfo> <documentation>An object describing the properties of a laboratory permeability test procedure. The objective of the permeability test is to determine the coefficient of permeability of the soil. Several different laboratory testing methods can be performed to more accurately determine permeability, including constant-head and falling-head types.</documentation> </annotation> </element>
