Element diggs:TaperType / diggs:intervalLocation
Namespace http://diggsml.org/schemas/3
Annotations

A property that defines the top and bottom depths of the
interval being described.

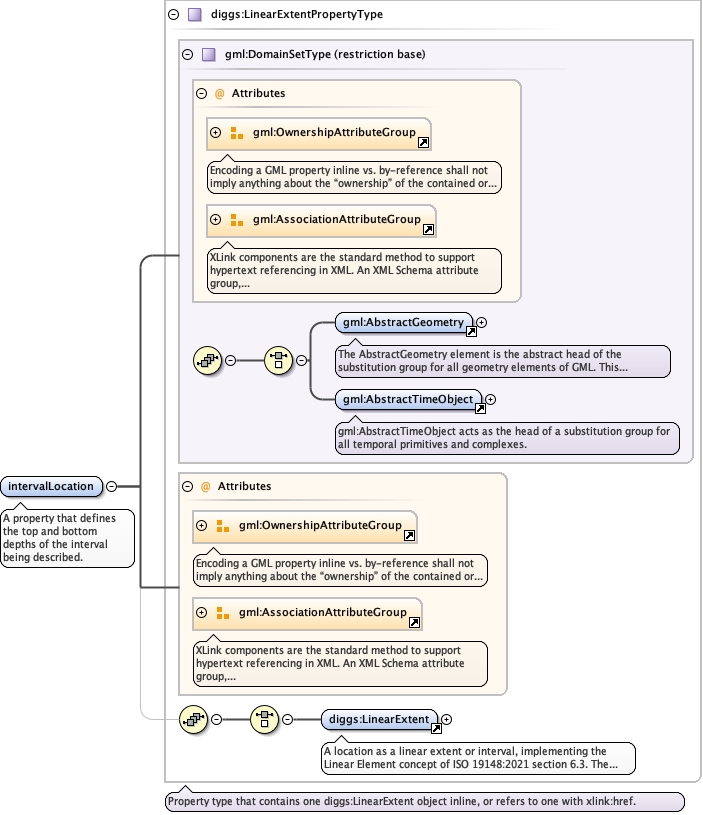

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCore_xsd_Element_diggs_LinearExtent.tmp#LinearExtentCore_xsd_Complex_Type_diggs_LinearExtentPropertyType.tmp#LinearExtentPropertyType
Type diggs:LinearExtentPropertyType
Type hierarchy
Properties
content complex
Model
Children diggs:LinearExtent
Instance

<diggs:intervalLocation owns="false" xlink:href="" nilReason="" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:LinearExtent axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:LinearExtent>
</diggs:intervalLocation>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="intervalLocation" type="diggs:LinearExtentPropertyType">
  <annotation>
    <documentation>A property that defines the top and bottom depths of the interval being described.</documentation>
  </annotation>
</element>
Element diggs:TaperType / diggs:widthAtTop
Namespace http://diggsml.org/schemas/3
Annotations

Width of the pile at the top of the
interval.

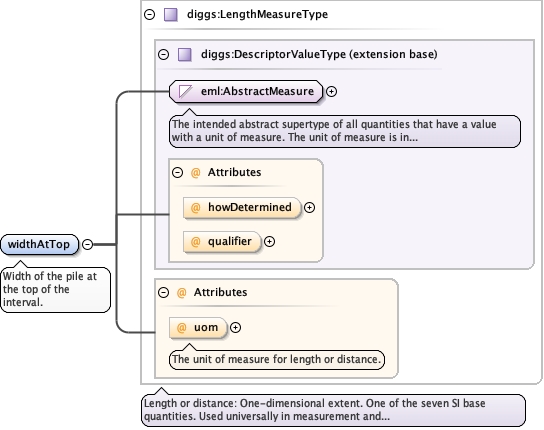

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="widthAtTop" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Width of the pile at the top of the interval.</documentation>
  </annotation>
</element>
Element diggs:TaperType / diggs:widthAtBottom
Namespace http://diggsml.org/schemas/3
Annotations

Width of the pile at the bottom of the
interval.

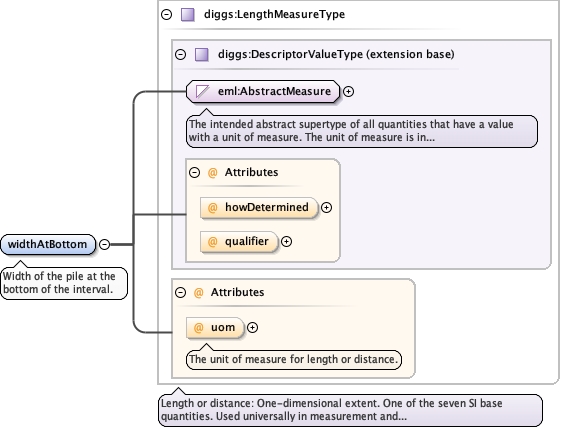

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="widthAtBottom" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Width of the pile at the bottom of the interval.</documentation>
  </annotation>
</element>
Element diggs:TaperType / diggs:pileMaterial
Namespace http://diggsml.org/schemas/3
Annotations

The material the pile is constructed of in this
interval.

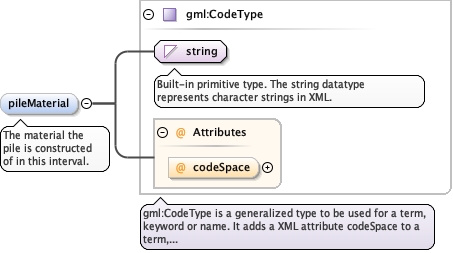

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="pileMaterial" type="gml:CodeType">
  <annotation>
    <documentation>The material the pile is constructed of in this interval.</documentation>
  </annotation>
</element>
Element diggs:TaperType / diggs:pileShape
Namespace http://diggsml.org/schemas/3
Annotations

The shape of the pile cross section.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="pileShape" type="gml:CodeType">
  <annotation>
    <documentation>The shape of the pile cross section.</documentation>
  </annotation>
</element>
Complex Type diggs:TaperType
Namespace http://diggsml.org/schemas/3
Annotations

Defines properties of the pile over a specified depth
interval.

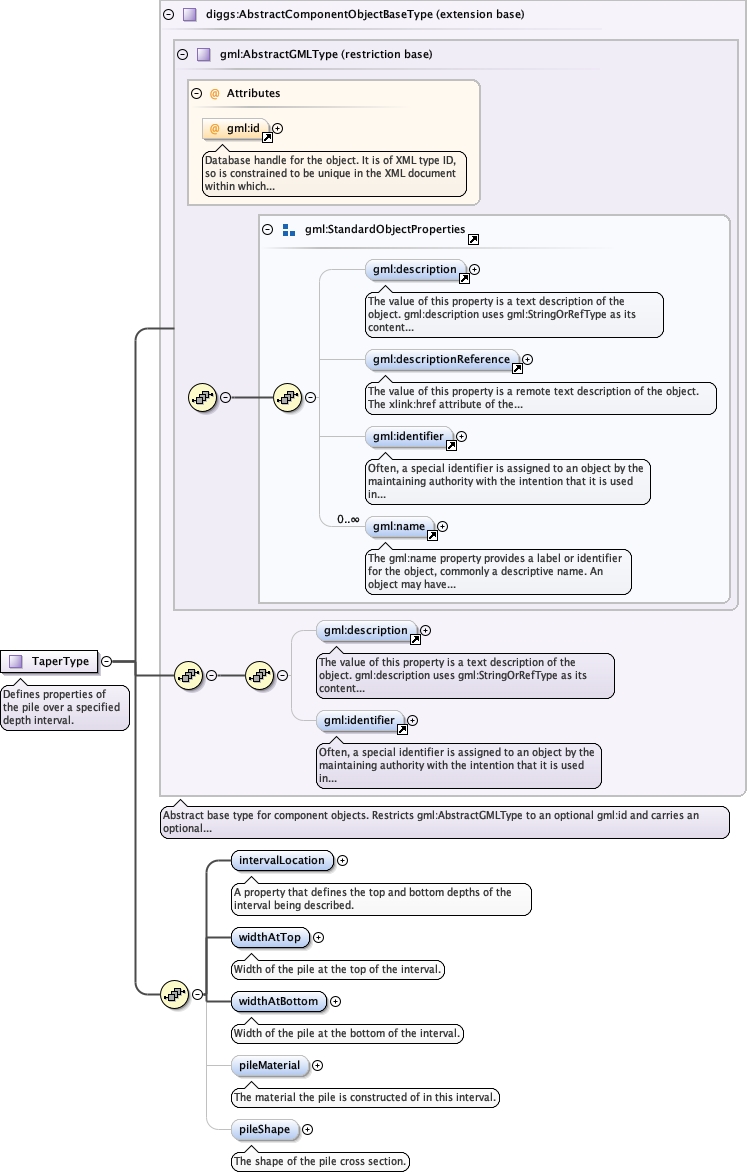

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeDeepFoundation_xsd_Complex_Type_diggs_TaperType.tmp#TaperType_intervalLocationDeepFoundation_xsd_Complex_Type_diggs_TaperType.tmp#TaperType_widthAtTopDeepFoundation_xsd_Complex_Type_diggs_TaperType.tmp#TaperType_widthAtBottomDeepFoundation_xsd_Complex_Type_diggs_TaperType.tmp#TaperType_pileMaterialDeepFoundation_xsd_Complex_Type_diggs_TaperType.tmp#TaperType_pileShape
Type extension of diggs:AbstractComponentObjectBaseType
Type hierarchy
Used by
Element diggs:Taper
Model
Children diggs:intervalLocation, diggs:pileMaterial, diggs:pileShape, diggs:widthAtBottom, diggs:widthAtTop, gml:description, gml:identifier
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="TaperType">
  <annotation>
    <documentation>Defines properties of the pile over a specified depth interval.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractComponentObjectBaseType">
      <sequence>
        <element name="intervalLocation" type="diggs:LinearExtentPropertyType">
          <annotation>
            <documentation>A property that defines the top and bottom depths of the interval being described.</documentation>
          </annotation>
        </element>
        <element name="widthAtTop" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Width of the pile at the top of the interval.</documentation>
          </annotation>
        </element>
        <element name="widthAtBottom" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Width of the pile at the bottom of the interval.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pileMaterial" type="gml:CodeType">
          <annotation>
            <documentation>The material the pile is constructed of in this interval.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pileShape" type="gml:CodeType">
          <annotation>
            <documentation>The shape of the pile cross section.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
