Element diggs:WaterStrike
Namespace http://diggsml.org/schemas/3
Annotations

One or more water level readings taken on encountering, or expecting to encounter,
water during drilling. A strike may be individual measurements taken as drilling
progresses, or a series of measurements taken over a short interval while drilling
is halted at a depth.

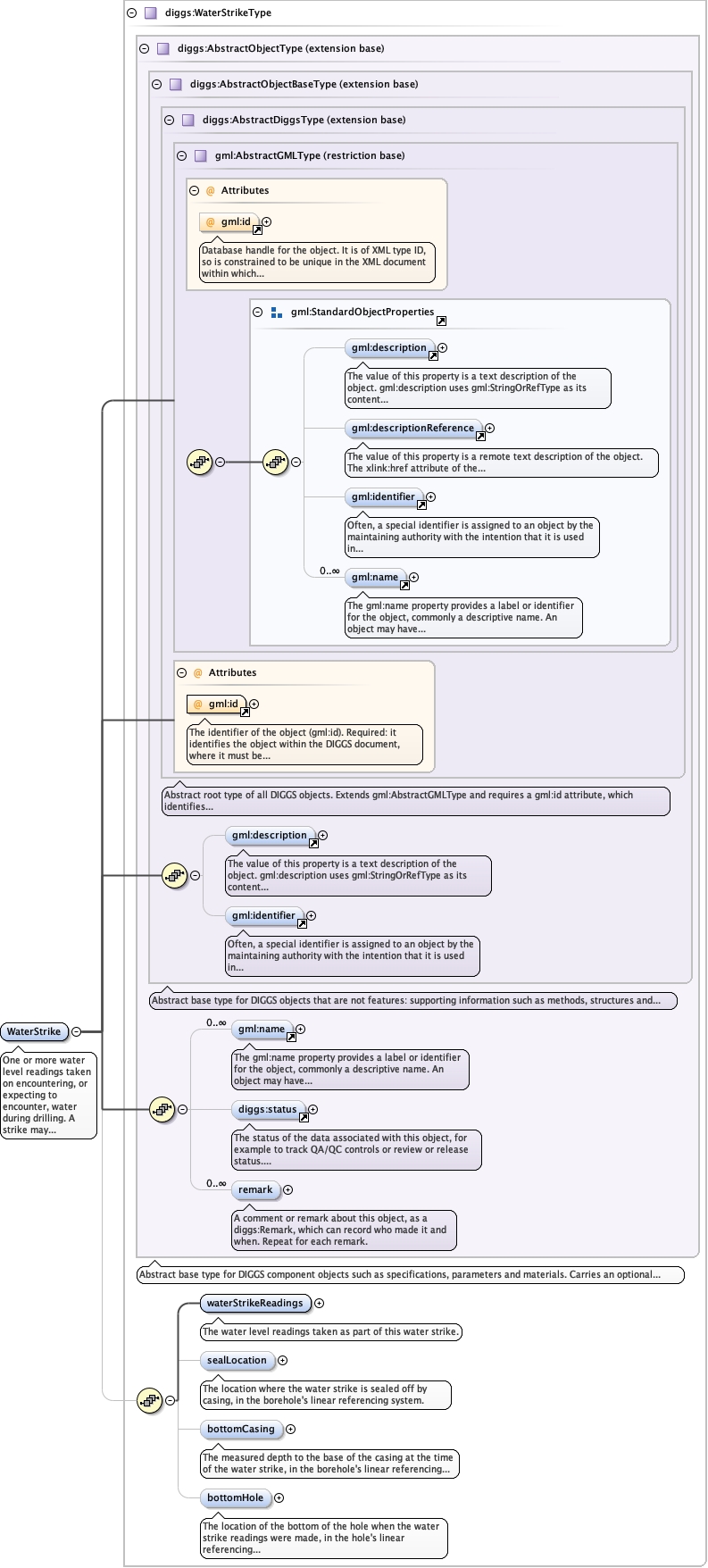

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeCore_xsd_Complex_Type_diggs_WaterStrikeType.tmp#WaterStrikeType_waterStrikeReadingsCore_xsd_Complex_Type_diggs_WaterStrikeType.tmp#WaterStrikeType_sealLocationCore_xsd_Complex_Type_diggs_WaterStrikeType.tmp#WaterStrikeType_bottomCasingCore_xsd_Complex_Type_diggs_WaterStrikeType.tmp#WaterStrikeType_bottomHoleCore_xsd_Complex_Type_diggs_WaterStrikeType.tmp#WaterStrikeType
Type diggs:WaterStrikeType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:bottomCasing, diggs:bottomHole, diggs:remark, diggs:sealLocation, diggs:status, diggs:waterStrikeReadings, gml:description, gml:identifier, gml:name
Instance

<diggs:WaterStrike gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:waterStrikeReadings>{1,1}</diggs:waterStrikeReadings>
  <diggs:sealLocation owns="false" xlink:href="" nilReason="">{0,1}</diggs:sealLocation>
  <diggs:bottomCasing owns="false" xlink:href="" nilReason="">{0,1}</diggs:bottomCasing>
  <diggs:bottomHole owns="false" xlink:href="" nilReason="">{0,1}</diggs:bottomHole>
</diggs:WaterStrike>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="WaterStrike" type="diggs:WaterStrikeType">
  <annotation>
    <documentation>One or more water level readings taken on encountering, or expecting to encounter, water during drilling. A strike may be individual measurements taken as drilling progresses, or a series of measurements taken over a short interval while drilling is halted at a depth.</documentation>
  </annotation>
</element>
