Element diggs:PlannedPositions
Namespace http://diggsml.org/schemas/3
Annotations

The planned layout of a population of sampling features, either as an exact, indexed
grid or as a general pattern with no grid geometry defined.

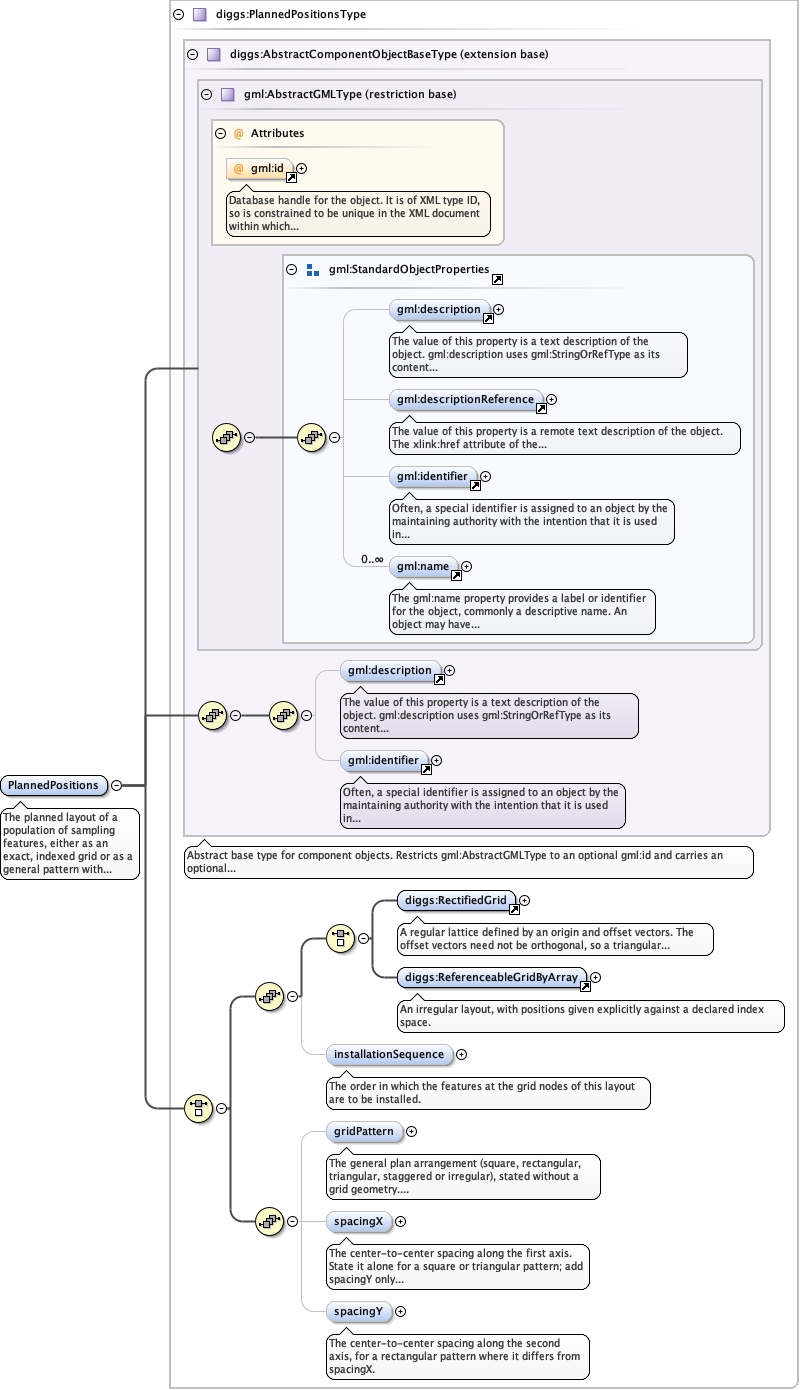

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeCore_xsd_Element_diggs_RectifiedGrid.tmp#http___diggsml.org_schemas_3_RectifiedGridCore_xsd_Element_diggs_ReferenceableGridByArray.tmp#ReferenceableGridByArrayCore_xsd_Complex_Type_diggs_PlannedPositionsType.tmp#PlannedPositionsType_installationSequenceCore_xsd_Complex_Type_diggs_PlannedPositionsType.tmp#PlannedPositionsType_gridPatternCore_xsd_Complex_Type_diggs_PlannedPositionsType.tmp#PlannedPositionsType_spacingXCore_xsd_Complex_Type_diggs_PlannedPositionsType.tmp#PlannedPositionsType_spacingYCore_xsd_Complex_Type_diggs_PlannedPositionsType.tmp#PlannedPositionsType
Type diggs:PlannedPositionsType
Type hierarchy
Properties
content complex
Used by
Complex Type diggs:PlannedPositionsPropertyType
Model
gml:description{0,1} , gml:identifier{0,1} , (((diggs:RectifiedGrid | diggs:ReferenceableGridByArray) , diggs:installationSequence{0,1}) | (diggs:gridPattern{0,1} , diggs:spacingX{0,1} , diggs:spacingY{0,1}))
Children diggs:RectifiedGrid, diggs:ReferenceableGridByArray, diggs:gridPattern, diggs:installationSequence, diggs:spacingX, diggs:spacingY, gml:description, gml:identifier
Instance

<diggs:PlannedPositions gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:RectifiedGrid axisLabels="" dimension="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:RectifiedGrid>
  <diggs:ReferenceableGridByArray axisLabels="" dimension="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:ReferenceableGridByArray>
  <diggs:installationSequence xlink:href="" nilReason="">{0,1}</diggs:installationSequence>
  <diggs:gridPattern codeSpace="">{0,1}</diggs:gridPattern>
  <diggs:spacingX howDetermined="" qualifier="" uom="">{0,1}</diggs:spacingX>
  <diggs:spacingY howDetermined="" qualifier="" uom="">{0,1}</diggs:spacingY>
</diggs:PlannedPositions>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="PlannedPositions" type="diggs:PlannedPositionsType">
  <annotation>
    <documentation>The planned layout of a population of sampling features, either as an exact, indexed grid or as a general pattern with no grid geometry defined.</documentation>
  </annotation>
</element>
