Schema documentation for component diggs:ReferenceableGridByArray

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Source

Used by

Element diggs:ReferenceableGridByArray

Namespace

http://diggsml.org/schemas/3

Annotations

A grid whose node positions are given explicitly as an ordered list of coordinates
(posList), rather than derived from an origin and offset vectors
(diggs:RectifiedGrid). Use it for a non-uniform or terrain-draped grid, for example
a geophysical inversion mesh, where node spacing is irregular on one or more axes.
It mirrors gmlrgrid:ReferenceableGridByArrayType of GML 3.3.

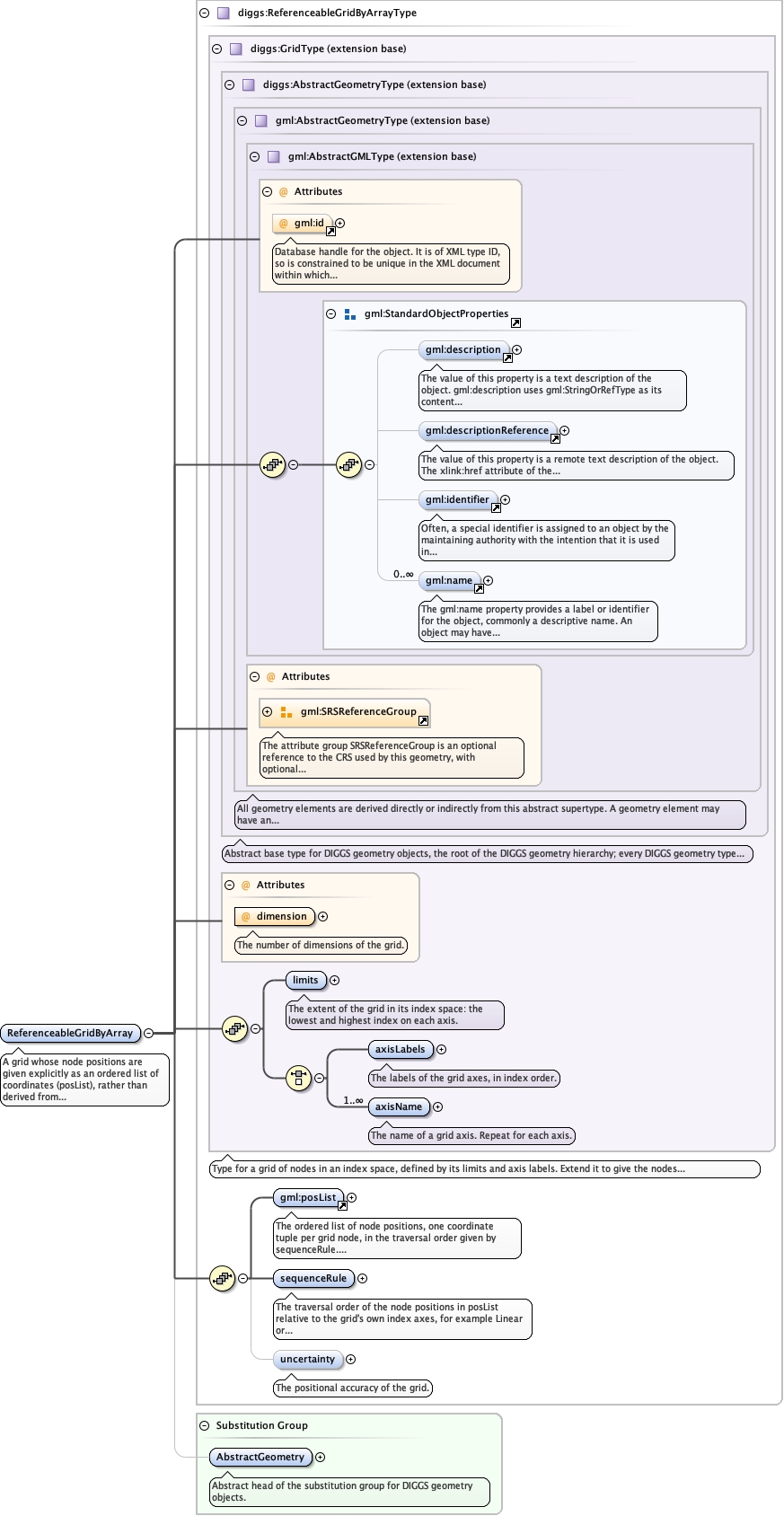

Diagram

Type

diggs:ReferenceableGridByArrayType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractGeometryType
  - diggs:AbstractGeometryType
    - diggs:GridType
      - diggs:ReferenceableGridByArrayType

Properties

content

complex

Substitution Group Affiliation

diggs:AbstractGeometry

Used by

Complex Type

diggs:PlannedPositionsType

Model

gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , diggs:limits , (diggs:axisLabels | diggs:axisName+) , gml:posList , diggs:sequenceRule , diggs:uncertainty{0,1}

Children

diggs:axisLabels, diggs:axisName, diggs:limits, diggs:sequenceRule, diggs:uncertainty, gml:description, gml:descriptionReference, gml:identifier, gml:name, gml:posList

Instance

<diggs:ReferenceableGridByArray axisLabels="" dimension="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:descriptionReference xlink:href="" nilReason="" owns="false">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:limits>{1,1}</diggs:limits>
  <diggs:axisLabels>{1,1}</diggs:axisLabels>
  <diggs:axisName>{1,unbounded}</diggs:axisName>
  <gml:posList axisLabels="" count="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:posList>
  <diggs:sequenceRule axisOrder="">{1,1}</diggs:sequenceRule>
  <diggs:uncertainty>{0,1}</diggs:uncertainty>
</diggs:ReferenceableGridByArray>

Attributes

QName

Type

Use

Annotation

axisLabels

gml:NCNameList

optional

dimension

positiveInteger

required

The number of dimensions of the grid.

gml:id

optional

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

srsDimension

positiveInteger

optional

srsName

anyURI

optional

uomLabels

gml:NCNameList

optional

Source

<element name="ReferenceableGridByArray" substitutionGroup="diggs:AbstractGeometry" type="diggs:ReferenceableGridByArrayType">
  <annotation>
    <documentation>A grid whose node positions are given explicitly as an ordered list of coordinates (posList), rather than derived from an origin and offset vectors (diggs:RectifiedGrid). Use it for a non-uniform or terrain-draped grid, for example a geophysical inversion mesh, where node spacing is irregular on one or more axes. It mirrors gmlrgrid:ReferenceableGridByArrayType of GML 3.3.</documentation>
  </annotation>
</element>
