Complex Type diggs:PlannedPositionsPropertyType
Namespace http://diggsml.org/schemas/3
Annotations

Property type that contains one diggs:PlannedPositions object inline, or refers to
one with xlink:href. Where the layout is an indexed grid rather than a general
pattern, a realized feature identifies the planned position it fulfils through
realizesGridIndex. diggs:MultiPointLocation is not an option for a grid, since it
declares no index space; a scattered or irregular layout is a degenerate
one-dimensional ReferenceableGridByArray instead.

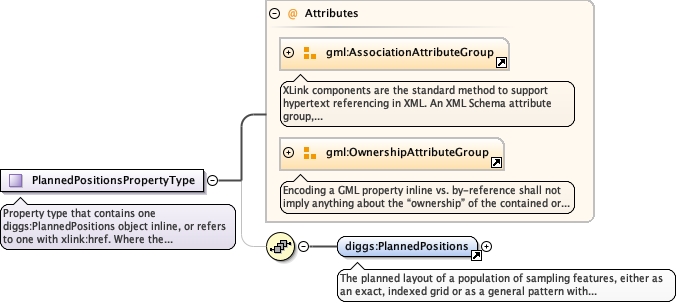

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupCore_xsd_Element_diggs_PlannedPositions_1.tmp#http___diggsml.org_schemas_3_PlannedPositions
Used by
Model
Children diggs:PlannedPositions
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<complexType name="PlannedPositionsPropertyType">
  <annotation>
    <documentation>Property type that contains one diggs:PlannedPositions object inline, or refers to one with xlink:href. Where the layout is an indexed grid rather than a general pattern, a realized feature identifies the planned position it fulfils through realizesGridIndex. diggs:MultiPointLocation is not an option for a grid, since it declares no index space; a scattered or irregular layout is a degenerate one-dimensional ReferenceableGridByArray instead.</documentation>
  </annotation>
  <sequence minOccurs="0">
    <element ref="diggs:PlannedPositions"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
  <attributeGroup ref="gml:OwnershipAttributeGroup"/>
</complexType>
