Element diggs:Lithology
Namespace http://diggsml.org/schemas/3
Annotations

The description of a rock or soil on the basis of characteristics such as color,
mineralogic composition and grain size, both as text and as controlled terms that
allow machine parsing.

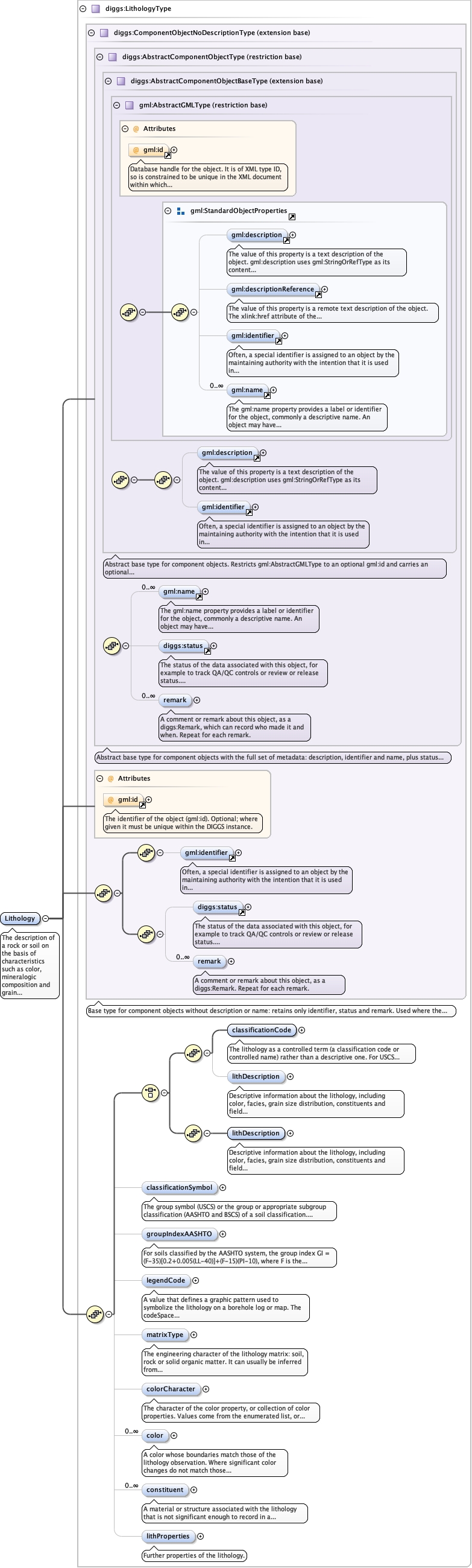

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Complex_Type_diggs_ComponentObjectNoDescriptionType.tmp#ComponentObjectNoDescriptionType_remarkCommon_xsd_Complex_Type_diggs_ComponentObjectNoDescriptionType.tmp#ComponentObjectNoDescriptionTypeCore_xsd_Complex_Type_diggs_LithologyType.tmp#LithologyType_classificationCodeCore_xsd_Complex_Type_diggs_LithologyType.tmp#LithologyType_lithDescriptionCore_xsd_Complex_Type_diggs_LithologyType.tmp#LithologyType_classificationSymbolCore_xsd_Complex_Type_diggs_LithologyType.tmp#LithologyType_groupIndexAASHTOCore_xsd_Complex_Type_diggs_LithologyType.tmp#LithologyType_legendCodeCore_xsd_Complex_Type_diggs_LithologyType.tmp#LithologyType_matrixTypeCore_xsd_Complex_Type_diggs_LithologyType.tmp#LithologyType_colorCharacterCore_xsd_Complex_Type_diggs_LithologyType.tmp#LithologyType_colorCore_xsd_Complex_Type_diggs_LithologyType.tmp#LithologyType_constituentCore_xsd_Complex_Type_diggs_LithologyType.tmp#LithologyType_lithPropertiesCore_xsd_Complex_Type_diggs_LithologyType.tmp#LithologyType
Type diggs:LithologyType
Type hierarchy
Properties
content complex
mixed false
Used by
Model
Children diggs:classificationCode, diggs:classificationSymbol, diggs:color, diggs:colorCharacter, diggs:constituent, diggs:groupIndexAASHTO, diggs:legendCode, diggs:lithDescription, diggs:lithProperties, diggs:matrixType, diggs:remark, diggs:status, gml:identifier
Instance

<diggs:Lithology gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:classificationCode codeSpace="" howDetermined="">{1,1}</diggs:classificationCode>
  <diggs:lithDescription howDetermined="" legendCode="">{0,1}</diggs:lithDescription>
  <diggs:lithDescription howDetermined="" legendCode="">{1,1}</diggs:lithDescription>
  <diggs:classificationSymbol codeSpace="">{0,1}</diggs:classificationSymbol>
  <diggs:groupIndexAASHTO>{0,1}</diggs:groupIndexAASHTO>
  <diggs:legendCode codeSpace="" xlink:href="" mimeType="">{0,1}</diggs:legendCode>
  <diggs:matrixType>{0,1}</diggs:matrixType>
  <diggs:colorCharacter>{0,1}</diggs:colorCharacter>
  <diggs:color>{0,unbounded}</diggs:color>
  <diggs:constituent>{0,unbounded}</diggs:constituent>
  <diggs:lithProperties>{0,1}</diggs:lithProperties>
</diggs:Lithology>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="Lithology" type="diggs:LithologyType">
  <annotation>
    <documentation>The description of a rock or soil on the basis of characteristics such as color, mineralogic composition and grain size, both as text and as controlled terms that allow machine parsing.</documentation>
  </annotation>
</element>
