Element diggs:Equipment
Namespace http://diggsml.org/schemas/3
Annotations

Generic equipment that carries only the properties of the base type. Use it where a
more specialized equipment object is not needed or not developed.

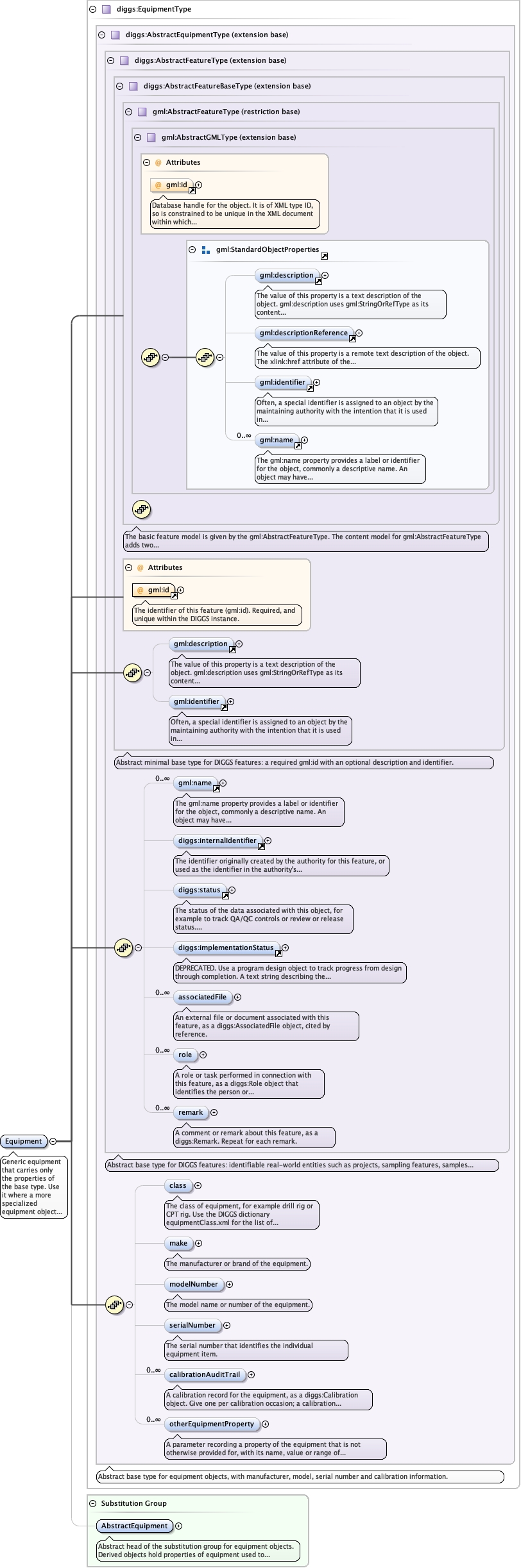

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_classAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_makeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_modelNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_serialNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_calibrationAuditTrailAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_otherEquipmentPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentTypeCore_xsd_Complex_Type_diggs_EquipmentType.tmp#EquipmentTypeAbstractTypes_xsd_Element_diggs_AbstractEquipment.tmp#AbstractEquipment
Type diggs:EquipmentType
Type hierarchy
Properties
content complex
abstract false
Substitution Group Affiliation
Model
Children diggs:associatedFile, diggs:calibrationAuditTrail, diggs:class, diggs:implementationStatus, diggs:internalIdentifier, diggs:make, diggs:modelNumber, diggs:otherEquipmentProperty, diggs:remark, diggs:role, diggs:serialNumber, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:Equipment gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:class codeSpace="">{0,1}</diggs:class>
  <diggs:make>{0,1}</diggs:make>
  <diggs:modelNumber>{0,1}</diggs:modelNumber>
  <diggs:serialNumber>{0,1}</diggs:serialNumber>
  <diggs:calibrationAuditTrail xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:calibrationAuditTrail>
  <diggs:otherEquipmentProperty>{0,unbounded}</diggs:otherEquipmentProperty>
</diggs:Equipment>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="Equipment" type="diggs:EquipmentType" substitutionGroup="diggs:AbstractEquipment" abstract="false">
  <annotation>
    <documentation>Generic equipment that carries only the properties of the base type. Use it where a more specialized equipment object is not needed or not developed.</documentation>
  </annotation>
</element>
