Element diggs:ComponentLithology
Namespace http://diggsml.org/schemas/3
Annotations

A distinct lithologic type that occurs within a lithologic zone (observation) and is
not described as part of the primary lithology. It occurs where the zone is
interbedded and complex enough that separating each lithologic layer is not
practical, or where one lithology occurs as an inclusion within another.

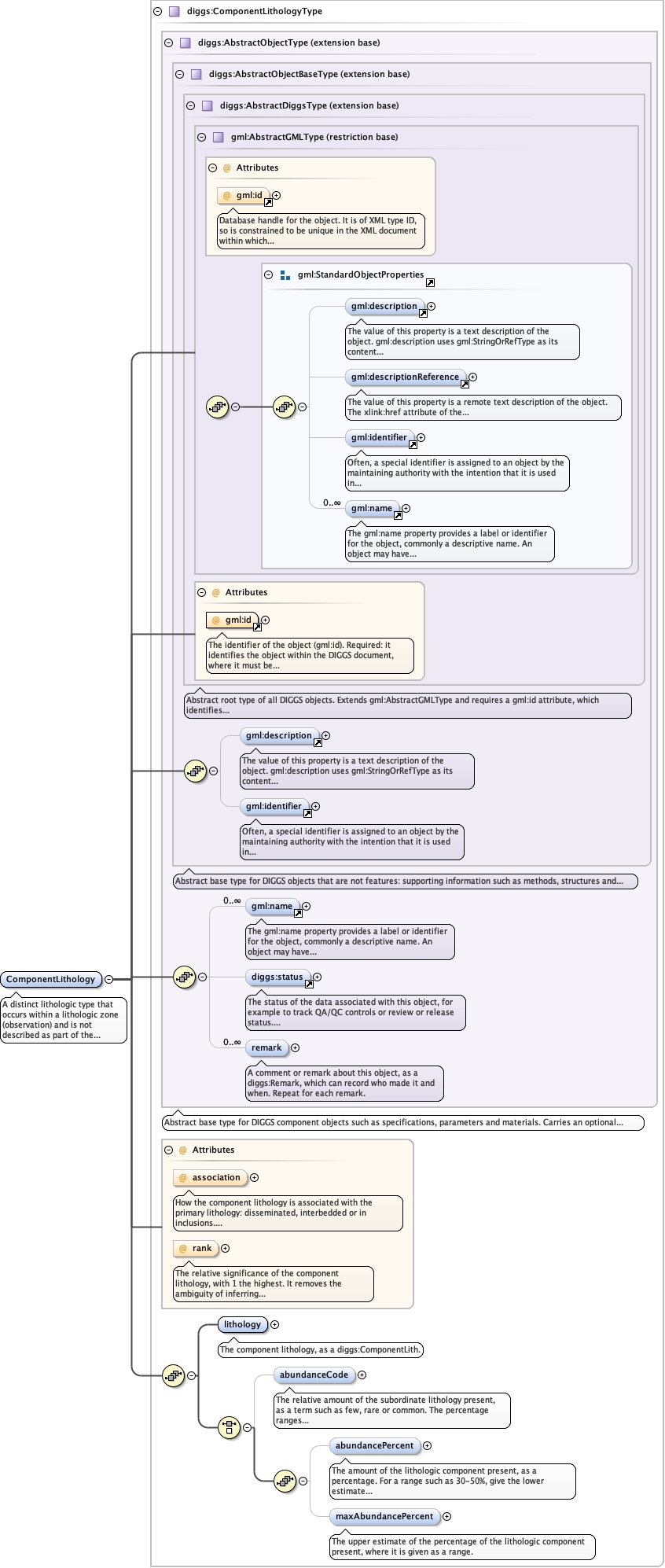

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeCore_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType_associationCore_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType_rankCore_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType_lithologyCore_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType_abundanceCodeCore_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType_abundancePercentCore_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType_maxAbundancePercentCore_xsd_Complex_Type_diggs_ComponentLithologyType.tmp#ComponentLithologyType
Type diggs:ComponentLithologyType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:abundanceCode, diggs:abundancePercent, diggs:lithology, diggs:maxAbundancePercent, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:ComponentLithology association="" gml:id="" rank="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:lithology>{1,1}</diggs:lithology>
  <diggs:abundanceCode codeSpace="">{0,1}</diggs:abundanceCode>
  <diggs:abundancePercent approximator="" byVolume="" uom="">{0,1}</diggs:abundancePercent>
  <diggs:maxAbundancePercent approximator="" byVolume="" uom="">{0,1}</diggs:maxAbundancePercent>
</diggs:ComponentLithology>
Attributes
QName Type Use Annotation
association diggs:LithologyCharacterEnumExtType optional
How the component lithology is associated with the primary lithology:
disseminated, interbedded or in inclusions. Values come from the
enumerated list, or "Other: xx", where xx is a user-defined term whose
meaning differs from every listed value (not a synonym of one).
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
rank positiveInteger optional
The relative significance of the component lithology, with 1 the
highest. It removes the ambiguity of inferring significance from
abundanceCode.
Source

<element name="ComponentLithology" type="diggs:ComponentLithologyType">
  <annotation>
    <documentation>A distinct lithologic type that occurs within a lithologic zone (observation) and is not described as part of the primary lithology. It occurs where the zone is interbedded and complex enough that separating each lithologic layer is not practical, or where one lithology occurs as an inclusion within another.</documentation>
  </annotation>
</element>
