Schema documentation for component diggs:ComponentLith

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Source

Used by

Element diggs:ComponentLith

Namespace

http://diggsml.org/schemas/3

Annotations

A lithology that is a component of a lithologic zone, with the same descriptive
properties as diggs:Lithology plus properties of the component.

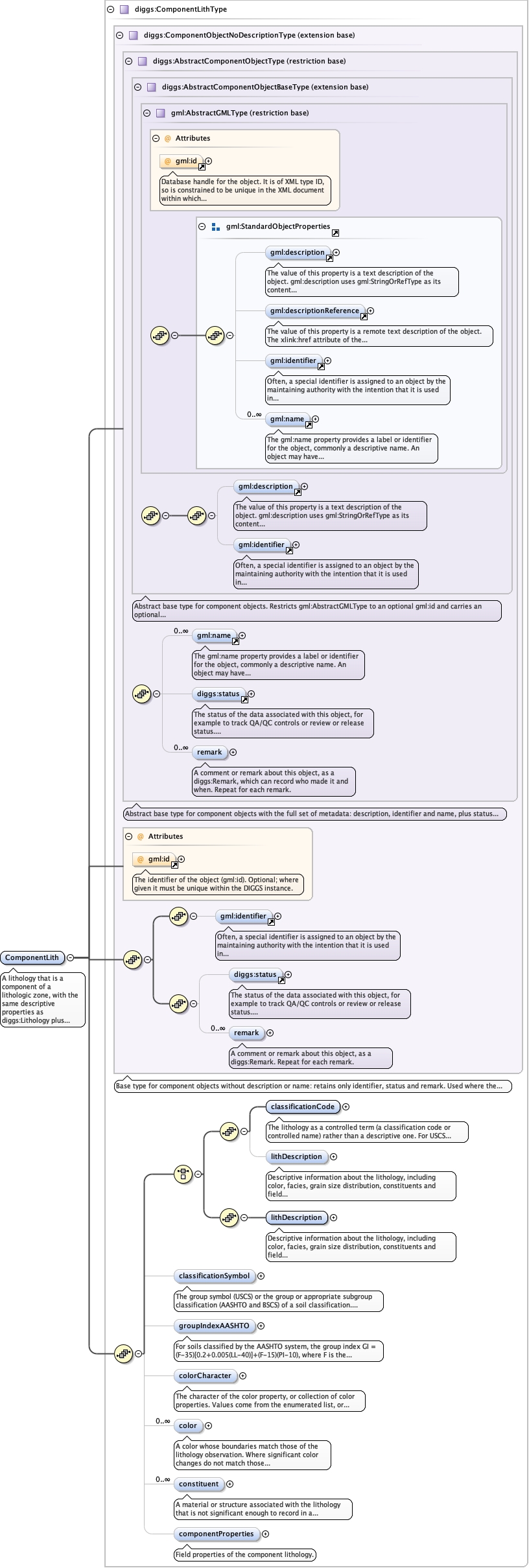

Diagram

Type

diggs:ComponentLithType

Type hierarchy

gml:AbstractGMLType
- diggs:AbstractComponentObjectBaseType
  - diggs:AbstractComponentObjectType
    - diggs:ComponentObjectNoDescriptionType
      - diggs:ComponentLithType

Properties

content	complex
abstract	false
mixed	false

Used by

Complex Type

diggs:ComponentLithPropertyType

Model

gml:identifier{0,1} , diggs:status{0,1} , diggs:remark* , ((diggs:classificationCode , diggs:lithDescription{0,1}) | (diggs:lithDescription)) , diggs:classificationSymbol{0,1} , diggs:groupIndexAASHTO{0,1} , diggs:colorCharacter{0,1} , diggs:color* , diggs:constituent* , diggs:componentProperties{0,1}

Children

diggs:classificationCode, diggs:classificationSymbol, diggs:color, diggs:colorCharacter, diggs:componentProperties, diggs:constituent, diggs:groupIndexAASHTO, diggs:lithDescription, diggs:remark, diggs:status, gml:identifier

Instance

<diggs:ComponentLith gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:classificationCode codeSpace="" howDetermined="">{1,1}</diggs:classificationCode>
  <diggs:lithDescription howDetermined="" legendCode="">{0,1}</diggs:lithDescription>
  <diggs:lithDescription howDetermined="" legendCode="">{1,1}</diggs:lithDescription>
  <diggs:classificationSymbol codeSpace="">{0,1}</diggs:classificationSymbol>
  <diggs:groupIndexAASHTO>{0,1}</diggs:groupIndexAASHTO>
  <diggs:colorCharacter>{0,1}</diggs:colorCharacter>
  <diggs:color>{0,unbounded}</diggs:color>
  <diggs:constituent>{0,unbounded}</diggs:constituent>
  <diggs:componentProperties>{0,1}</diggs:componentProperties>
</diggs:ComponentLith>

Attributes

QName

Type

Use

Annotation

gml:id

optional

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

Source

<element abstract="false" name="ComponentLith" type="diggs:ComponentLithType">
  <annotation>
    <documentation>A lithology that is a component of a lithologic zone, with the same descriptive properties as diggs:Lithology plus properties of the component.</documentation>
  </annotation>
</element>
