Schema documentation for component diggs:Chiseling

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Source

Used by

Element diggs:Chiseling

Namespace

http://diggsml.org/schemas/3

Annotations

DEPRECATED. Use diggs:BoreholeConstructionMethod and the borehole's drillAdvancement
(see chiseling). An object containing properties about chiseling activity as part of
advancement of a borehole.

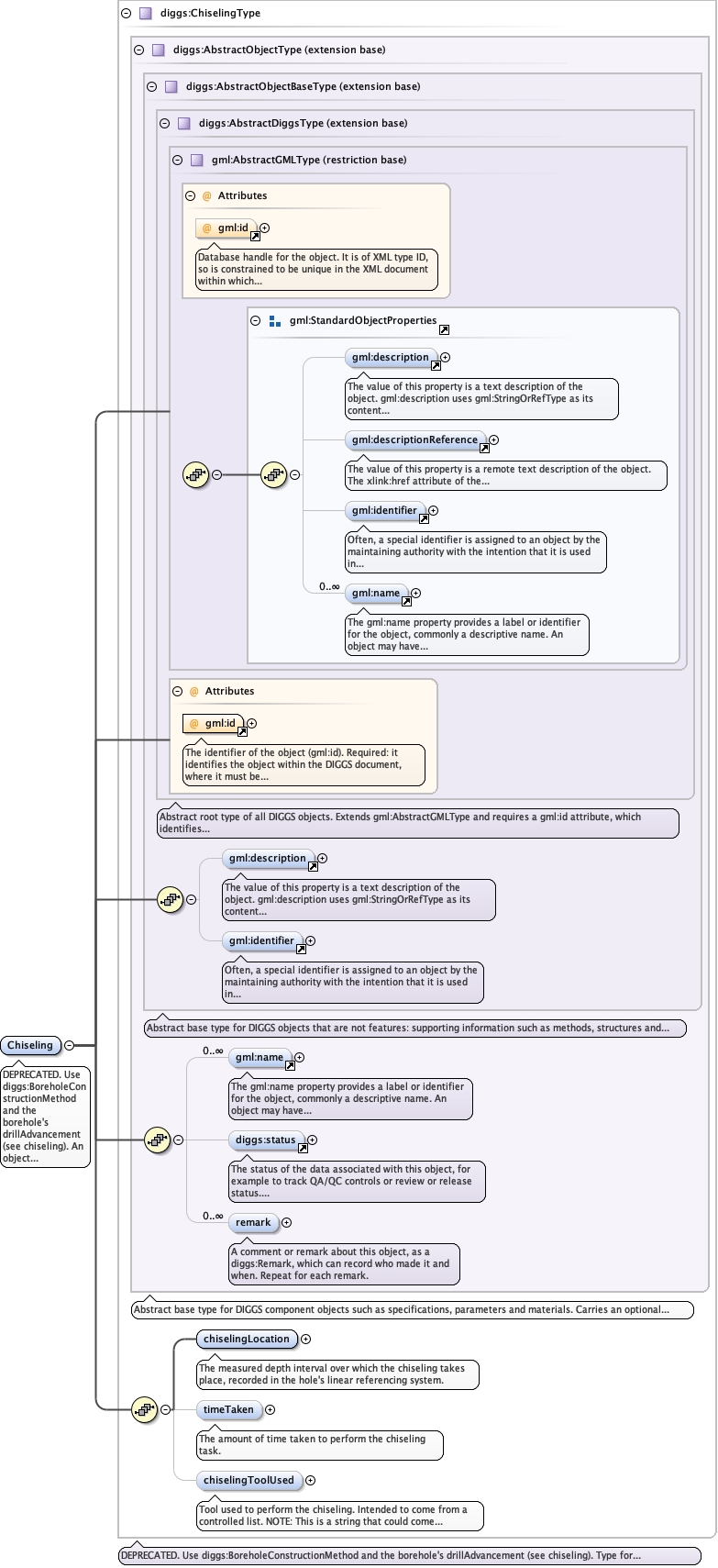

Diagram

Type

diggs:ChiselingType

Type hierarchy

gml:AbstractGMLType
- diggs:AbstractDiggsType
  - diggs:AbstractObjectBaseType
    - diggs:AbstractObjectType
      - diggs:ChiselingType

Properties

content

complex

Used by

Complex Type

diggs:ChiselingPropertyType

Model

gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs:chiselingLocation , diggs:timeTaken{0,1} , diggs:chiselingToolUsed{0,1}

Children

diggs:chiselingLocation, diggs:chiselingToolUsed, diggs:remark, diggs:status, diggs:timeTaken, gml:description, gml:identifier, gml:name

Instance

<diggs:Chiseling gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:chiselingLocation owns="false" xlink:href="" nilReason="">{1,1}</diggs:chiselingLocation>
  <diggs:timeTaken howDetermined="" qualifier="" uom="">{0,1}</diggs:timeTaken>
  <diggs:chiselingToolUsed xlink:href="" nilReason="">{0,1}</diggs:chiselingToolUsed>
</diggs:Chiseling>

Attributes

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

Source

<element name="Chiseling" type="diggs:ChiselingType">
  <annotation>
    <appinfo>
      <diggs:deprecated since="3.0.0" note="diggs:BoreholeConstructionMethod for the interval and tool, and the borehole's drillAdvancement for the rate of advancement"/>
    </appinfo>
    <documentation>DEPRECATED. Use diggs:BoreholeConstructionMethod and the borehole's drillAdvancement (see chiseling). An object containing properties about chiseling activity as part of advancement of a borehole.</documentation>
  </annotation>
</element>
