Element diggs:CasingAdvancement
Namespace http://diggsml.org/schemas/3
Annotations

An advancement of casing while drilling, or retraction during an activity such as
grouting, with the time interval and the start and end positions of the casing base.

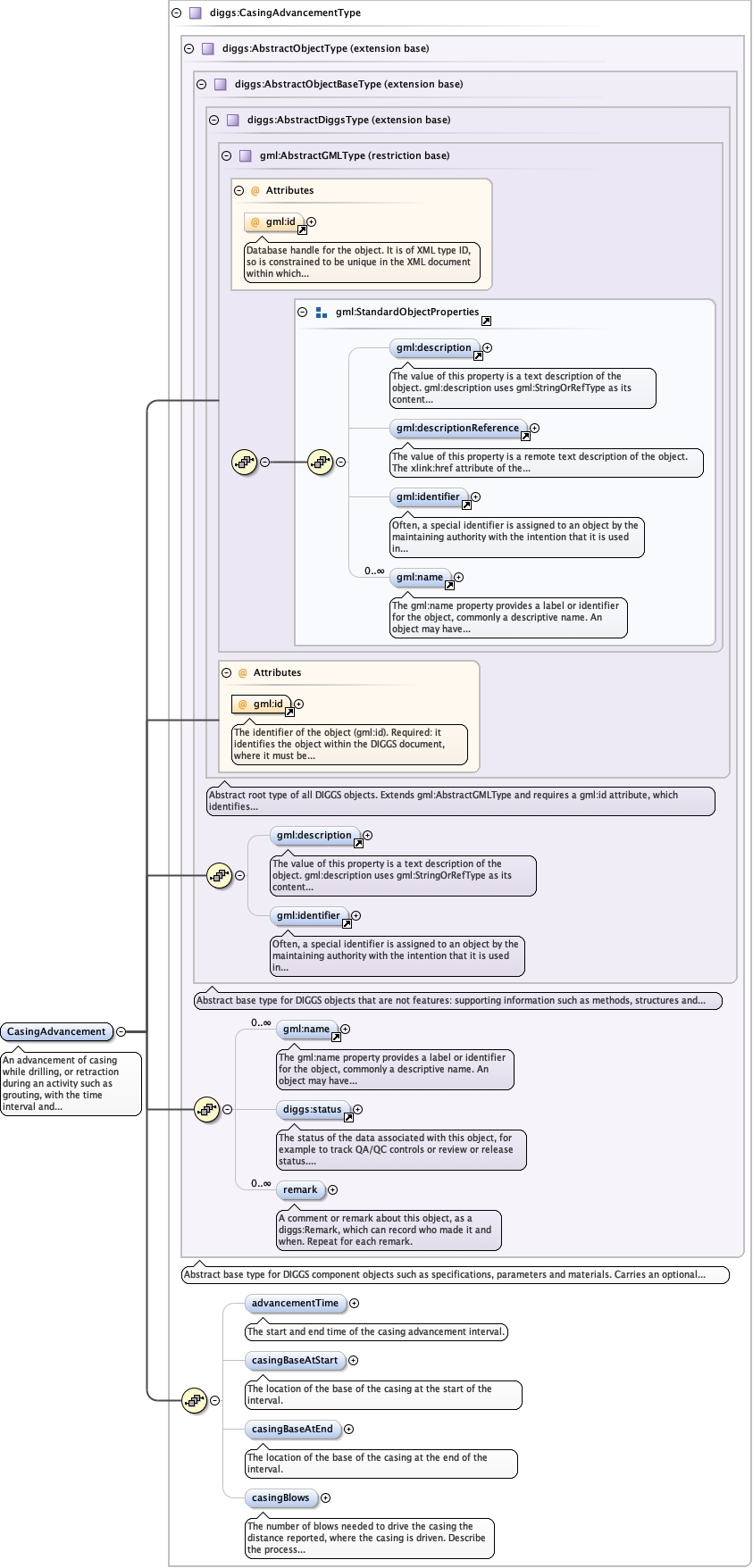

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeCore_xsd_Complex_Type_diggs_CasingAdvancementType.tmp#CasingAdvancementType_advancementTimeCore_xsd_Complex_Type_diggs_CasingAdvancementType.tmp#CasingAdvancementType_casingBaseAtStartCore_xsd_Complex_Type_diggs_CasingAdvancementType.tmp#CasingAdvancementType_casingBaseAtEndCore_xsd_Complex_Type_diggs_CasingAdvancementType.tmp#CasingAdvancementType_casingBlowsCore_xsd_Complex_Type_diggs_CasingAdvancementType.tmp#CasingAdvancementType
Type diggs:CasingAdvancementType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:advancementTime, diggs:casingBaseAtEnd, diggs:casingBaseAtStart, diggs:casingBlows, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:CasingAdvancement gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:advancementTime>{0,1}</diggs:advancementTime>
  <diggs:casingBaseAtStart owns="false" xlink:href="" nilReason="">{0,1}</diggs:casingBaseAtStart>
  <diggs:casingBaseAtEnd owns="false" xlink:href="" nilReason="">{0,1}</diggs:casingBaseAtEnd>
  <diggs:casingBlows>{0,1}</diggs:casingBlows>
</diggs:CasingAdvancement>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="CasingAdvancement" type="diggs:CasingAdvancementType">
  <annotation>
    <documentation>An advancement of casing while drilling, or retraction during an activity such as grouting, with the time interval and the start and end positions of the casing base.</documentation>
  </annotation>
</element>
