Element diggs:AcceptanceEvaluation
Namespace http://diggsml.org/schemas/3
Annotations

A set of acceptance checks and the non-conformances raised from them, issued
together, typically as one QA/QC or acceptance report. It applies to any program
that states acceptance criteria. A later finding, such as a re-test or a disposition
decided afterward, is delivered as a further evaluation or as a reissue of this one.

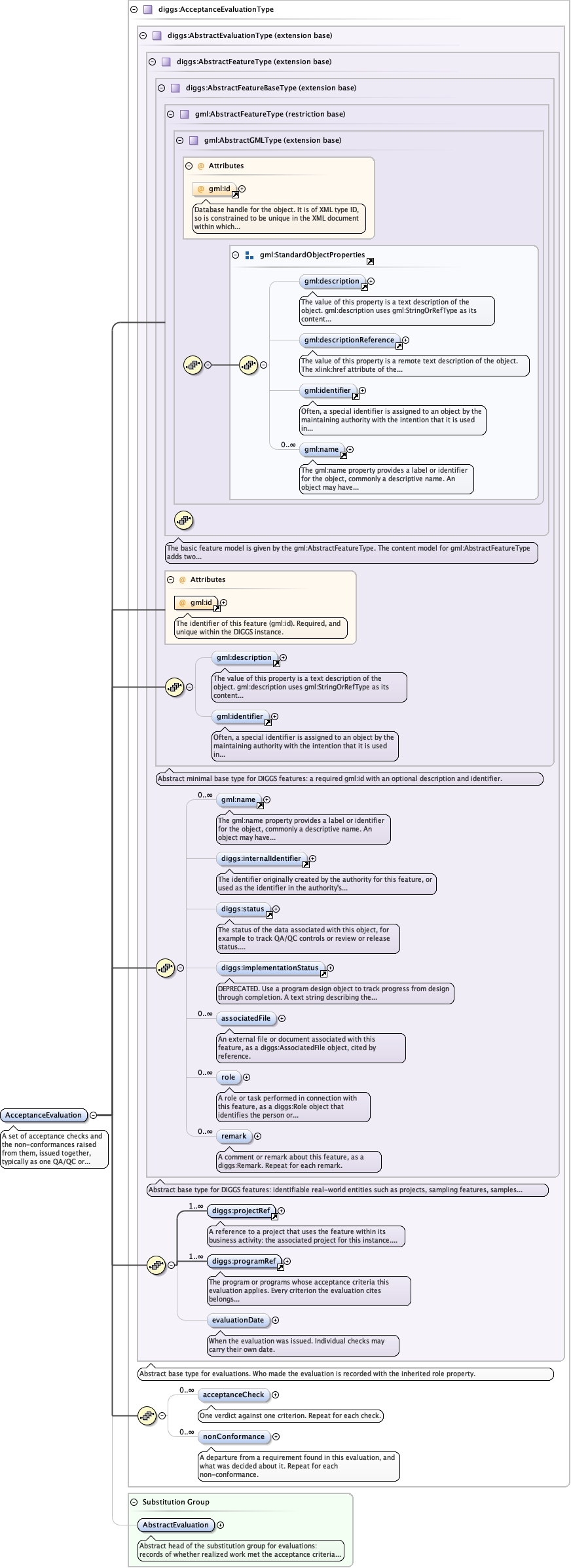

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeCommon_xsd_Element_diggs_projectRef.tmp#projectRefCommon_xsd_Element_diggs_programRef.tmp#programRefAbstractTypes_xsd_Complex_Type_diggs_AbstractEvaluationType.tmp#AbstractEvaluationType_evaluationDateAbstractTypes_xsd_Complex_Type_diggs_AbstractEvaluationType.tmp#AbstractEvaluationTypeCore_xsd_Complex_Type_diggs_AcceptanceEvaluationType.tmp#AcceptanceEvaluationType_acceptanceCheckCore_xsd_Complex_Type_diggs_AcceptanceEvaluationType.tmp#AcceptanceEvaluationType_nonConformanceCore_xsd_Complex_Type_diggs_AcceptanceEvaluationType.tmp#AcceptanceEvaluationTypeAbstractTypes_xsd_Element_diggs_AbstractEvaluation.tmp#AbstractEvaluation
Type diggs:AcceptanceEvaluationType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children diggs:acceptanceCheck, diggs:associatedFile, diggs:evaluationDate, diggs:implementationStatus, diggs:internalIdentifier, diggs:nonConformance, diggs:programRef, diggs:projectRef, diggs:remark, diggs:role, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:AcceptanceEvaluation gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:projectRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:projectRef>
  <diggs:programRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:programRef>
  <diggs:evaluationDate calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:evaluationDate>
  <diggs:acceptanceCheck>{0,unbounded}</diggs:acceptanceCheck>
  <diggs:nonConformance xlink:href="" nilReason="">{0,unbounded}</diggs:nonConformance>
</diggs:AcceptanceEvaluation>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="AcceptanceEvaluation" type="diggs:AcceptanceEvaluationType" substitutionGroup="diggs:AbstractEvaluation">
  <annotation>
    <documentation>A set of acceptance checks and the non-conformances raised from them, issued together, typically as one QA/QC or acceptance report. It applies to any program that states acceptance criteria. A later finding, such as a re-test or a disposition decided afterward, is delivered as a further evaluation or as a reissue of this one.</documentation>
  </annotation>
</element>
