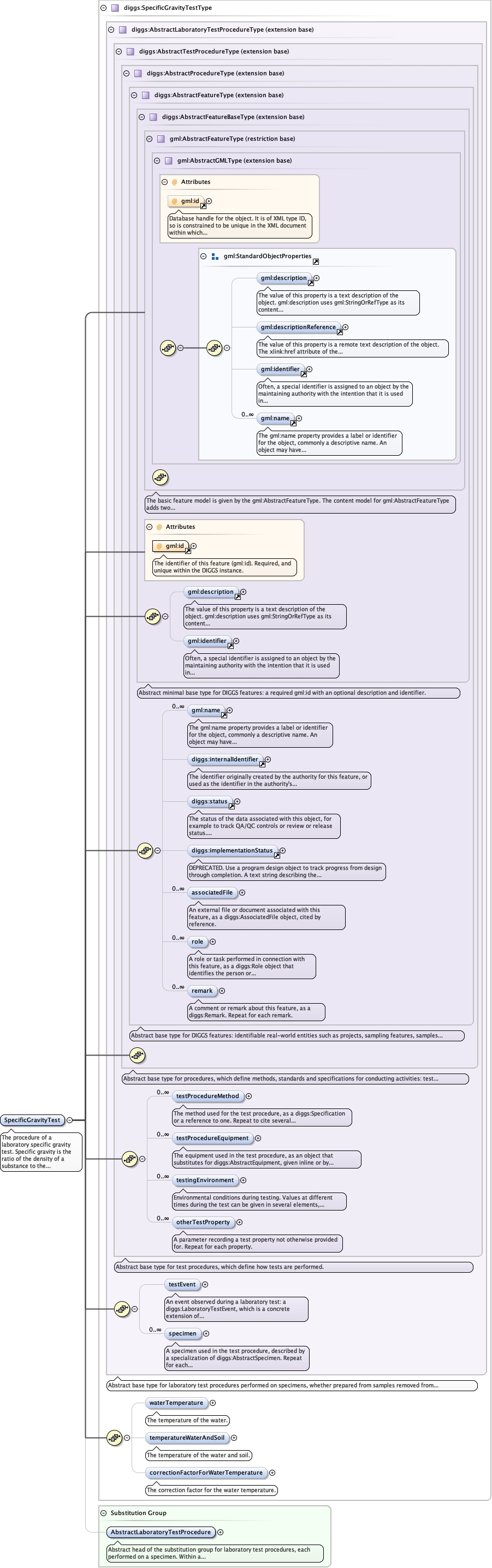

Schema documentation for component diggs:SpecificGravityTest

The procedure of a laboratory specific gravity test. Specific gravity is the ratio of the density of a substance to the density of a reference substance, usually water at 4 degrees C; equivalently, the ratio of the mass of a substance to the mass of a reference substance for the same volume.

<diggs:SpecificGravityTest gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,1}</diggs:testEvent>
  <diggs:specimen xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:specimen>
  <diggs:waterTemperature howDetermined="" qualifier="" uom="">{0,1}</diggs:waterTemperature>
  <diggs:temperatureWaterAndSoil howDetermined="" qualifier="" uom="">{0,1}</diggs:temperatureWaterAndSoil>
  <diggs:correctionFactorForWaterTemperature>{0,1}</diggs:correctionFactorForWaterTemperature>
</diggs:SpecificGravityTest>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="SpecificGravityTest" type="diggs:SpecificGravityTestType" abstract="false" substitutionGroup="diggs:AbstractLaboratoryTestProcedure"> <annotation> <documentation>The procedure of a laboratory specific gravity test. Specific gravity is the ratio of the density of a substance to the density of a reference substance, usually water at 4 degrees C; equivalently, the ratio of the mass of a substance to the mass of a reference substance for the same volume.</documentation> </annotation> </element>
