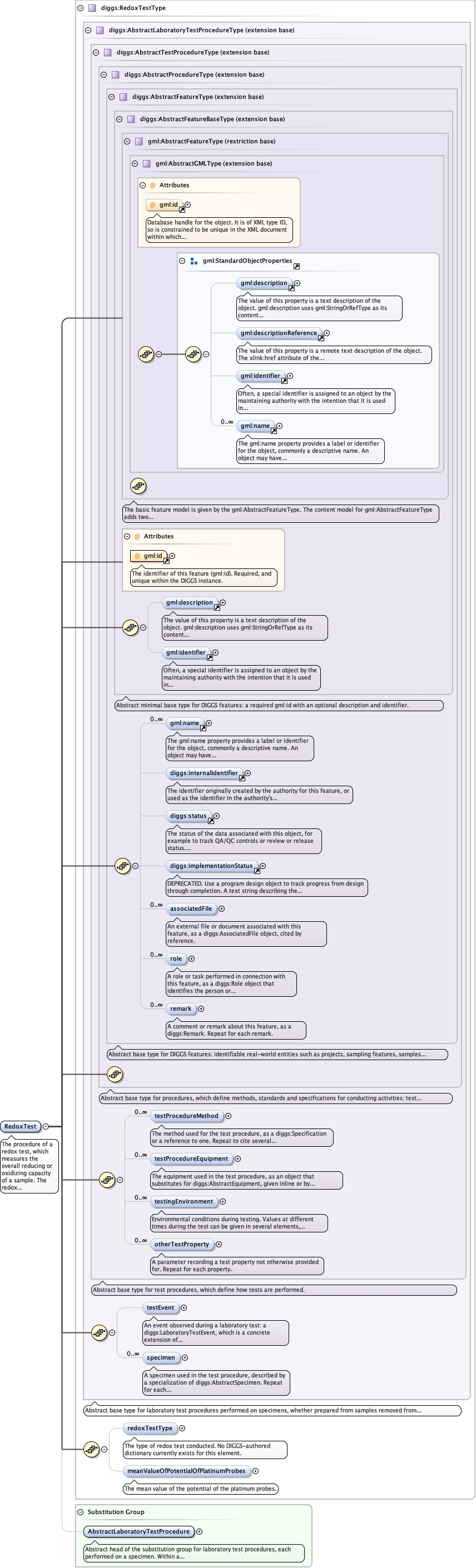

Schema documentation for component diggs:RedoxTest

The procedure of a redox test, which measures the overall reducing or oxidizing capacity of a sample. The redox potential is measured in millivolts relative to a standard hydrogen electrode, commonly with a platinum electrode and a saturated calomel electrode as reference.

<diggs:RedoxTest gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,1}</diggs:testEvent>
  <diggs:specimen xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:specimen>
  <diggs:redoxTestType codeSpace="">{0,1}</diggs:redoxTestType>
  <diggs:meanValueOfPotentialOfPlatinumProbes howDetermined="" qualifier="" uom="">{0,1}</diggs:meanValueOfPotentialOfPlatinumProbes>
</diggs:RedoxTest>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="RedoxTest" substitutionGroup="diggs:AbstractLaboratoryTestProcedure" type="diggs:RedoxTestType"> <annotation> <documentation>The procedure of a redox test, which measures the overall reducing or oxidizing capacity of a sample. The redox potential is measured in millivolts relative to a standard hydrogen electrode, commonly with a platinum electrode and a saturated calomel electrode as reference.</documentation> </annotation> </element>
