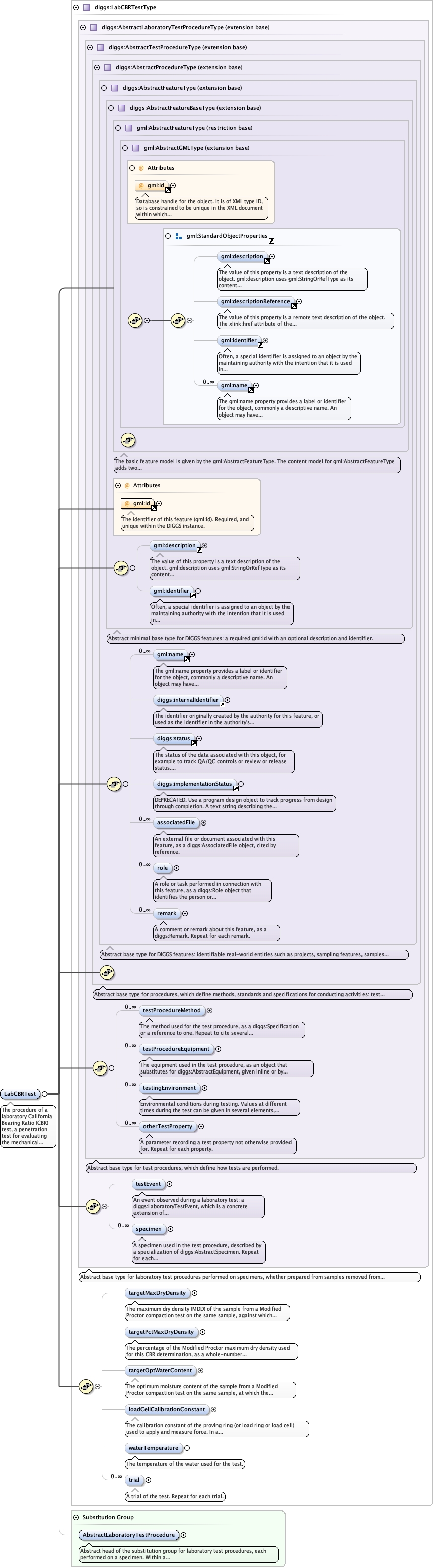

Schema documentation for component diggs:LabCBRTest

The procedure of a laboratory California Bearing Ratio (CBR) test, a penetration test for evaluating the mechanical strength of road subgrades and basecourses. The pressure required to penetrate a soil sample with a plunger of standard area is divided by the pressure required for an equal penetration of a standard crushed rock material.

<diggs:LabCBRTest gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,1}</diggs:testEvent>
  <diggs:specimen xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:specimen>
  <diggs:targetMaxDryDensity howDetermined="" qualifier="" uom="">{0,1}</diggs:targetMaxDryDensity>
  <diggs:targetPctMaxDryDensity>{0,1}</diggs:targetPctMaxDryDensity>
  <diggs:targetOptWaterContent howDetermined="" qualifier="" uom="">{0,1}</diggs:targetOptWaterContent>
  <diggs:loadCellCalibrationConstant>{0,1}</diggs:loadCellCalibrationConstant>
  <diggs:waterTemperature howDetermined="" qualifier="" uom="">{0,1}</diggs:waterTemperature>
  <diggs:trial>{0,unbounded}</diggs:trial>
</diggs:LabCBRTest>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="LabCBRTest" type="diggs:LabCBRTestType" abstract="false" substitutionGroup="diggs:AbstractLaboratoryTestProcedure"> <annotation> <documentation>The procedure of a laboratory California Bearing Ratio (CBR) test, a penetration test for evaluating the mechanical strength of road subgrades and basecourses. The pressure required to penetrate a soil sample with a plunger of standard area is divided by the pressure required for an equal penetration of a standard crushed rock material.</documentation> </annotation> </element>
