Namespace http://diggsml.org/schemas/3
Annotations
The procedure of a direct shear test, also known as a shearbox test, which
determines the consolidated drained (or undrained) shear strength of soils by
deforming a specimen at a controlled rate on or near a single shear plane.

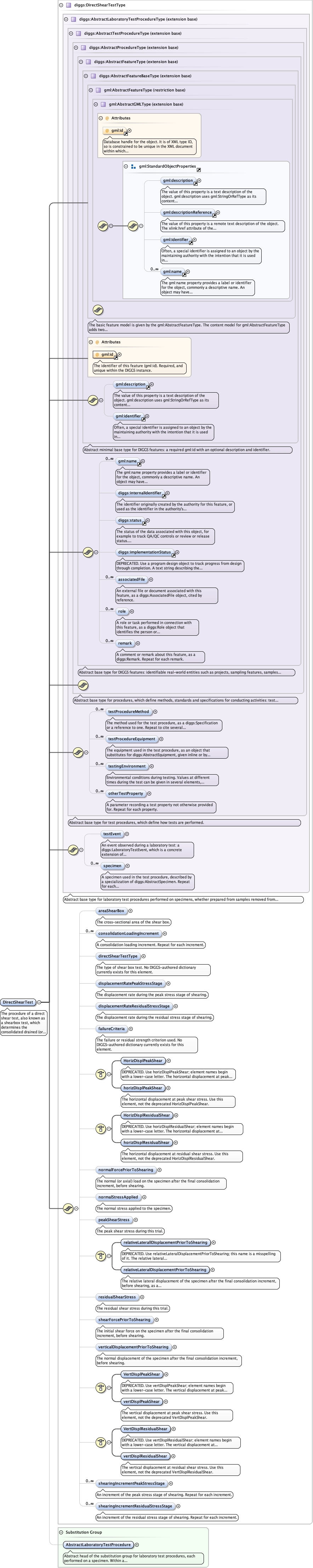

Diagram
Type diggs:DirectShearTestType
Type hierarchy
Properties
content
complex
abstract
false
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:testProcedureMethod* ,
diggs:testProcedureEquipment* ,
diggs:testingEnvironment* ,
diggs:otherTestProperty* ,
diggs:testEvent{0,1} ,
diggs:specimen* ,
diggs:areaShearBox{0,1} ,
diggs:consolidationLoadingIncrement* ,
diggs:directShearTestType{0,1} ,
diggs:displacementRatePeakStressStage{0,1} ,
diggs:displacementRateResidualStressStage{0,1} ,
diggs:failureCriteria{0,1} , (
diggs:HorizDisplPeakShear |
diggs:horizDisplPeakShear ) , (
diggs:HorizDisplResidualShear |
diggs:horizDisplResidualShear ) ,
diggs:normalForcePriorToShearing{0,1} ,
diggs:normalStressApplied{0,1} ,
diggs:peakShearStress{0,1} , (
diggs:relativeLaterallDisplacementPriorToShearing |
diggs:relativeLateralDisplacementPriorToShearing ) ,
diggs:residualShearStress{0,1} ,
diggs:shearForcePriorToShearing{0,1} ,
diggs:verticalDisplacementPriorToShearing{0,1} , (
diggs:VertDisplPeakShear |
diggs:vertDisplPeakShear ) , (
diggs:VertDisplResidualShear |
diggs:vertDisplResidualShear ) ,
diggs:shearingIncrementPeakStressStage* ,
diggs:shearingIncrementResidualStressStage*
Children diggs:HorizDisplPeakShear diggs:HorizDisplResidualShear diggs:VertDisplPeakShear diggs:VertDisplResidualShear diggs:areaShearBox diggs:associatedFile diggs:consolidationLoadingIncrement diggs:directShearTestType diggs:displacementRatePeakStressStage diggs:displacementRateResidualStressStage diggs:failureCriteria diggs:horizDisplPeakShear diggs:horizDisplResidualShear diggs:implementationStatus diggs:internalIdentifier diggs:normalForcePriorToShearing diggs:normalStressApplied diggs:otherTestProperty diggs:peakShearStress diggs:relativeLateralDisplacementPriorToShearing diggs:relativeLaterallDisplacementPriorToShearing diggs:remark diggs:residualShearStress diggs:role diggs:shearForcePriorToShearing diggs:shearingIncrementPeakStressStage diggs:shearingIncrementResidualStressStage diggs:specimen diggs:status diggs:testEvent diggs:testProcedureEquipment diggs:testProcedureMethod diggs:testingEnvironment diggs:vertDisplPeakShear diggs:vertDisplResidualShear diggs:verticalDisplacementPriorToShearing gml:description gml:identifier gml:name
Instance
<diggs:DirectShearTest gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:href= "" nilReason= "" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:testProcedureMethod xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:testProcedureMethod>
<diggs:testProcedureEquipment xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:testProcedureEquipment>
<diggs:testingEnvironment xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:testingEnvironment>
<diggs:otherTestProperty > {0,unbounded} </diggs:otherTestProperty>
<diggs:testEvent > {0,1} </diggs:testEvent>
<diggs:specimen xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:specimen>
<diggs:areaShearBox howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:areaShearBox>
<diggs:consolidationLoadingIncrement > {0,unbounded} </diggs:consolidationLoadingIncrement>
<diggs:directShearTestType codeSpace= "" > {0,1} </diggs:directShearTestType>
<diggs:displacementRatePeakStressStage howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:displacementRatePeakStressStage>
<diggs:displacementRateResidualStressStage howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:displacementRateResidualStressStage>
<diggs:failureCriteria codeSpace= "" > {0,1} </diggs:failureCriteria>
<diggs:HorizDisplPeakShear howDetermined= "" qualifier= "" uom= "" > {1,1} </diggs:HorizDisplPeakShear>
<diggs:horizDisplPeakShear howDetermined= "" qualifier= "" uom= "" > {1,1} </diggs:horizDisplPeakShear>
<diggs:HorizDisplResidualShear howDetermined= "" qualifier= "" uom= "" > {1,1} </diggs:HorizDisplResidualShear>
<diggs:horizDisplResidualShear howDetermined= "" qualifier= "" uom= "" > {1,1} </diggs:horizDisplResidualShear>
<diggs:normalForcePriorToShearing howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:normalForcePriorToShearing>
<diggs:normalStressApplied howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:normalStressApplied>
<diggs:peakShearStress howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:peakShearStress>
<diggs:relativeLaterallDisplacementPriorToShearing howDetermined= "" qualifier= "" uom= "" > {1,1} </diggs:relativeLaterallDisplacementPriorToShearing>
<diggs:relativeLateralDisplacementPriorToShearing howDetermined= "" qualifier= "" uom= "" > {1,1} </diggs:relativeLateralDisplacementPriorToShearing>
<diggs:residualShearStress howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:residualShearStress>
<diggs:shearForcePriorToShearing howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:shearForcePriorToShearing>
<diggs:verticalDisplacementPriorToShearing howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:verticalDisplacementPriorToShearing>
<diggs:VertDisplPeakShear howDetermined= "" qualifier= "" uom= "" > {1,1} </diggs:VertDisplPeakShear>
<diggs:vertDisplPeakShear howDetermined= "" qualifier= "" uom= "" > {1,1} </diggs:vertDisplPeakShear>
<diggs:VertDisplResidualShear howDetermined= "" qualifier= "" uom= "" > {1,1} </diggs:VertDisplResidualShear>
<diggs:vertDisplResidualShear howDetermined= "" qualifier= "" uom= "" > {1,1} </diggs:vertDisplResidualShear>
<diggs:shearingIncrementPeakStressStage > {0,unbounded} </diggs:shearingIncrementPeakStressStage>
<diggs:shearingIncrementResidualStressStage > {0,unbounded} </diggs:shearingIncrementResidualStressStage>
</diggs:DirectShearTest>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element abstract= "false" name= "DirectShearTest" substitutionGroup= "diggs:AbstractLaboratoryTestProcedure" type= "diggs:DirectShearTestType" >
<annotation >
<documentation > The procedure of a direct shear test, also known as a shearbox test, which determines the consolidated drained (or undrained) shear strength of soils by deforming a specimen at a controlled rate on or near a single shear plane. </documentation>
</annotation>
</element>
