Element diggs:NonConformance
Namespace http://diggsml.org/schemas/3
Annotations

A record that realized work departed from a stated requirement, and what was decided
about it. Contained in a diggs:AcceptanceEvaluation, and normally cites the
diggs:AcceptanceCheck that found the departure. It records the engineering content
of the finding, not its administration: a non-conformance report as a document is an
attachment (the inherited associatedFile), a project reference number is the
inherited gml:name, the open, closed or superseded state is the inherited
diggs:status, and the narrative of the finding and its resolution is the inherited
remark. The non-conforming work is identified by at least one of samplingFeatureRef,
sampleRef, samplingActivityRef, constructionActivityRef, measurementRef or
observationSystemRef, and subjectLocation narrows it to the part concerned. The
mandatory gml:id lets a remedial design or a later evaluation cite it. Generic: any
construction domain that states acceptance criteria can fail to meet them.

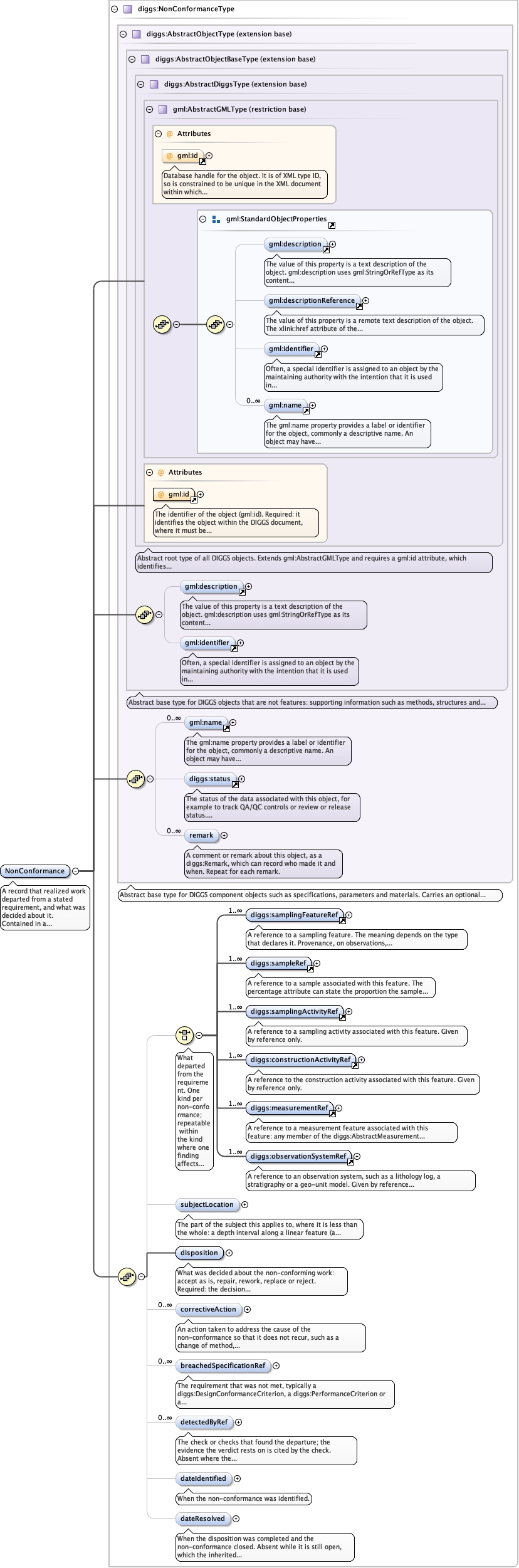

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeCommon_xsd_Element_diggs_samplingFeatureRef.tmp#samplingFeatureRefCommon_xsd_Element_diggs_sampleRef.tmp#sampleRefCommon_xsd_Element_diggs_samplingActivityRef.tmp#samplingActivityRefCommon_xsd_Element_diggs_constructionActivityRef.tmp#constructionActivityRefCommon_xsd_Element_diggs_measurementRef.tmp#measurementRefCommon_xsd_Element_diggs_observationSystemRef.tmp#observationSystemRefCommon_xsd_Complex_Type_diggs_NonConformanceType.tmp#NonConformanceType_subjectLocationCommon_xsd_Complex_Type_diggs_NonConformanceType.tmp#NonConformanceType_dispositionCommon_xsd_Complex_Type_diggs_NonConformanceType.tmp#NonConformanceType_correctiveActionCommon_xsd_Complex_Type_diggs_NonConformanceType.tmp#NonConformanceType_breachedSpecificationRefCommon_xsd_Complex_Type_diggs_NonConformanceType.tmp#NonConformanceType_detectedByRefCommon_xsd_Complex_Type_diggs_NonConformanceType.tmp#NonConformanceType_dateIdentifiedCommon_xsd_Complex_Type_diggs_NonConformanceType.tmp#NonConformanceType_dateResolvedCommon_xsd_Complex_Type_diggs_NonConformanceType.tmp#NonConformanceType
Type diggs:NonConformanceType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:breachedSpecificationRef, diggs:constructionActivityRef, diggs:correctiveAction, diggs:dateIdentified, diggs:dateResolved, diggs:detectedByRef, diggs:disposition, diggs:measurementRef, diggs:observationSystemRef, diggs:remark, diggs:sampleRef, diggs:samplingActivityRef, diggs:samplingFeatureRef, diggs:status, diggs:subjectLocation, gml:description, gml:identifier, gml:name
Instance

<diggs:NonConformance gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:samplingFeatureRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:samplingFeatureRef>
  <diggs:sampleRef xlink:href="" identifierRef="" nilReason="" owns="false" percentage="">{1,unbounded}</diggs:sampleRef>
  <diggs:samplingActivityRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:samplingActivityRef>
  <diggs:constructionActivityRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:constructionActivityRef>
  <diggs:measurementRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:measurementRef>
  <diggs:observationSystemRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:observationSystemRef>
  <diggs:subjectLocation owns="false" xlink:href="" nilReason="">{0,1}</diggs:subjectLocation>
  <diggs:disposition codeSpace="">{1,1}</diggs:disposition>
  <diggs:correctiveAction codeSpace="">{0,unbounded}</diggs:correctiveAction>
  <diggs:breachedSpecificationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:breachedSpecificationRef>
  <diggs:detectedByRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:detectedByRef>
  <diggs:dateIdentified calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:dateIdentified>
  <diggs:dateResolved calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:dateResolved>
</diggs:NonConformance>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="NonConformance" type="diggs:NonConformanceType">
  <annotation>
    <documentation>A record that realized work departed from a stated requirement, and what was decided about it. Contained in a diggs:AcceptanceEvaluation, and normally cites the diggs:AcceptanceCheck that found the departure. It records the engineering content of the finding, not its administration: a non-conformance report as a document is an attachment (the inherited associatedFile), a project reference number is the inherited gml:name, the open, closed or superseded state is the inherited diggs:status, and the narrative of the finding and its resolution is the inherited remark. The non-conforming work is identified by at least one of samplingFeatureRef, sampleRef, samplingActivityRef, constructionActivityRef, measurementRef or observationSystemRef, and subjectLocation narrows it to the part concerned. The mandatory gml:id lets a remedial design or a later evaluation cite it. Generic: any construction domain that states acceptance criteria can fail to meet them.</documentation>
  </annotation>
</element>
