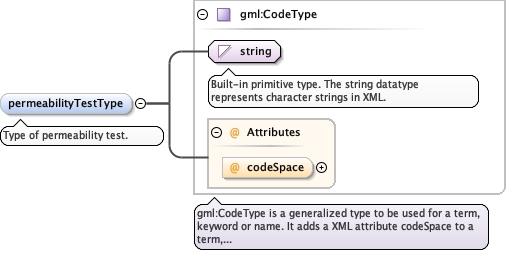

Element diggs:InsituPermeabilityTestType / diggs:permeabilityTestType
Namespace http://diggsml.org/schema-dev
Annotations

Type of permeability test.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
default false
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="permeabilityTestType" type="gml:CodeType" default="false" minOccurs="0">
  <annotation>
    <documentation>Type of permeability test.</documentation>
  </annotation>
</element>

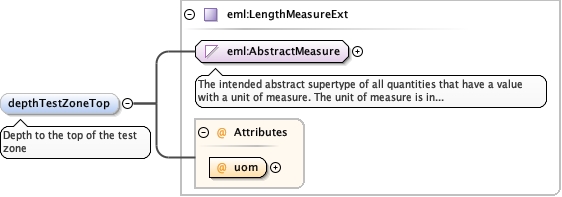

Element diggs:InsituPermeabilityTestType / diggs:depthTestZoneTop
Namespace http://diggsml.org/schema-dev
Annotations

Depth to the top of the test zone
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element name="depthTestZoneTop" type="eml:LengthMeasureExt" minOccurs="0">
  <annotation>
    <documentation>Depth to the top of the test zone</documentation>
  </annotation>
</element>

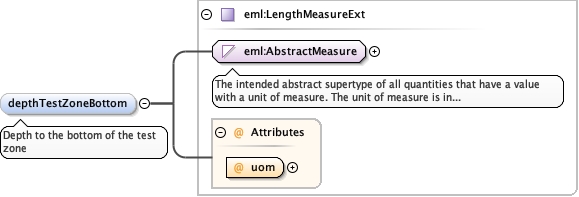

Element diggs:InsituPermeabilityTestType / diggs:depthTestZoneBottom
Namespace http://diggsml.org/schema-dev
Annotations

Depth to the bottom of the test zone
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element name="depthTestZoneBottom" type="eml:LengthMeasureExt" minOccurs="0">
  <annotation>
    <documentation>Depth to the bottom of the test zone</documentation>
  </annotation>
</element>
Element diggs:InsituPermeabilityTestType / diggs:stage
Namespace http://diggsml.org/schema-dev
Annotations

Stage number of multistage packer test.
Diagram
Diagram
Type integer
Properties
content simple
minOccurs 0
Source

<element name="stage" type="integer" minOccurs="0">
  <annotation>
    <documentation>Stage number of multistage packer test.</documentation>
  </annotation>
</element>

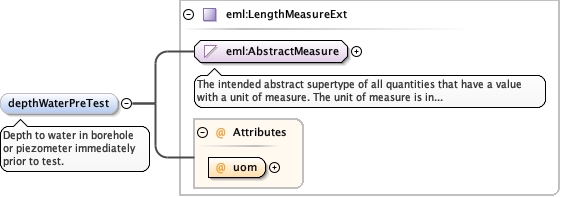

Element diggs:InsituPermeabilityTestType / diggs:depthWaterPreTest
Namespace http://diggsml.org/schema-dev
Annotations

Depth to water in borehole or piezometer immediately prior to test.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element name="depthWaterPreTest" type="eml:LengthMeasureExt" minOccurs="0">
  <annotation>
    <documentation>Depth to water in borehole or piezometer immediately prior to test.</documentation>
  </annotation>
</element>

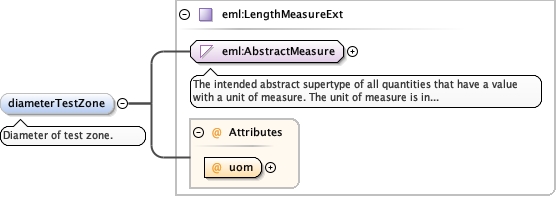

Element diggs:InsituPermeabilityTestType / diggs:diameterTestZone
Namespace http://diggsml.org/schema-dev
Annotations

Diameter of test zone.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element name="diameterTestZone" type="eml:LengthMeasureExt" minOccurs="0">
  <annotation>
    <documentation>Diameter of test zone.</documentation>
  </annotation>
</element>

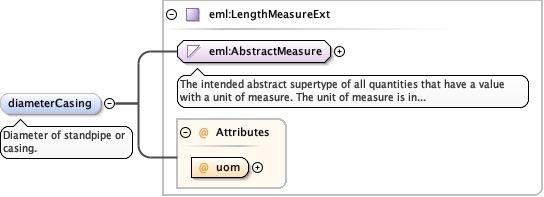

Element diggs:InsituPermeabilityTestType / diggs:diameterCasing
Namespace http://diggsml.org/schema-dev
Annotations

Diameter of standpipe or casing.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element name="diameterCasing" type="eml:LengthMeasureExt" minOccurs="0">
  <annotation>
    <documentation>Diameter of standpipe or casing.</documentation>
  </annotation>
</element>

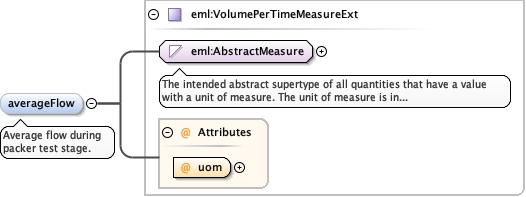

Element diggs:InsituPermeabilityTestType / diggs:averageFlow
Namespace http://diggsml.org/schema-dev
Annotations

Average flow during packer test stage.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasureExt.tmp#VolumePerTimeMeasureExt_uomMeasureType_xsd_Complex_Type_eml_VolumePerTimeMeasureExt.tmp#VolumePerTimeMeasureExt
Type eml:VolumePerTimeMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerTimeUomExt required
Source

<element name="averageFlow" type="eml:VolumePerTimeMeasureExt" minOccurs="0">
  <annotation>
    <documentation>Average flow during packer test stage.</documentation>
  </annotation>
</element>
Element diggs:InsituPermeabilityTestType / diggs:depthStandingWater
Namespace http://diggsml.org/schema-dev
Annotations

Depth to assumed standing water level.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element name="depthStandingWater" type="eml:LengthMeasureExt" minOccurs="0">
  <annotation>
    <documentation>Depth to assumed standing water level.</documentation>
  </annotation>
</element>

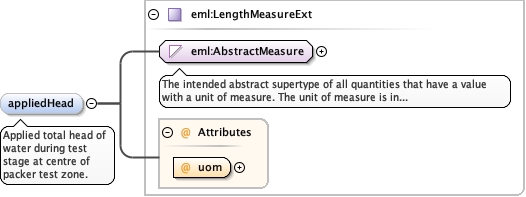

Element diggs:InsituPermeabilityTestType / diggs:appliedHead
Namespace http://diggsml.org/schema-dev
Annotations

Applied total head of water during test stage at centre of packer test zone.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element name="appliedHead" type="eml:LengthMeasureExt" minOccurs="0">
  <annotation>
    <documentation>Applied total head of water during test stage at centre of packer test zone.</documentation>
  </annotation>
</element>
Complex Type diggs:InsituPermeabilityTestType
Namespace http://diggsml.org/schema-dev
Annotations

Base type for InsituPermeabilityTest

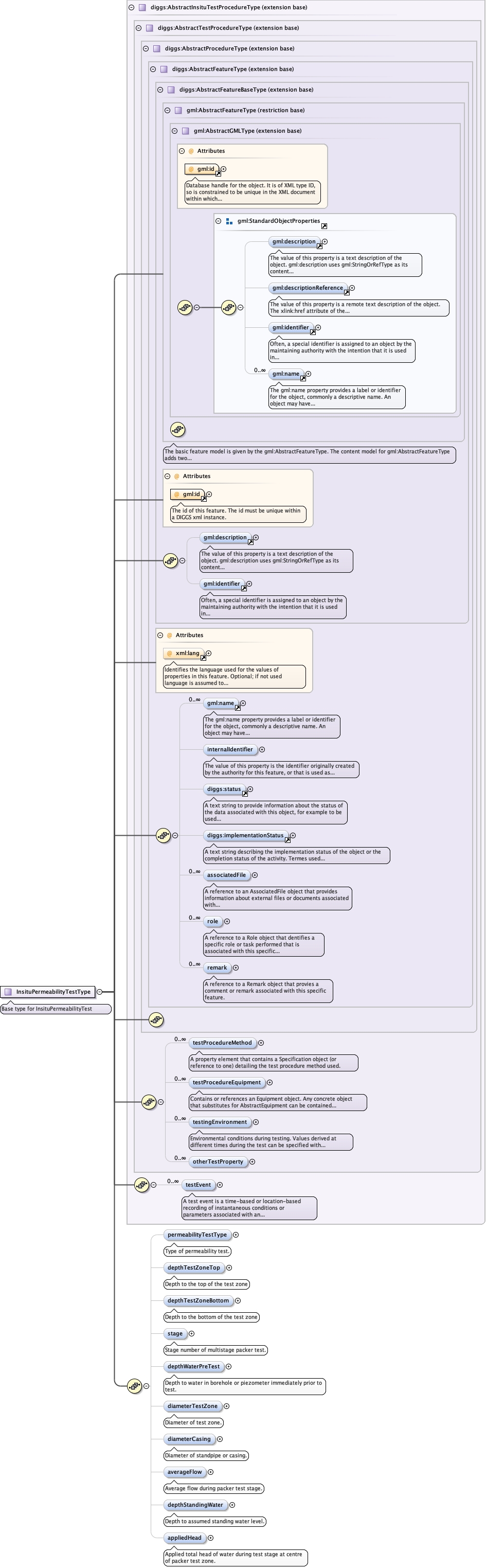

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventKernel_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeBetaProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_permeabilityTestTypeBetaProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_depthTestZoneTopBetaProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_depthTestZoneBottomBetaProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_stageBetaProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_depthWaterPreTestBetaProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_diameterTestZoneBetaProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_diameterCasingBetaProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_averageFlowBetaProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_depthStandingWaterBetaProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_appliedHead
Type extension of diggs:AbstractInsituTestProcedureType
Type hierarchy
Used by
Model
Children diggs:appliedHead, diggs:associatedFile, diggs:averageFlow, diggs:depthStandingWater, diggs:depthTestZoneBottom, diggs:depthTestZoneTop, diggs:depthWaterPreTest, diggs:diameterCasing, diggs:diameterTestZone, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:permeabilityTestType, diggs:remark, diggs:role, diggs:stage, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="InsituPermeabilityTestType">
  <annotation>
    <documentation>Base type for InsituPermeabilityTest</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractInsituTestProcedureType">
      <sequence>
        <element name="permeabilityTestType" type="gml:CodeType" default="false" minOccurs="0">
          <annotation>
            <documentation>Type of permeability test.</documentation>
          </annotation>
        </element>
        <element name="depthTestZoneTop" type="eml:LengthMeasureExt" minOccurs="0">
          <annotation>
            <documentation>Depth to the top of the test zone</documentation>
          </annotation>
        </element>
        <element name="depthTestZoneBottom" type="eml:LengthMeasureExt" minOccurs="0">
          <annotation>
            <documentation>Depth to the bottom of the test zone</documentation>
          </annotation>
        </element>
        <element name="stage" type="integer" minOccurs="0">
          <annotation>
            <documentation>Stage number of multistage packer test.</documentation>
          </annotation>
        </element>
        <element name="depthWaterPreTest" type="eml:LengthMeasureExt" minOccurs="0">
          <annotation>
            <documentation>Depth to water in borehole or piezometer immediately prior to test.</documentation>
          </annotation>
        </element>
        <element name="diameterTestZone" type="eml:LengthMeasureExt" minOccurs="0">
          <annotation>
            <documentation>Diameter of test zone.</documentation>
          </annotation>
        </element>
        <element name="diameterCasing" type="eml:LengthMeasureExt" minOccurs="0">
          <annotation>
            <documentation>Diameter of standpipe or casing.</documentation>
          </annotation>
        </element>
        <element name="averageFlow" type="eml:VolumePerTimeMeasureExt" minOccurs="0">
          <annotation>
            <documentation>Average flow during packer test stage.</documentation>
          </annotation>
        </element>
        <element name="depthStandingWater" type="eml:LengthMeasureExt" minOccurs="0">
          <annotation>
            <documentation>Depth to assumed standing water level.</documentation>
          </annotation>
        </element>
        <element name="appliedHead" type="eml:LengthMeasureExt" minOccurs="0">
          <annotation>
            <documentation>Applied total head of water during test stage at centre of packer test zone.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
