Element diggs:AbstractProgramBasis
Namespace http://diggsml.org/schemas/3
Annotations

Abstract head of the substitution group for program bases: the objects a design was
prepared from, such as ground models, requirement sets, governing standards and
calculation inputs. A basis is evidence, not intent and not constraint: it is what
the designer relied on, and a design cites it through basisRef.

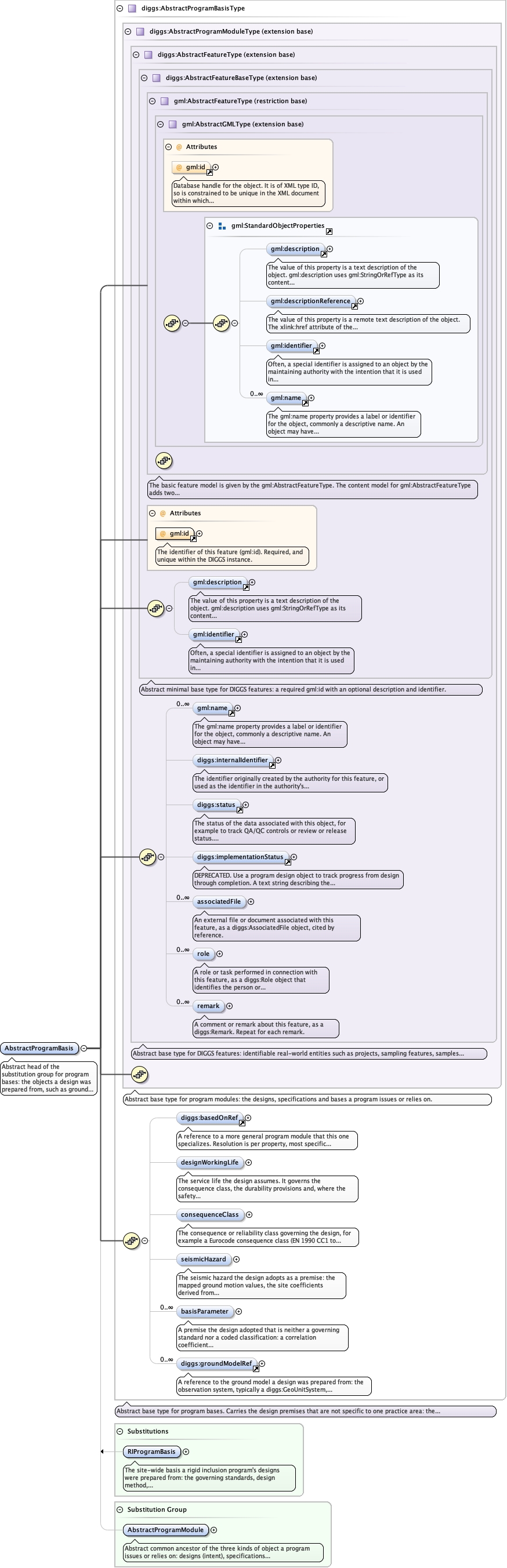

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramModuleType.tmp#AbstractProgramModuleTypeCommon_xsd_Element_diggs_basedOnRef.tmp#basedOnRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramBasisType.tmp#AbstractProgramBasisType_designWorkingLifeAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramBasisType.tmp#AbstractProgramBasisType_consequenceClassAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramBasisType.tmp#AbstractProgramBasisType_seismicHazardAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramBasisType.tmp#AbstractProgramBasisType_basisParameterCommon_xsd_Element_diggs_groundModelRef.tmp#groundModelRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramBasisType.tmp#AbstractProgramBasisTypeRigidInclusions_xsd_Element_diggs_RIProgramBasis.tmp#RIProgramBasisAbstractTypes_xsd_Element_diggs_AbstractProgramModule.tmp#AbstractProgramModule
Type diggs:AbstractProgramBasisType
Type hierarchy
Properties
content complex
abstract true
Substitution Group
Substitution Group Affiliation
Used by
Model
Children diggs:associatedFile, diggs:basedOnRef, diggs:basisParameter, diggs:consequenceClass, diggs:designWorkingLife, diggs:groundModelRef, diggs:implementationStatus, diggs:internalIdentifier, diggs:remark, diggs:role, diggs:seismicHazard, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:AbstractProgramBasis gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:basedOnRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basedOnRef>
  <diggs:designWorkingLife howDetermined="" qualifier="" uom="">{0,1}</diggs:designWorkingLife>
  <diggs:consequenceClass codeSpace="">{0,1}</diggs:consequenceClass>
  <diggs:seismicHazard>{0,1}</diggs:seismicHazard>
  <diggs:basisParameter>{0,unbounded}</diggs:basisParameter>
  <diggs:groundModelRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:groundModelRef>
</diggs:AbstractProgramBasis>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element abstract="true" name="AbstractProgramBasis" type="diggs:AbstractProgramBasisType" substitutionGroup="diggs:AbstractProgramModule">
  <annotation>
    <documentation>Abstract head of the substitution group for program bases: the objects a design was prepared from, such as ground models, requirement sets, governing standards and calculation inputs. A basis is evidence, not intent and not constraint: it is what the designer relied on, and a design cites it through basisRef.</documentation>
  </annotation>
</element>
