Complex Type diggs:VolumePerTimePerLengthMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Linear inflow or productivity per length: Volume flow rate per unit length. Used for wellbore inflow performance, productivity per length, and linear flow. Common units include m³/(s·m) (which yields m²/s), bbl/(d·ft), m³/(d·m), and gal/(min·ft).

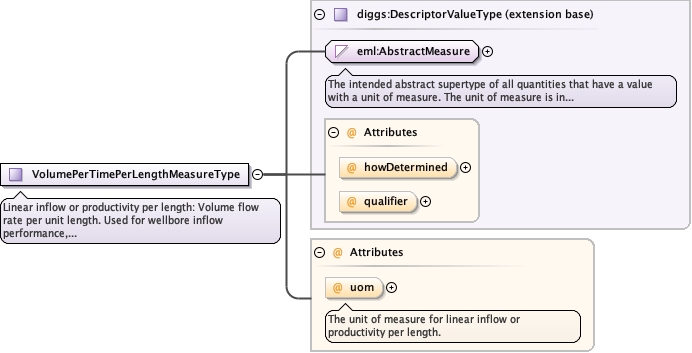

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimePerLengthMeasureType.tmp#VolumePerTimePerLengthMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Used by
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerTimePerLengthUomEnumType optional
The unit of measure for linear inflow or productivity per length.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
Attribute diggs:VolumePerTimePerLengthMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for linear inflow or productivity per length.
Type diggs:VolumePerTimePerLengthUomEnumType
Properties
content simple
Used by
Schema location file:/Users/dponti/GitHub/diggs-schema/core/MeasureTypes.xsd
