Element diggs:LugeonStepType / diggs:lugeonStepNumber
Namespace http://diggsml.org/schemas/3
Annotations

The number of this step, with 1 representing the first
step, 2 the second step, etc.
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 1
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd

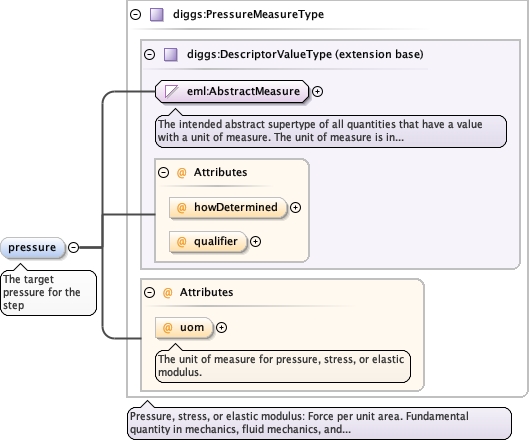

Element diggs:LugeonStepType / diggs:pressure
Namespace http://diggsml.org/schemas/3
Annotations

The target pressure for the step
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd

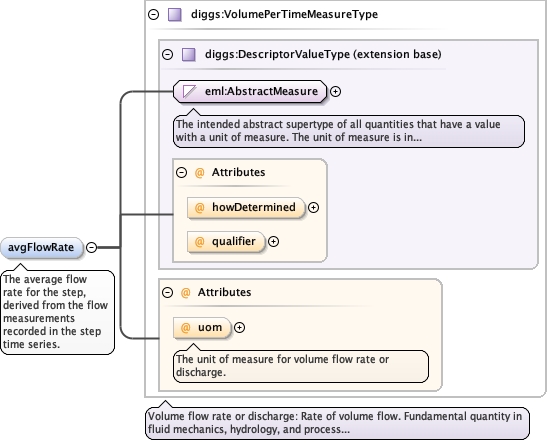

Element diggs:LugeonStepType / diggs:avgFlowRate
Namespace http://diggsml.org/schemas/3
Annotations

The average flow rate for the step, derived from the flow
measurements recorded in the step time series.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimeMeasureType.tmp#VolumePerTimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimeMeasureType.tmp#VolumePerTimeMeasureType
Type diggs:VolumePerTimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerTimeUomEnumType optional
The unit of measure for volume flow rate or discharge.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd
Element diggs:LugeonStepType / diggs:coeffPermeability
Namespace http://diggsml.org/schemas/3
Annotations

The coefficient of permeability (also known as hydraulic
conductivity) computed from the step measurements. This value is
averaged with other step results and is reported as one of the
primary test results
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthPerTimeMeasureType.tmp#LengthPerTimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthPerTimeMeasureType.tmp#LengthPerTimeMeasureType
Type diggs:LengthPerTimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthPerTimeUomEnumType optional
The unit of measure for velocity or speed.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd
Element diggs:LugeonStepType / diggs:lugeonValue
Namespace http://diggsml.org/schemas/3
Annotations

The Lugeon value, a measure of hydraulic conductivity in
rock, as computed from the step measurements. This value is averaged
with other step results and is reported as one of the primary test
results
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimePerLengthMeasureType.tmp#VolumePerTimePerLengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimePerLengthMeasureType.tmp#VolumePerTimePerLengthMeasureType
Type diggs:VolumePerTimePerLengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerTimePerLengthUomEnumType optional
The unit of measure for linear inflow or productivity per length.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd
Element diggs:LugeonStepType / diggs:lugeonStepTimeSeries
Namespace http://diggsml.org/schemas/3
Annotations

Property that contains the recorded flow for the test
step.
Diagram
DiagramCore_xsd_Element_diggs_TemporalResult.tmp#TemporalResultExtProcedures_xsd_Complex_Type_diggs_LugeonStepTimeSeriesPropertyType.tmp#LugeonStepTimeSeriesPropertyType
Type diggs:LugeonStepTimeSeriesPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:TemporalResult
Instance

<diggs:lugeonStepTimeSeries xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:TemporalResult gml:id="">{1,1}</diggs:TemporalResult>
</diggs:lugeonStepTimeSeries>
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd

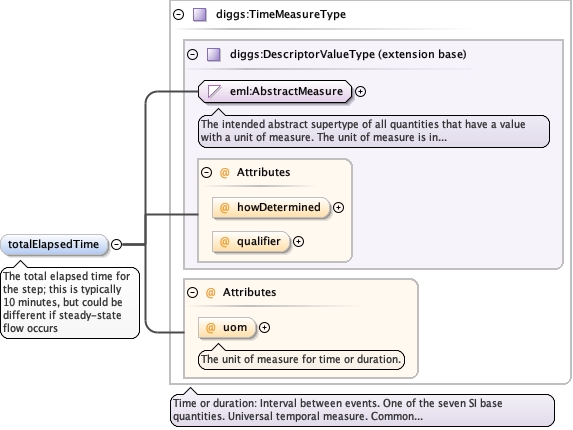

Element diggs:LugeonStepType / diggs:totalElapsedTime
Namespace http://diggsml.org/schemas/3
Annotations

The total elapsed time for the step; this is typically 10
minutes, but could be different if steady-state flow
occurs
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_TimeMeasureType.tmp#TimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_TimeMeasureType.tmp#TimeMeasureType
Type diggs:TimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:TimeUomEnumType optional
The unit of measure for time or duration.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd

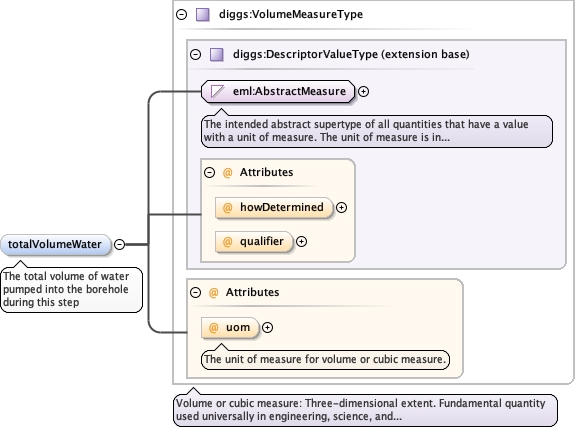

Element diggs:LugeonStepType / diggs:totalVolumeWater
Namespace http://diggsml.org/schemas/3
Annotations

The total volume of water pumped into the borehole during
this step
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType
Type diggs:VolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumeUomEnumType optional
The unit of measure for volume or cubic measure.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd
Complex Type diggs:LugeonStepType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractObjectType. Adds elements for lugeon step type definition.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeExtProcedures_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_lugeonStepNumberExtProcedures_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_pressureExtProcedures_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_avgFlowRateExtProcedures_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_coeffPermeabilityExtProcedures_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_lugeonValueExtProcedures_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_lugeonStepTimeSeriesExtProcedures_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_totalElapsedTimeExtProcedures_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_totalVolumeWater
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:avgFlowRate, diggs:coeffPermeability, diggs:lugeonStepNumber, diggs:lugeonStepTimeSeries, diggs:lugeonValue, diggs:pressure, diggs:remark, diggs:status, diggs:totalElapsedTime, diggs:totalVolumeWater, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd
