Element diggs:LinearSpatialReferenceSystemType / diggs:lrm
Namespace http://diggsml.org/schemas/3
Annotations

The lrm property.

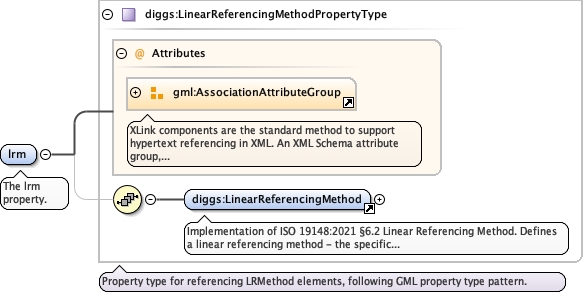

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupLinearReferencing_xsd_Element_diggs_LinearReferencingMethod.tmp#http___diggsml.org_schemas_3_LinearReferencingMethodLinearReferencing_xsd_Complex_Type_diggs_LinearReferencingMethodPropertyType.tmp#LinearReferencingMethodPropertyType
Type diggs:LinearReferencingMethodPropertyType
Properties
content complex
Model
Children diggs:LinearReferencingMethod
Instance

<diggs:lrm xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:LinearReferencingMethod gml:id="">{1,1}</diggs:LinearReferencingMethod>
</diggs:lrm>
Attributes
QName Type Fixed Use Annotation
nilReason gml:NilReasonType optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="lrm" type="diggs:LinearReferencingMethodPropertyType">
  <annotation>
    <documentation>The lrm property.</documentation>
  </annotation>
</element>
Element diggs:LinearSpatialReferenceSystemType / diggs:referent
Namespace http://diggsml.org/schemas/3
Annotations

The referent used as the origin when the LRMethod
is of type "relative".

Required when the LRMethod type is "relative", optional otherwise.

Example: For a "Depth Below Ground Surface" system, this would
reference the ground surface referent on the LinearElement.

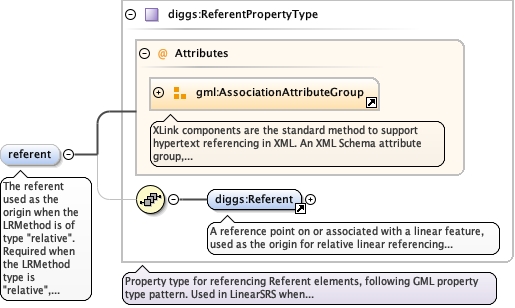

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupLinearReferencing_xsd_Element_diggs_Referent.tmp#ReferentLinearReferencing_xsd_Complex_Type_diggs_ReferentPropertyType.tmp#ReferentPropertyType
Type diggs:ReferentPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:Referent
Instance

<diggs:referent xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Referent gml:id="">{1,1}</diggs:Referent>
</diggs:referent>
Attributes
QName Type Fixed Use Annotation
nilReason gml:NilReasonType optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="referent" type="diggs:ReferentPropertyType" minOccurs="0">
  <annotation>
    <documentation>The referent used as the origin when the LRMethod is of type "relative". Required when the LRMethod type is "relative", optional otherwise. Example: For a "Depth Below Ground Surface" system, this would reference the ground surface referent on the LinearElement.</documentation>
  </annotation>
</element>
Complex Type diggs:LinearSpatialReferenceSystemType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on IdentifiedObjectType. Adds elements for linear spatial reference system type definition.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Complex_Type_gml_DefinitionBaseType.tmp#DefinitionBaseTypegml3_2Profile_diggs_xsd_Element_gml_remarks.tmp#remarksgml3_2Profile_diggs_xsd_Complex_Type_gml_DefinitionType.tmp#DefinitionTypegml3_2Profile_diggs_xsd_Complex_Type_gml_IdentifiedObjectType.tmp#IdentifiedObjectTypeglrProfile_diggs_xsd_Element_glr_linearElement.tmp#linearElementLinearReferencing_xsd_Complex_Type_diggs_LinearSpatialReferenceSystemType.tmp#LinearSpatialReferenceSystemType_lrmglrProfile_diggs_xsd_Element_glr_lrm.tmp#lrmLinearReferencing_xsd_Complex_Type_diggs_LinearSpatialReferenceSystemType.tmp#LinearSpatialReferenceSystemType_referentLinearReferencing_xsd_Element_diggs_linearReferencingMethodUncertainty.tmp#linearReferencingMethodUncertainty
Type extension of gml:IdentifiedObjectType
Type hierarchy
Used by
Model
Children diggs:linearReferencingMethodUncertainty, diggs:lrm, diggs:referent, glr:linearElement, glr:lrm, gml:description, gml:descriptionReference, gml:identifier, gml:name, gml:remarks
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="LinearSpatialReferenceSystemType">
  <annotation>
    <documentation>Extended type based on IdentifiedObjectType. Adds elements for linear spatial reference system type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="gml:IdentifiedObjectType">
      <sequence>
        <element ref="glr:linearElement"/>
        <choice>
          <element name="lrm" type="diggs:LinearReferencingMethodPropertyType">
            <annotation>
              <documentation>The lrm property.</documentation>
            </annotation>
          </element>
          <element ref="glr:lrm"/>
        </choice>
        <element name="referent" type="diggs:ReferentPropertyType" minOccurs="0">
          <annotation>
            <documentation>The referent used as the origin when the LRMethod is of type "relative". Required when the LRMethod type is "relative", optional otherwise. Example: For a "Depth Below Ground Surface" system, this would reference the ground surface referent on the LinearElement.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" ref="diggs:linearReferencingMethodUncertainty">
          <annotation>
            <documentation>Provides accuracy value (usually a length measure) for the location (geometry) elements that use this linear reference system for their SRS. DEPRECATED Uncertainties should be reported within the LinearExtent element used by this LRS.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
