Element diggs:GroutingActivitySpecificationType / diggs:constructionSpecification
Namespace http://diggsml.org/schemas/3
Annotations

Property type containing specifications for the grouting
activity. A grouting activity can have more than one
constructionSpecification that would be relevant to one or more
boreholes or soundings.

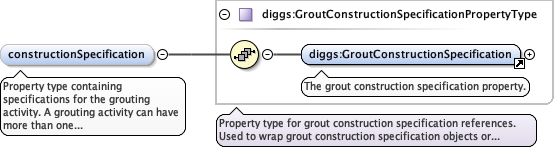

Diagram
DiagramGrouting_xsd_Element_diggs_GroutConstructionSpecification.tmp#GroutConstructionSpecificationGrouting_xsd_Complex_Type_diggs_GroutConstructionSpecificationPropertyType.tmp#GroutConstructionSpecificationPropertyType
Type diggs:GroutConstructionSpecificationPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
mixed false
Model
Children diggs:GroutConstructionSpecification
Instance

<diggs:constructionSpecification xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:GroutConstructionSpecification gml:id="">{1,1}</diggs:GroutConstructionSpecification>
</diggs:constructionSpecification>
Source

<element minOccurs="0" name="constructionSpecification" type="diggs:GroutConstructionSpecificationPropertyType" maxOccurs="1">
  <annotation>
    <documentation>Property type containing specifications for the grouting activity. A grouting activity can have more than one constructionSpecification that would be relevant to one or more boreholes or soundings.</documentation>
  </annotation>
</element>
Element diggs:GroutingActivitySpecificationType / diggs:terminationCriteria
Namespace http://diggsml.org/schemas/3
Annotations

Property type containing specifications for conditions
that require termination of grout injection

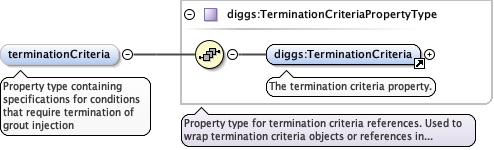

Diagram
DiagramGrouting_xsd_Element_diggs_TerminationCriteria.tmp#TerminationCriteriaGrouting_xsd_Complex_Type_diggs_TerminationCriteriaPropertyType.tmp#TerminationCriteriaPropertyType
Type diggs:TerminationCriteriaPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:TerminationCriteria
Instance

<diggs:terminationCriteria xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:TerminationCriteria gml:id="">{1,1}</diggs:TerminationCriteria>
</diggs:terminationCriteria>
Source

<element minOccurs="0" name="terminationCriteria" type="diggs:TerminationCriteriaPropertyType" maxOccurs="1">
  <annotation>
    <documentation>Property type containing specifications for conditions that require termination of grout injection</documentation>
  </annotation>
</element>
Complex Type diggs:GroutingActivitySpecificationType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractProgramSpecificationType. Adds elements for grouting activity specification type definition.

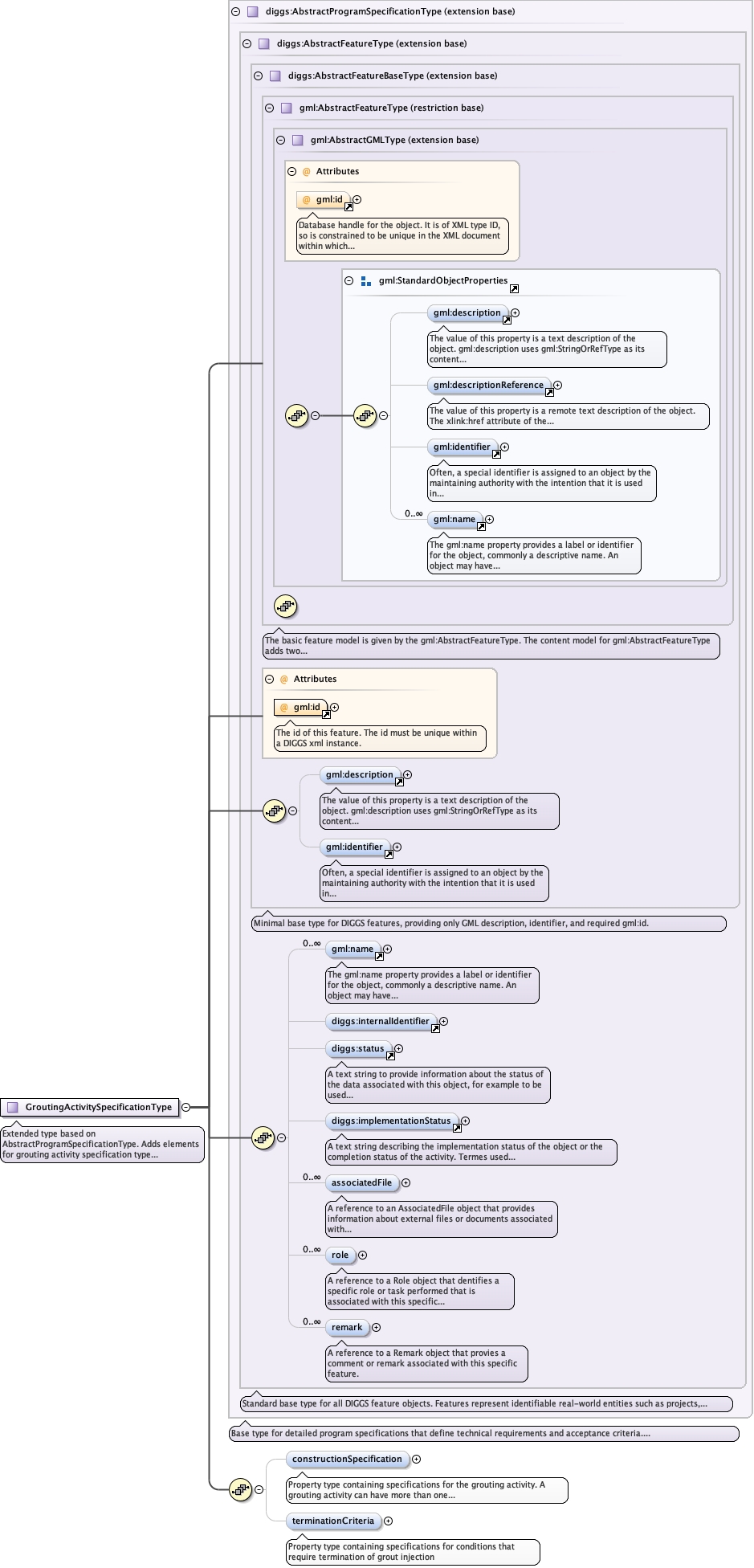

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramSpecificationType.tmp#AbstractProgramSpecificationTypeGrouting_xsd_Complex_Type_diggs_GroutingActivitySpecificationType.tmp#GroutingActivitySpecificationType_constructionSpecificationGrouting_xsd_Complex_Type_diggs_GroutingActivitySpecificationType.tmp#GroutingActivitySpecificationType_terminationCriteria
Type extension of diggs:AbstractProgramSpecificationType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:constructionSpecification, diggs:implementationStatus, diggs:internalIdentifier, diggs:remark, diggs:role, diggs:status, diggs:terminationCriteria, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="GroutingActivitySpecificationType">
  <annotation>
    <documentation>Extended type based on AbstractProgramSpecificationType. Adds elements for grouting activity specification type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractProgramSpecificationType">
      <sequence>
        <element minOccurs="0" name="constructionSpecification" type="diggs:GroutConstructionSpecificationPropertyType" maxOccurs="1">
          <annotation>
            <documentation>Property type containing specifications for the grouting activity. A grouting activity can have more than one constructionSpecification that would be relevant to one or more boreholes or soundings.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="terminationCriteria" type="diggs:TerminationCriteriaPropertyType" maxOccurs="1">
          <annotation>
            <documentation>Property type containing specifications for conditions that require termination of grout injection</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
