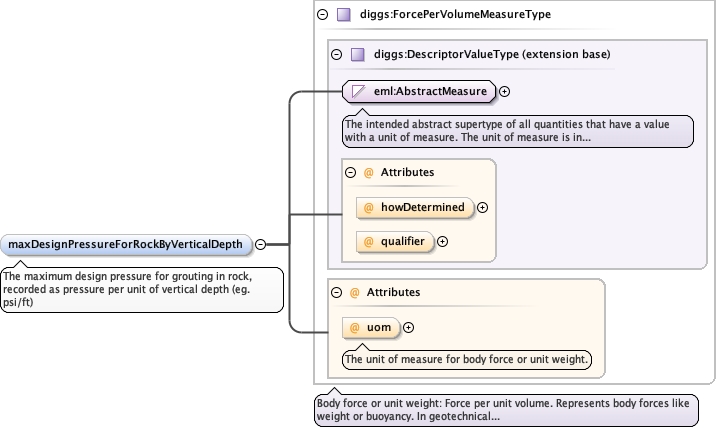

Element diggs:GroutConstructionSpecificationType / diggs:maxDesignPressureForRockByVerticalDepth
Namespace http://diggsml.org/schemas/3
Annotations

The maximum design pressure for grouting in rock,
recorded as pressure per unit of vertical depth (eg. psi/ft)
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForcePerVolumeMeasureType.tmp#ForcePerVolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForcePerVolumeMeasureType.tmp#ForcePerVolumeMeasureType
Type diggs:ForcePerVolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForcePerVolumeUomEnumType optional
The unit of measure for body force or unit weight.
Source

<element name="maxDesignPressureForRockByVerticalDepth" type="diggs:ForcePerVolumeMeasureType" minOccurs="0">
  <annotation>
    <documentation>The maximum design pressure for grouting in rock, recorded as pressure per unit of vertical depth (eg. psi/ft)</documentation>
  </annotation>
</element>
Element diggs:GroutConstructionSpecificationType / diggs:maxDesignPressureForSoilByVerticalDepth
Namespace http://diggsml.org/schemas/3
Annotations

The maximum design pressure for grouting in soil,
recorded as pressure per unit of vertical depth (eg. psi/ft)
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForcePerVolumeMeasureType.tmp#ForcePerVolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForcePerVolumeMeasureType.tmp#ForcePerVolumeMeasureType
Type diggs:ForcePerVolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForcePerVolumeUomEnumType optional
The unit of measure for body force or unit weight.
Source

<element name="maxDesignPressureForSoilByVerticalDepth" type="diggs:ForcePerVolumeMeasureType" minOccurs="0">
  <annotation>
    <documentation>The maximum design pressure for grouting in soil, recorded as pressure per unit of vertical depth (eg. psi/ft)</documentation>
  </annotation>
</element>
Element diggs:GroutConstructionSpecificationType / diggs:depthDependentGroutConstructionCriteria
Namespace http://diggsml.org/schemas/3
Annotations

The depth dependent grout construction criteria property.
Diagram
DiagramGrouting_xsd_Element_diggs_DepthDependentGroutConstructionCriteria.tmp#DepthDependentGroutConstructionCriteriaGrouting_xsd_Complex_Type_diggs_DepthDependentGroutConstructionCriteriaPropertyType.tmp#DepthDependentGroutConstructionCriteriaPropertyType
Type diggs:DepthDependentGroutConstructionCriteriaPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:DepthDependentGroutConstructionCriteria
Instance

<diggs:depthDependentGroutConstructionCriteria xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:DepthDependentGroutConstructionCriteria owns="false">{1,1}</diggs:DepthDependentGroutConstructionCriteria>
</diggs:depthDependentGroutConstructionCriteria>
Source

<element maxOccurs="unbounded" minOccurs="0" name="depthDependentGroutConstructionCriteria" type="diggs:DepthDependentGroutConstructionCriteriaPropertyType">
  <annotation>
    <documentation>The depth dependent grout construction criteria property.</documentation>
  </annotation>
</element>

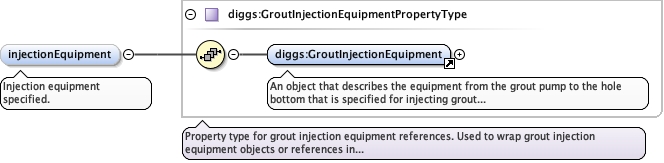

Element diggs:GroutConstructionSpecificationType / diggs:injectionEquipment
Namespace http://diggsml.org/schemas/3
Annotations

Injection equipment specified.
Diagram
DiagramGrouting_xsd_Element_diggs_GroutInjectionEquipment.tmp#GroutInjectionEquipmentGrouting_xsd_Complex_Type_diggs_GroutInjectionEquipmentPropertyType.tmp#GroutInjectionEquipmentPropertyType
Type diggs:GroutInjectionEquipmentPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:GroutInjectionEquipment
Instance

<diggs:injectionEquipment xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:GroutInjectionEquipment gml:id="">{1,1}</diggs:GroutInjectionEquipment>
</diggs:injectionEquipment>
Source

<element maxOccurs="1" minOccurs="0" name="injectionEquipment" type="diggs:GroutInjectionEquipmentPropertyType">
  <annotation>
    <documentation>Injection equipment specified.</documentation>
  </annotation>
</element>

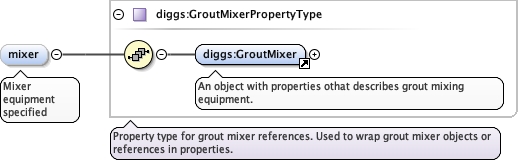

Element diggs:GroutConstructionSpecificationType / diggs:mixer
Namespace http://diggsml.org/schemas/3
Annotations

Mixer equipment specified
Diagram
DiagramGrouting_xsd_Element_diggs_GroutMixer.tmp#GroutMixerGrouting_xsd_Complex_Type_diggs_GroutMixerPropertyType.tmp#GroutMixerPropertyType
Type diggs:GroutMixerPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:GroutMixer
Instance

<diggs:mixer xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:GroutMixer gml:id="">{1,1}</diggs:GroutMixer>
</diggs:mixer>
Source

<element maxOccurs="1" minOccurs="0" name="mixer" type="diggs:GroutMixerPropertyType">
  <annotation>
    <documentation>Mixer equipment specified</documentation>
  </annotation>
</element>

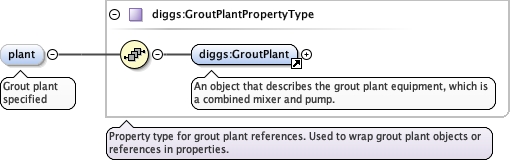

Element diggs:GroutConstructionSpecificationType / diggs:plant
Namespace http://diggsml.org/schemas/3
Annotations

Grout plant specified
Diagram
DiagramGrouting_xsd_Element_diggs_GroutPlant.tmp#GroutPlantGrouting_xsd_Complex_Type_diggs_GroutPlantPropertyType.tmp#GroutPlantPropertyType
Type diggs:GroutPlantPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:GroutPlant
Instance

<diggs:plant xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:GroutPlant gml:id="">{1,1}</diggs:GroutPlant>
</diggs:plant>
Source

<element maxOccurs="1" minOccurs="0" name="plant" type="diggs:GroutPlantPropertyType">
  <annotation>
    <documentation>Grout plant specified</documentation>
  </annotation>
</element>

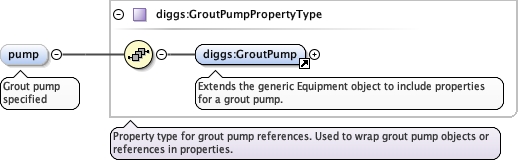

Element diggs:GroutConstructionSpecificationType / diggs:pump
Namespace http://diggsml.org/schemas/3
Annotations

Grout pump specified
Diagram
DiagramGrouting_xsd_Element_diggs_GroutPump.tmp#GroutPumpGrouting_xsd_Complex_Type_diggs_GroutPumpPropertyType.tmp#GroutPumpPropertyType
Type diggs:GroutPumpPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:GroutPump
Instance

<diggs:pump xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:GroutPump gml:id="">{1,1}</diggs:GroutPump>
</diggs:pump>
Source

<element maxOccurs="1" minOccurs="0" name="pump" type="diggs:GroutPumpPropertyType">
  <annotation>
    <documentation>Grout pump specified</documentation>
  </annotation>
</element>

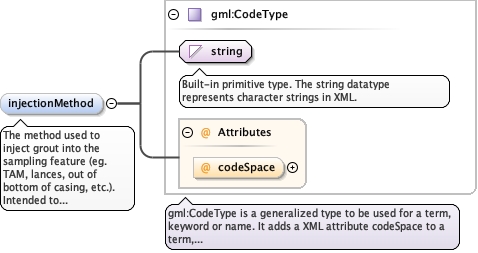

Element diggs:GroutConstructionSpecificationType / diggs:injectionMethod
Namespace http://diggsml.org/schemas/3
Annotations

The method used to inject grout into the sampling
feature (eg. TAM, lances, out of bottom of casing, etc.).
Intended to come from a controlled list of
terms.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="injectionMethod" maxOccurs="1" type="gml:CodeType">
  <annotation>
    <documentation>The method used to inject grout into the sampling feature (eg. TAM, lances, out of bottom of casing, etc.). Intended to come from a controlled list of terms.</documentation>
  </annotation>
</element>

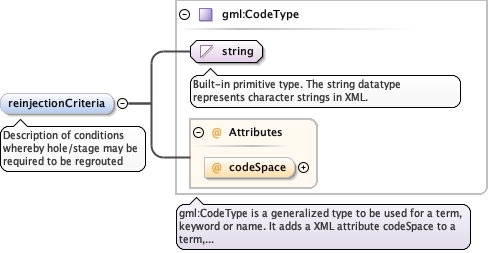

Element diggs:GroutConstructionSpecificationType / diggs:reinjectionCriteria
Namespace http://diggsml.org/schemas/3
Annotations

Description of conditions whereby hole/stage may
be required to be regrouted
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="reinjectionCriteria" maxOccurs="unbounded" type="gml:CodeType">
  <annotation>
    <documentation>Description of conditions whereby hole/stage may be required to be regrouted</documentation>
  </annotation>
</element>
Element diggs:GroutConstructionSpecificationType / diggs:digitalRecordingRequired
Namespace http://diggsml.org/schemas/3
Annotations

Set to true here, grouting parameters are
required to be recorded digitally.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 1
fixed true
Source

<element minOccurs="1" name="digitalRecordingRequired" type="boolean" fixed="true">
  <annotation>
    <documentation>Set to true here, grouting parameters are required to be recorded digitally.</documentation>
  </annotation>
</element>

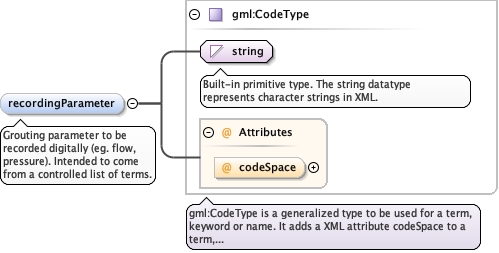

Element diggs:GroutConstructionSpecificationType / diggs:recordingParameter
Namespace http://diggsml.org/schemas/3
Annotations

Grouting parameter to be recorded
digitally (eg. flow, pressure). Intended to come
from a controlled list of terms.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element maxOccurs="unbounded" minOccurs="0" name="recordingParameter" type="gml:CodeType">
  <annotation>
    <documentation>Grouting parameter to be recorded digitally (eg. flow, pressure). Intended to come from a controlled list of terms.</documentation>
  </annotation>
</element>
Element diggs:GroutConstructionSpecificationType / diggs:digitalRecordingNotRequired
Namespace http://diggsml.org/schemas/3
Annotations

Set to true here, grouting parameters are
NOT required to be recorded
digitally.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 1
fixed true
Source

<element minOccurs="1" name="digitalRecordingNotRequired" type="boolean" fixed="true">
  <annotation>
    <documentation>Set to true here, grouting parameters are NOT required to be recorded digitally.</documentation>
  </annotation>
</element>

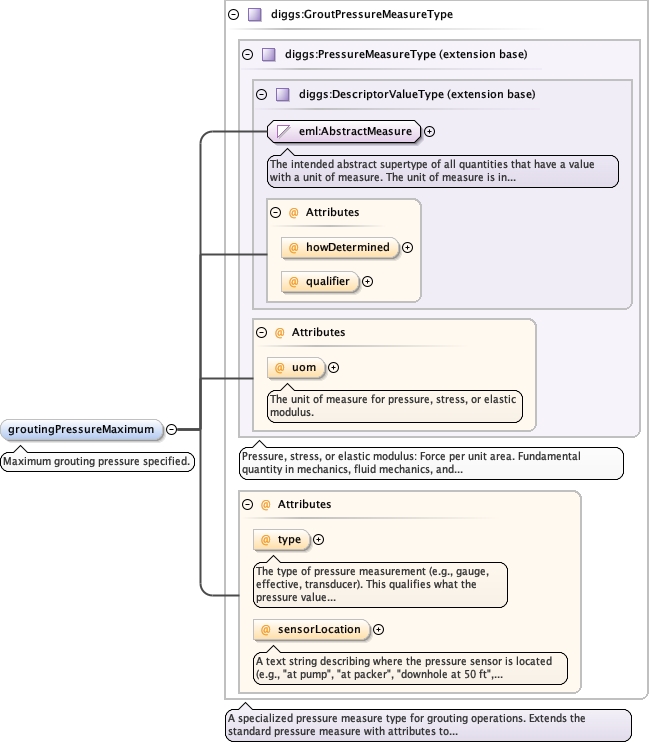

Element diggs:GroutConstructionSpecificationType / diggs:groutingPressureMaximum
Namespace http://diggsml.org/schemas/3
Annotations

Maximum grouting pressure
specified.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureTypeMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_typeMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_sensorLocationMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType
Type diggs:GroutPressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
sensorLocation string optional
A text string describing where the pressure sensor is located (e.g., "at pump", "at packer", "downhole at 50 ft", "surface manifold"). This is important because pressure can vary significantly between the pump and the point of injection.
type diggs:PressureTypeEnumType optional
The type of pressure measurement (e.g., gauge, effective, transducer). This qualifies what the pressure value represents in the grouting operation.
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element minOccurs="0" name="groutingPressureMaximum" type="diggs:GroutPressureMeasureType" maxOccurs="1">
  <annotation>
    <documentation>Maximum grouting pressure specified.</documentation>
  </annotation>
</element>

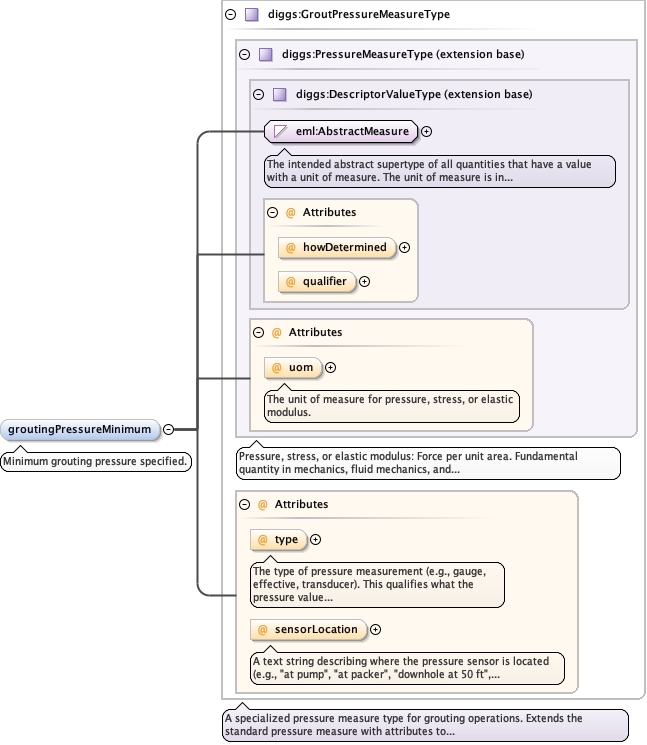

Element diggs:GroutConstructionSpecificationType / diggs:groutingPressureMinimum
Namespace http://diggsml.org/schemas/3
Annotations

Minimum grouting pressure
specified.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureTypeMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_typeMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_sensorLocationMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType
Type diggs:GroutPressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
sensorLocation string optional
A text string describing where the pressure sensor is located (e.g., "at pump", "at packer", "downhole at 50 ft", "surface manifold"). This is important because pressure can vary significantly between the pump and the point of injection.
type diggs:PressureTypeEnumType optional
The type of pressure measurement (e.g., gauge, effective, transducer). This qualifies what the pressure value represents in the grouting operation.
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element minOccurs="0" name="groutingPressureMinimum" type="diggs:GroutPressureMeasureType" maxOccurs="1">
  <annotation>
    <documentation>Minimum grouting pressure specified.</documentation>
  </annotation>
</element>

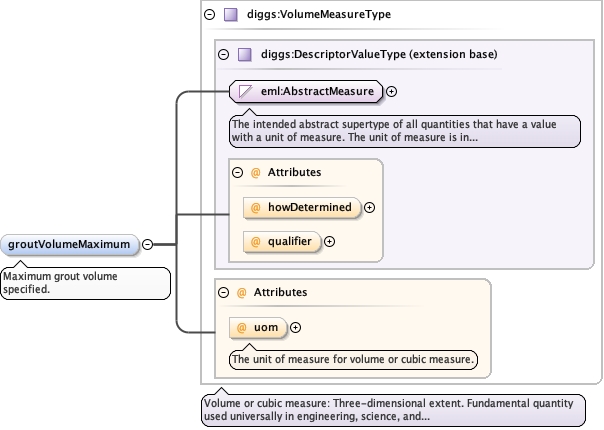

Element diggs:GroutConstructionSpecificationType / diggs:groutVolumeMaximum
Namespace http://diggsml.org/schemas/3
Annotations

Maximum grout volume specified.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType
Type diggs:VolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumeUomEnumType optional
The unit of measure for volume or cubic measure.
Source

<element minOccurs="0" name="groutVolumeMaximum" type="diggs:VolumeMeasureType">
  <annotation>
    <documentation>Maximum grout volume specified.</documentation>
  </annotation>
</element>
Element diggs:GroutConstructionSpecificationType / diggs:groutVolumeMinimum
Namespace http://diggsml.org/schemas/3
Annotations

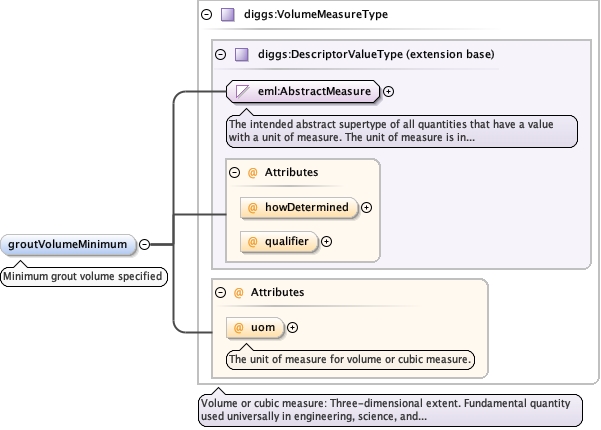

Minimum grout volume specified
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType
Type diggs:VolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumeUomEnumType optional
The unit of measure for volume or cubic measure.
Source

<element minOccurs="0" name="groutVolumeMinimum" type="diggs:VolumeMeasureType">
  <annotation>
    <documentation>Minimum grout volume specified</documentation>
  </annotation>
</element>
Element diggs:GroutConstructionSpecificationType / diggs:injectionRateMaximum
Namespace http://diggsml.org/schemas/3
Annotations

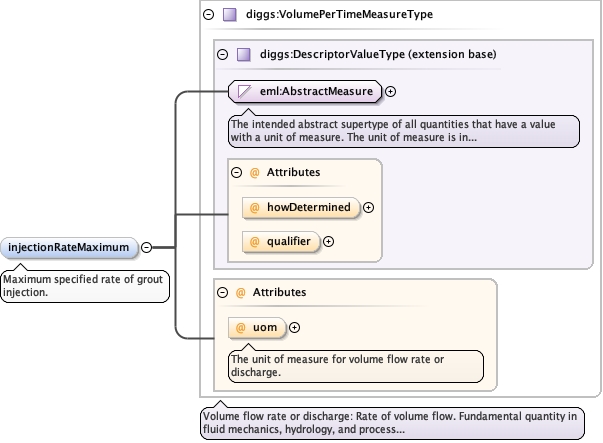

Maximum specified rate of grout
injection.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimeMeasureType.tmp#VolumePerTimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimeMeasureType.tmp#VolumePerTimeMeasureType
Type diggs:VolumePerTimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerTimeUomEnumType optional
The unit of measure for volume flow rate or discharge.
Source

<element minOccurs="0" name="injectionRateMaximum" type="diggs:VolumePerTimeMeasureType">
  <annotation>
    <documentation>Maximum specified rate of grout injection.</documentation>
  </annotation>
</element>
Element diggs:GroutConstructionSpecificationType / diggs:injectionRateMinimum
Namespace http://diggsml.org/schemas/3
Annotations

Minimum specified rate of grout
injection
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimeMeasureType.tmp#VolumePerTimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimeMeasureType.tmp#VolumePerTimeMeasureType
Type diggs:VolumePerTimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerTimeUomEnumType optional
The unit of measure for volume flow rate or discharge.
Source

<element minOccurs="0" name="injectionRateMinimum" type="diggs:VolumePerTimeMeasureType">
  <annotation>
    <documentation>Minimum specified rate of grout injection</documentation>
  </annotation>
</element>
Element diggs:GroutConstructionSpecificationType / diggs:pressureControlLogic
Namespace http://diggsml.org/schemas/3
Annotations

Property defining how grout injection is to be
controlled, either by constant flow or constant pressure.
From an enumerated list.
Diagram
DiagramGrouting_xsd_Simple_Type_diggs_pressureControlLogicEnumType.tmp#pressureControlLogicEnumType
Type diggs:pressureControlLogicEnumType
Properties
content simple
minOccurs 0
Facets
enumeration constant flow
constant flow - constant flow value.
enumeration constant pressure
constant pressure - constant pressure value.
Source

<element minOccurs="0" name="pressureControlLogic" type="diggs:pressureControlLogicEnumType">
  <annotation>
    <documentation>Property defining how grout injection is to be controlled, either by constant flow or constant pressure. From an enumerated list.</documentation>
  </annotation>
</element>
Element diggs:GroutConstructionSpecificationType / diggs:stageLengthMaximum
Namespace http://diggsml.org/schemas/3
Annotations

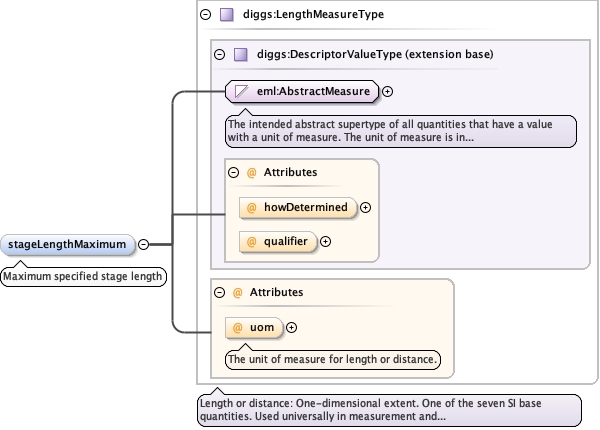

Maximum specified stage length
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="stageLengthMaximum" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Maximum specified stage length</documentation>
  </annotation>
</element>
Element diggs:GroutConstructionSpecificationType / diggs:stageLengthMinimum
Namespace http://diggsml.org/schemas/3
Annotations

Minimum specified stage length
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="stageLengthMinimum" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Minimum specified stage length</documentation>
  </annotation>
</element>
Complex Type diggs:GroutConstructionSpecificationType
Namespace http://diggsml.org/schemas/3
Annotations

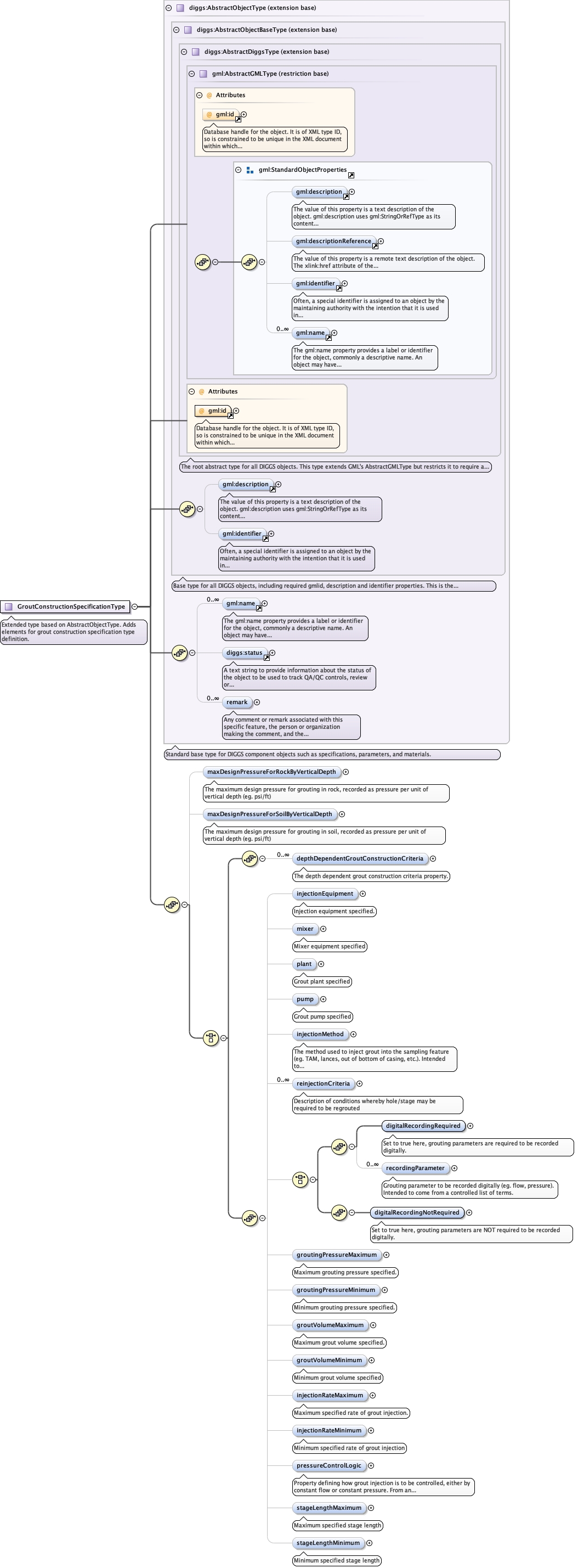

Extended type based on AbstractObjectType. Adds elements for grout construction specification type definition.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeGrouting_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_maxDesignPressureForRockByVerticalDepthGrouting_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_maxDesignPressureForSoilByVerticalDepthGrouting_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_depthDependentGroutConstructionCriteriaGrouting_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_injectionEquipmentGrouting_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_mixerGrouting_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_plantGrouting_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_pumpGrouting_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_injectionMethodGrouting_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_reinjectionCriteriaGrouting_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_digitalRecordingRequiredGrouting_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_recordingParameterGrouting_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_digitalRecordingNotRequiredGrouting_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_groutingPressureMaximumGrouting_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_groutingPressureMinimumGrouting_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_groutVolumeMaximumGrouting_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_groutVolumeMinimumGrouting_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_injectionRateMaximumGrouting_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_injectionRateMinimumGrouting_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_pressureControlLogicGrouting_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_stageLengthMaximumGrouting_xsd_Complex_Type_diggs_GroutConstructionSpecificationType.tmp#GroutConstructionSpecificationType_stageLengthMinimum
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:depthDependentGroutConstructionCriteria, diggs:digitalRecordingNotRequired, diggs:digitalRecordingRequired, diggs:groutVolumeMaximum, diggs:groutVolumeMinimum, diggs:groutingPressureMaximum, diggs:groutingPressureMinimum, diggs:injectionEquipment, diggs:injectionMethod, diggs:injectionRateMaximum, diggs:injectionRateMinimum, diggs:maxDesignPressureForRockByVerticalDepth, diggs:maxDesignPressureForSoilByVerticalDepth, diggs:mixer, diggs:plant, diggs:pressureControlLogic, diggs:pump, diggs:recordingParameter, diggs:reinjectionCriteria, diggs:remark, diggs:stageLengthMaximum, diggs:stageLengthMinimum, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="GroutConstructionSpecificationType">
  <annotation>
    <documentation>Extended type based on AbstractObjectType. Adds elements for grout construction specification type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element name="maxDesignPressureForRockByVerticalDepth" type="diggs:ForcePerVolumeMeasureType" minOccurs="0">
          <annotation>
            <documentation>The maximum design pressure for grouting in rock, recorded as pressure per unit of vertical depth (eg. psi/ft)</documentation>
          </annotation>
        </element>
        <element name="maxDesignPressureForSoilByVerticalDepth" type="diggs:ForcePerVolumeMeasureType" minOccurs="0">
          <annotation>
            <documentation>The maximum design pressure for grouting in soil, recorded as pressure per unit of vertical depth (eg. psi/ft)</documentation>
          </annotation>
        </element>
        <choice>
          <sequence>
            <element maxOccurs="unbounded" minOccurs="0" name="depthDependentGroutConstructionCriteria" type="diggs:DepthDependentGroutConstructionCriteriaPropertyType">
              <annotation>
                <documentation>The depth dependent grout construction criteria property.</documentation>
              </annotation>
            </element>
          </sequence>
          <sequence>
            <element maxOccurs="1" minOccurs="0" name="injectionEquipment" type="diggs:GroutInjectionEquipmentPropertyType">
              <annotation>
                <documentation>Injection equipment specified.</documentation>
              </annotation>
            </element>
            <element maxOccurs="1" minOccurs="0" name="mixer" type="diggs:GroutMixerPropertyType">
              <annotation>
                <documentation>Mixer equipment specified</documentation>
              </annotation>
            </element>
            <element maxOccurs="1" minOccurs="0" name="plant" type="diggs:GroutPlantPropertyType">
              <annotation>
                <documentation>Grout plant specified</documentation>
              </annotation>
            </element>
            <element maxOccurs="1" minOccurs="0" name="pump" type="diggs:GroutPumpPropertyType">
              <annotation>
                <documentation>Grout pump specified</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="injectionMethod" maxOccurs="1" type="gml:CodeType">
              <annotation>
                <documentation>The method used to inject grout into the sampling feature (eg. TAM, lances, out of bottom of casing, etc.). Intended to come from a controlled list of terms.</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="reinjectionCriteria" maxOccurs="unbounded" type="gml:CodeType">
              <annotation>
                <documentation>Description of conditions whereby hole/stage may be required to be regrouted</documentation>
              </annotation>
            </element>
            <choice minOccurs="0">
              <sequence>
                <element minOccurs="1" name="digitalRecordingRequired" type="boolean" fixed="true">
                  <annotation>
                    <documentation>Set to true here, grouting parameters are required to be recorded digitally.</documentation>
                  </annotation>
                </element>
                <element maxOccurs="unbounded" minOccurs="0" name="recordingParameter" type="gml:CodeType">
                  <annotation>
                    <documentation>Grouting parameter to be recorded digitally (eg. flow, pressure). Intended to come from a controlled list of terms.</documentation>
                  </annotation>
                </element>
              </sequence>
              <sequence>
                <element minOccurs="1" name="digitalRecordingNotRequired" type="boolean" fixed="true">
                  <annotation>
                    <documentation>Set to true here, grouting parameters are NOT required to be recorded digitally.</documentation>
                  </annotation>
                </element>
              </sequence>
            </choice>
            <element minOccurs="0" name="groutingPressureMaximum" type="diggs:GroutPressureMeasureType" maxOccurs="1">
              <annotation>
                <documentation>Maximum grouting pressure specified.</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="groutingPressureMinimum" type="diggs:GroutPressureMeasureType" maxOccurs="1">
              <annotation>
                <documentation>Minimum grouting pressure specified.</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="groutVolumeMaximum" type="diggs:VolumeMeasureType">
              <annotation>
                <documentation>Maximum grout volume specified.</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="groutVolumeMinimum" type="diggs:VolumeMeasureType">
              <annotation>
                <documentation>Minimum grout volume specified</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="injectionRateMaximum" type="diggs:VolumePerTimeMeasureType">
              <annotation>
                <documentation>Maximum specified rate of grout injection.</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="injectionRateMinimum" type="diggs:VolumePerTimeMeasureType">
              <annotation>
                <documentation>Minimum specified rate of grout injection</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="pressureControlLogic" type="diggs:pressureControlLogicEnumType">
              <annotation>
                <documentation>Property defining how grout injection is to be controlled, either by constant flow or constant pressure. From an enumerated list.</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="stageLengthMaximum" type="diggs:LengthMeasureType">
              <annotation>
                <documentation>Maximum specified stage length</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="stageLengthMinimum" type="diggs:LengthMeasureType">
              <annotation>
                <documentation>Minimum specified stage length</documentation>
              </annotation>
            </element>
          </sequence>
        </choice>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
