Element diggs:FluidAdditiveType / diggs:additiveType
Namespace http://diggsml.org/schemas/3
Annotations

A term, intended to come from a controlled list,
identifying the type of material added to the fluid.

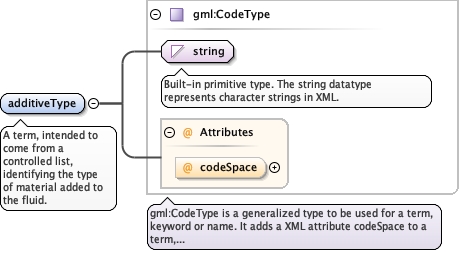

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="additiveType" type="gml:CodeType">
  <annotation>
    <documentation>A term, intended to come from a controlled list, identifying the type of material added to the fluid.</documentation>
  </annotation>
</element>
Element diggs:FluidAdditiveType / diggs:additionEvent
Namespace http://diggsml.org/schemas/3
Annotations

The addition event property.

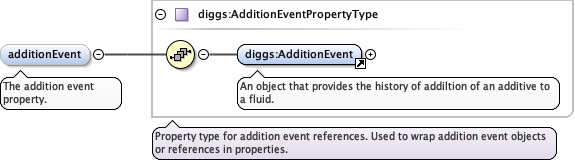

Diagram
DiagramGrouting_xsd_Element_diggs_AdditionEvent.tmp#AdditionEventGrouting_xsd_Complex_Type_diggs_AdditionEventPropertyType.tmp#AdditionEventPropertyType
Type diggs:AdditionEventPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AdditionEvent
Instance

<diggs:additionEvent xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AdditionEvent gml:id="">{1,1}</diggs:AdditionEvent>
</diggs:additionEvent>
Source

<element maxOccurs="unbounded" minOccurs="0" name="additionEvent" type="diggs:AdditionEventPropertyType">
  <annotation>
    <documentation>The addition event property.</documentation>
  </annotation>
</element>
Complex Type diggs:FluidAdditiveType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractObjectType. Adds elements for fluid additive type definition.

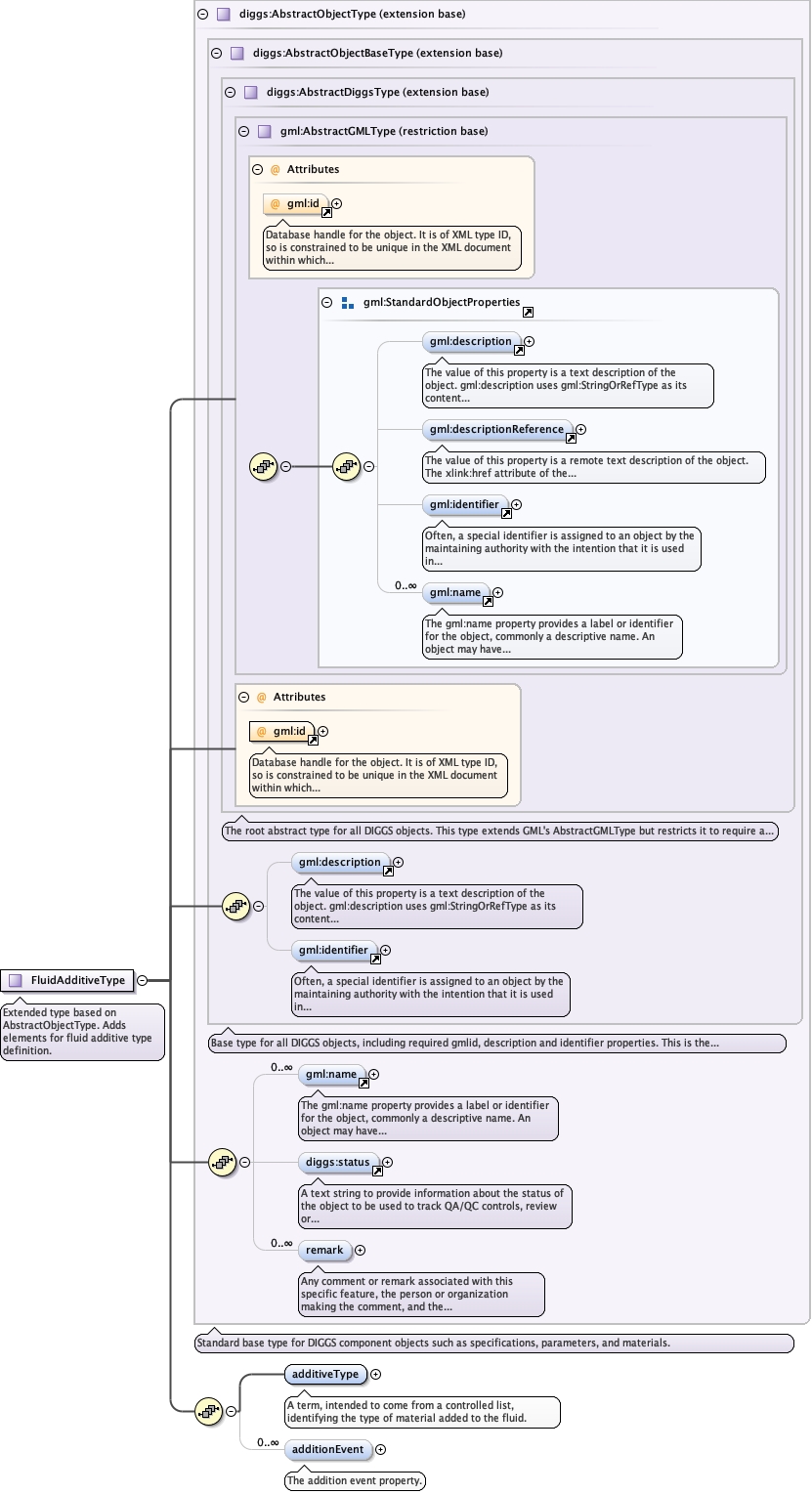

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeGrouting_xsd_Complex_Type_diggs_FluidAdditiveType.tmp#FluidAdditiveType_additiveTypeGrouting_xsd_Complex_Type_diggs_FluidAdditiveType.tmp#FluidAdditiveType_additionEvent
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:additionEvent, diggs:additiveType, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="FluidAdditiveType">
  <annotation>
    <documentation>Extended type based on AbstractObjectType. Adds elements for fluid additive type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element name="additiveType" type="gml:CodeType">
          <annotation>
            <documentation>A term, intended to come from a controlled list, identifying the type of material added to the fluid.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="additionEvent" type="diggs:AdditionEventPropertyType">
          <annotation>
            <documentation>The addition event property.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
