Element diggs:AdditionEvent
Namespace http://diggsml.org/schemas/3
Annotations

The time and the amount of additive added to the fluid stream during jet
grouting or deep soil mixing.

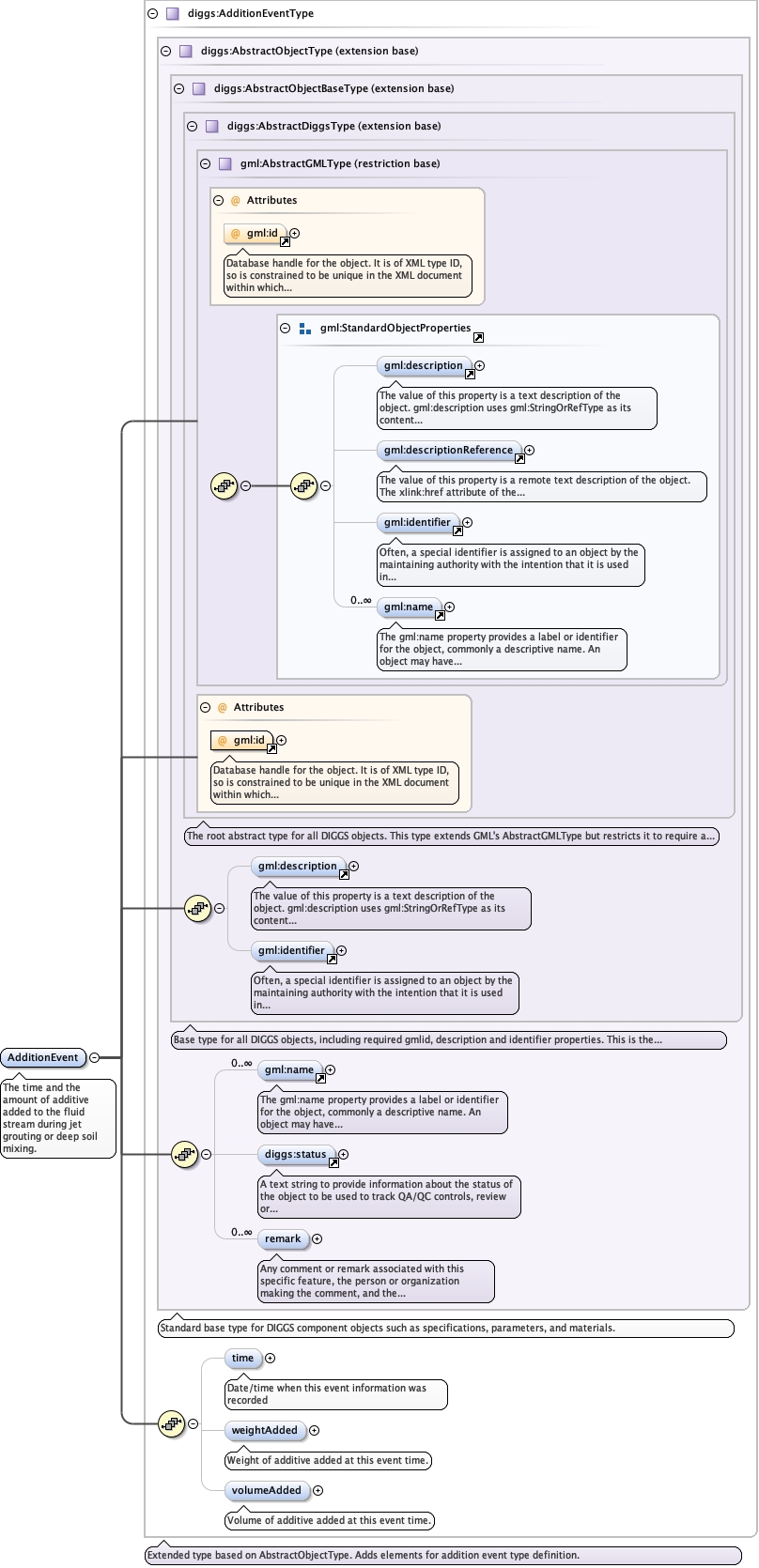

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeGrouting_xsd_Complex_Type_diggs_AdditionEventType.tmp#AdditionEventType_timeGrouting_xsd_Complex_Type_diggs_AdditionEventType.tmp#AdditionEventType_weightAddedGrouting_xsd_Complex_Type_diggs_AdditionEventType.tmp#AdditionEventType_volumeAddedGrouting_xsd_Complex_Type_diggs_AdditionEventType.tmp#AdditionEventType
Type diggs:AdditionEventType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:remark, diggs:status, diggs:time, diggs:volumeAdded, diggs:weightAdded, gml:description, gml:identifier, gml:name
Instance

<diggs:AdditionEvent gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:time>{0,1}</diggs:time>
  <diggs:weightAdded howDetermined="" qualifier="" uom="">{0,1}</diggs:weightAdded>
  <diggs:volumeAdded howDetermined="" qualifier="" uom="">{0,1}</diggs:volumeAdded>
</diggs:AdditionEvent>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="AdditionEvent" type="diggs:AdditionEventType">
  <annotation>
    <documentation>The time and the amount of additive added to the fluid stream during jet grouting or deep soil mixing.</documentation>
  </annotation>
</element>
