Element diggs:WirelineLogType / diggs:geophysicalFieldSurveyRef
Namespace http://diggsml.org/schemas/3
Annotations

A reference to the gml:ID, reported in the xlink:href
attribute, of the measurement that contains the results obtained
during data acquisition and that serves as input into the processing
steps that produce the results of this associated
measurement

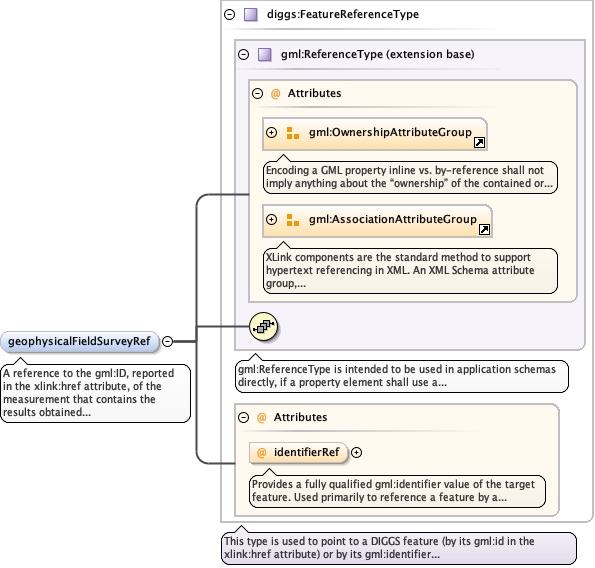

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_ReferenceType.tmp#ReferenceTypeCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType_identifierRefCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType
Type diggs:FeatureReferenceType
Type hierarchy
Properties
content complex
minOccurs 0
Model
Attributes
QName Type Fixed Default Use Annotation
identifierRef diggs:IdentifierReferenceType optional
Provides a fully qualified gml:identifier value of the target
feature. Used primarily to reference a feature by a globally unique
identifier as opposed to the gml:id
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element minOccurs="0" name="geophysicalFieldSurveyRef" type="diggs:FeatureReferenceType">
  <annotation>
    <documentation>A reference to the gml:ID, reported in the xlink:href attribute, of the measurement that contains the results obtained during data acquisition and that serves as input into the processing steps that produce the results of this associated measurement</documentation>
  </annotation>
</element>
Element diggs:WirelineLogType / diggs:runNumber
Namespace http://diggsml.org/schemas/3
Annotations

Log run number. This should normally be a number; however
some legacy systems encode other information in this
value.

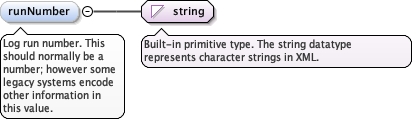

Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="runNumber" type="string">
  <annotation>
    <documentation>Log run number. This should normally be a number; however some legacy systems encode other information in this value.</documentation>
  </annotation>
</element>
Element diggs:WirelineLogType / diggs:bhaRunNumber
Namespace http://diggsml.org/schemas/3
Annotations

The bottom hole assembly run number associated with this
log.
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="bhaRunNumber" type="positiveInteger">
  <annotation>
    <documentation>The bottom hole assembly run number associated with this log.</documentation>
  </annotation>
</element>
Element diggs:WirelineLogType / diggs:logParameter
Namespace http://diggsml.org/schemas/3
Annotations

Log parameters that apply to the overall log.

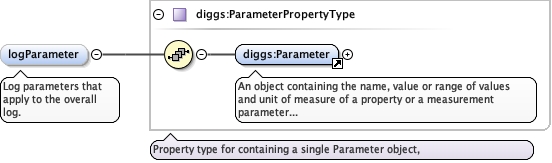

Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Parameter
Instance

<diggs:logParameter xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
</diggs:logParameter>
Source

<element maxOccurs="unbounded" minOccurs="0" name="logParameter" type="diggs:ParameterPropertyType">
  <annotation>
    <documentation>Log parameters that apply to the overall log.</documentation>
  </annotation>
</element>
Complex Type diggs:WirelineLogType
Namespace http://diggsml.org/schemas/3
Annotations

Base type for WirelineLog

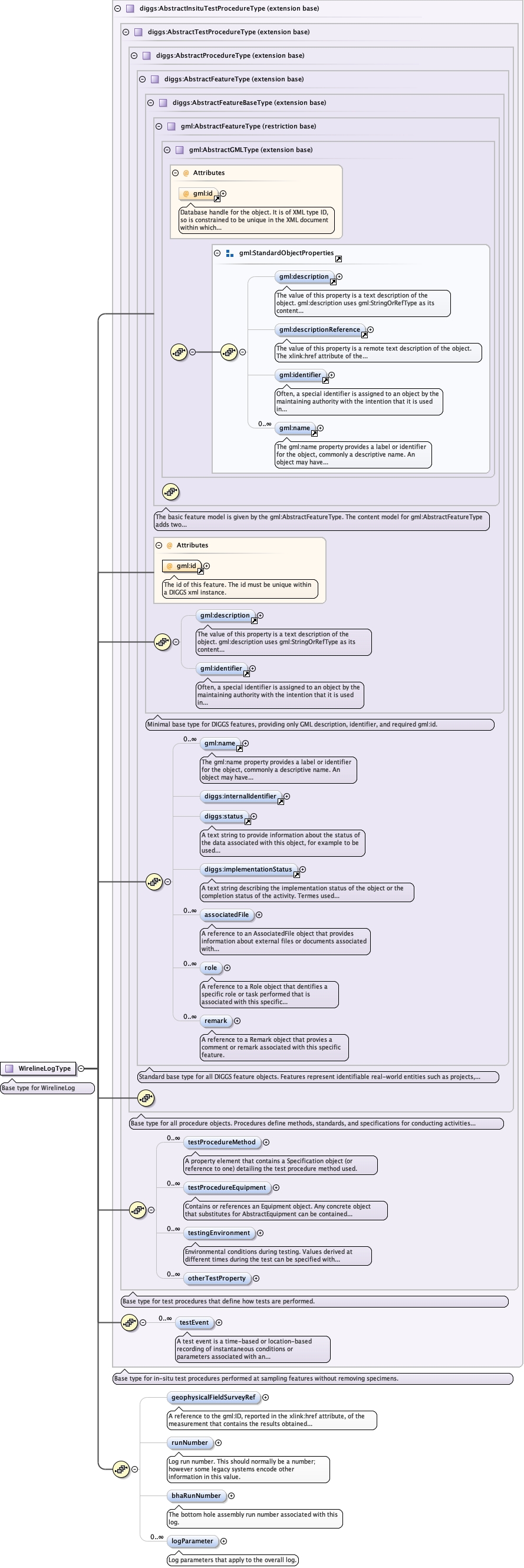

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeExtProcedures_xsd_Complex_Type_diggs_WirelineLogType.tmp#WirelineLogType_geophysicalFieldSurveyRefExtProcedures_xsd_Complex_Type_diggs_WirelineLogType.tmp#WirelineLogType_runNumberExtProcedures_xsd_Complex_Type_diggs_WirelineLogType.tmp#WirelineLogType_bhaRunNumberExtProcedures_xsd_Complex_Type_diggs_WirelineLogType.tmp#WirelineLogType_logParameter
Type extension of diggs:AbstractInsituTestProcedureType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:bhaRunNumber, diggs:geophysicalFieldSurveyRef, diggs:implementationStatus, diggs:internalIdentifier, diggs:logParameter, diggs:otherTestProperty, diggs:remark, diggs:role, diggs:runNumber, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="WirelineLogType">
  <annotation>
    <documentation>Base type for WirelineLog</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractInsituTestProcedureType">
      <sequence>
        <element minOccurs="0" name="geophysicalFieldSurveyRef" type="diggs:FeatureReferenceType">
          <annotation>
            <documentation>A reference to the gml:ID, reported in the xlink:href attribute, of the measurement that contains the results obtained during data acquisition and that serves as input into the processing steps that produce the results of this associated measurement</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="runNumber" type="string">
          <annotation>
            <documentation>Log run number. This should normally be a number; however some legacy systems encode other information in this value.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="bhaRunNumber" type="positiveInteger">
          <annotation>
            <documentation>The bottom hole assembly run number associated with this log.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="logParameter" type="diggs:ParameterPropertyType">
          <annotation>
            <documentation>Log parameters that apply to the overall log.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
