Element diggs:PressuremeterTestProcedureType / diggs:pressuremeterType
Namespace http://diggsml.org/schemas/3
Annotations

The type of pressuremeter.

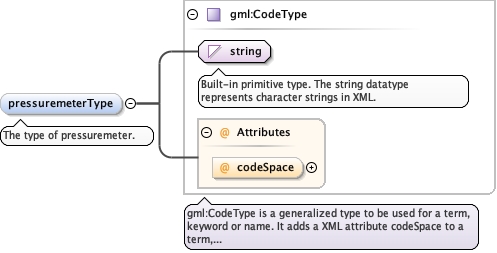

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="pressuremeterType" type="gml:CodeType" minOccurs="0">
  <annotation>
    <documentation>The type of pressuremeter.</documentation>
  </annotation>
</element>
Element diggs:PressuremeterTestProcedureType / diggs:pressuremeterDiameter
Namespace http://diggsml.org/schemas/3
Annotations

The uninflated diameter of the
pressuremeter.

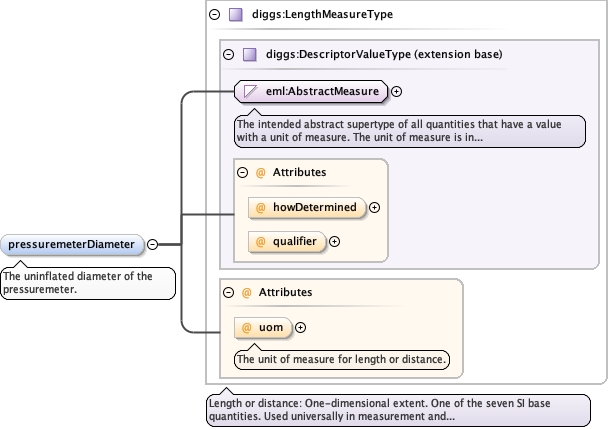

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="pressuremeterDiameter" type="diggs:LengthMeasureType" minOccurs="0">
  <annotation>
    <documentation>The uninflated diameter of the pressuremeter.</documentation>
  </annotation>
</element>
Element diggs:PressuremeterTestProcedureType / diggs:trial
Namespace http://diggsml.org/schemas/3
Annotations

The trial property.

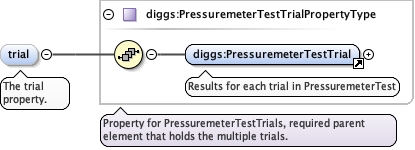

Diagram
DiagramExtProcedures_xsd_Element_diggs_PressuremeterTestTrial.tmp#PressuremeterTestTrialExtProcedures_xsd_Complex_Type_diggs_PressuremeterTestTrialPropertyType.tmp#PressuremeterTestTrialPropertyType
Type diggs:PressuremeterTestTrialPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:PressuremeterTestTrial
Instance

<diggs:trial xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PressuremeterTestTrial gml:id="">{1,1}</diggs:PressuremeterTestTrial>
</diggs:trial>
Source

<element name="trial" type="diggs:PressuremeterTestTrialPropertyType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>The trial property.</documentation>
  </annotation>
</element>
Complex Type diggs:PressuremeterTestProcedureType
Namespace http://diggsml.org/schemas/3
Annotations

Base type for PressuremeterTest
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeExtProcedures_xsd_Complex_Type_diggs_PressuremeterTestProcedureType.tmp#PressuremeterTestProcedureType_pressuremeterTypeExtProcedures_xsd_Complex_Type_diggs_PressuremeterTestProcedureType.tmp#PressuremeterTestProcedureType_pressuremeterDiameterExtProcedures_xsd_Complex_Type_diggs_PressuremeterTestProcedureType.tmp#PressuremeterTestProcedureType_trial
Type extension of diggs:AbstractInsituTestProcedureType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:pressuremeterDiameter, diggs:pressuremeterType, diggs:remark, diggs:role, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, diggs:trial, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="PressuremeterTestProcedureType">
  <annotation>
    <documentation>Base type for PressuremeterTest</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractInsituTestProcedureType">
      <sequence>
        <element name="pressuremeterType" type="gml:CodeType" minOccurs="0">
          <annotation>
            <documentation>The type of pressuremeter.</documentation>
          </annotation>
        </element>
        <element name="pressuremeterDiameter" type="diggs:LengthMeasureType" minOccurs="0">
          <annotation>
            <documentation>The uninflated diameter of the pressuremeter.</documentation>
          </annotation>
        </element>
        <element name="trial" type="diggs:PressuremeterTestTrialPropertyType" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <documentation>The trial property.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
