Schema documentation for component diggs:EnvironmentalScreeningTestType

Showing:

Annotations

Attributes

Diagrams

Model

Source

Used by

Complex Type diggs:EnvironmentalScreeningTestType

Namespace

http://diggsml.org/schemas/3

Annotations

Concrete type extending AbstractLaboratoryTestProcedureType. Provides implementation for environmental screening test type.

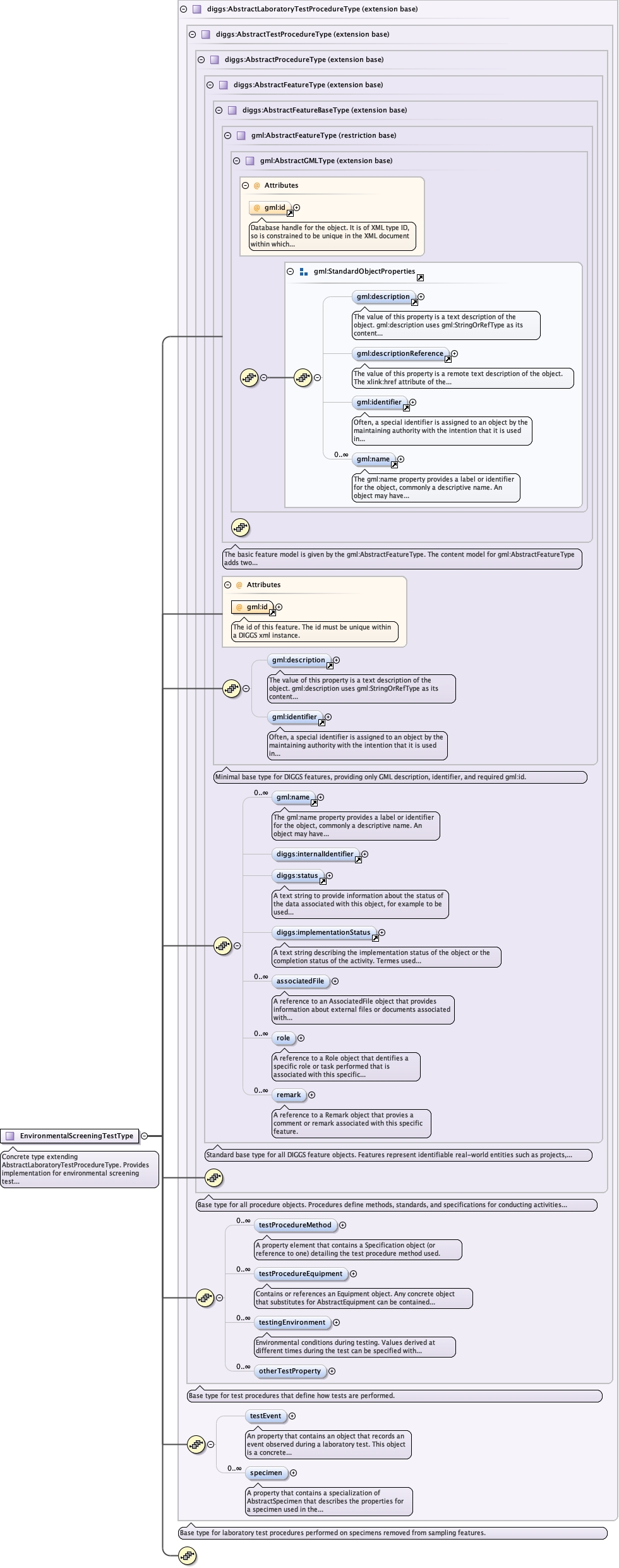

Diagram

Type

extension of diggs:AbstractLaboratoryTestProcedureType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - diggs:AbstractFeatureBaseType
    - diggs:AbstractFeatureType
      - diggs:AbstractProcedureType

        diggs:AbstractTestProcedureType

        diggs:AbstractLaboratoryTestProcedureType

        diggs:EnvironmentalScreeningTestType

Used by

Element

diggs:EnvironmentalScreeningTest

Model

gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:internalIdentifier{0,1} , diggs:status{0,1} , diggs:implementationStatus{0,1} , diggs:associatedFile* , diggs:role* , diggs:remark* , diggs:testProcedureMethod* , diggs:testProcedureEquipment* , diggs:testingEnvironment* , diggs:otherTestProperty* , diggs:testEvent{0,1} , diggs:specimen*

Children

diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:remark, diggs:role, diggs:specimen, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, gml:description, gml:identifier, gml:name

Attributes

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

Source

<complexType name="EnvironmentalScreeningTestType">
  <annotation>
    <documentation>Concrete type extending AbstractLaboratoryTestProcedureType. Provides implementation for environmental screening test type.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractLaboratoryTestProcedureType">
      <sequence/>
    </extension>
  </complexContent>
</complexType>
