Element diggs:OrientationSystemType / diggs:orientationFeatureType
Namespace http://diggsml.org/schemas/3
Annotations

Selection from an enumerated list defining the type of
planar feature whose orientations are being described in this system
(eg. faults, bedding)
Diagram
DiagramExtObservation_xsd_Simple_Type_diggs_OrientationObsPropertyEnumType.tmp#OrientationObsPropertyEnumType
Type diggs:OrientationObsPropertyEnumType
Properties
content simple
Source

<element name="orientationFeatureType" type="diggs:OrientationObsPropertyEnumType">
  <annotation>
    <documentation>Selection from an enumerated list defining the type of planar feature whose orientations are being described in this system (eg. faults, bedding)</documentation>
  </annotation>
</element>
Element diggs:OrientationSystemType / diggs:orientationFeatureObservation
Namespace http://diggsml.org/schemas/3
Annotations

The orientation feature observation property.
Diagram
DiagramExtObservation_xsd_Element_diggs_OrientationObservation.tmp#OrientationObservationExtObservation_xsd_Complex_Type_diggs_OrientationObservationPropertyType.tmp#OrientationObservationPropertyType
Type diggs:OrientationObservationPropertyType
Properties
content complex
maxOccurs unbounded
Model
Children diggs:OrientationObservation
Instance

<diggs:orientationFeatureObservation xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:OrientationObservation howDetermined="" gml:id="" stratumCode="">{1,1}</diggs:OrientationObservation>
</diggs:orientationFeatureObservation>
Source

<element maxOccurs="unbounded" name="orientationFeatureObservation" type="diggs:OrientationObservationPropertyType">
  <annotation>
    <documentation>The orientation feature observation property.</documentation>
  </annotation>
</element>
Complex Type diggs:OrientationSystemType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractObservationSystemType. Adds elements for orientation system type definition.

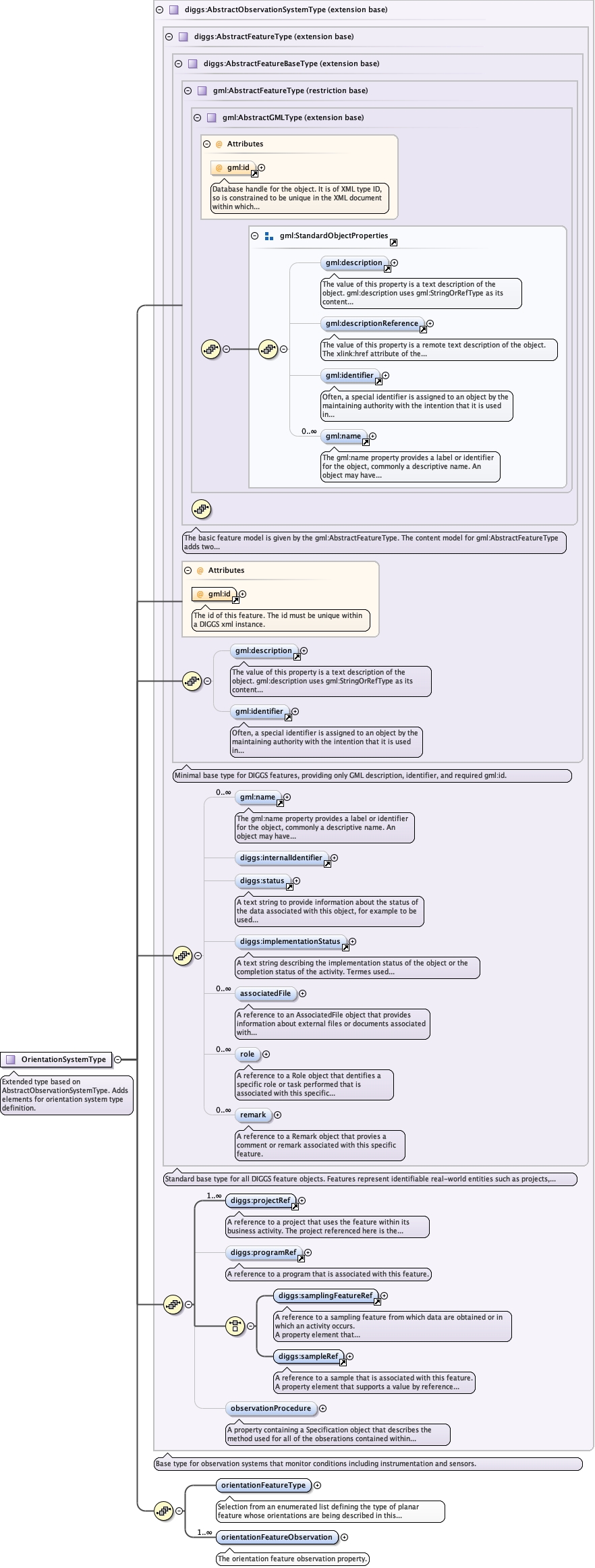

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeCommon_xsd_Element_diggs_projectRef.tmp#projectRefCommon_xsd_Element_diggs_programRef.tmp#programRefCommon_xsd_Element_diggs_samplingFeatureRef.tmp#samplingFeatureRefCommon_xsd_Element_diggs_sampleRef.tmp#sampleRefAbstractTypes_xsd_Complex_Type_diggs_AbstractObservationSystemType.tmp#AbstractObservationSystemType_observationProcedureAbstractTypes_xsd_Complex_Type_diggs_AbstractObservationSystemType.tmp#AbstractObservationSystemTypeExtObservation_xsd_Complex_Type_diggs_OrientationSystemType.tmp#OrientationSystemType_orientationFeatureTypeExtObservation_xsd_Complex_Type_diggs_OrientationSystemType.tmp#OrientationSystemType_orientationFeatureObservation
Type extension of diggs:AbstractObservationSystemType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:observationProcedure, diggs:orientationFeatureObservation, diggs:orientationFeatureType, diggs:programRef, diggs:projectRef, diggs:remark, diggs:role, diggs:sampleRef, diggs:samplingFeatureRef, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="OrientationSystemType">
  <annotation>
    <documentation>Extended type based on AbstractObservationSystemType. Adds elements for orientation system type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObservationSystemType">
      <sequence>
        <element name="orientationFeatureType" type="diggs:OrientationObsPropertyEnumType">
          <annotation>
            <documentation>Selection from an enumerated list defining the type of planar feature whose orientations are being described in this system (eg. faults, bedding)</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" name="orientationFeatureObservation" type="diggs:OrientationObservationPropertyType">
          <annotation>
            <documentation>The orientation feature observation property.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
